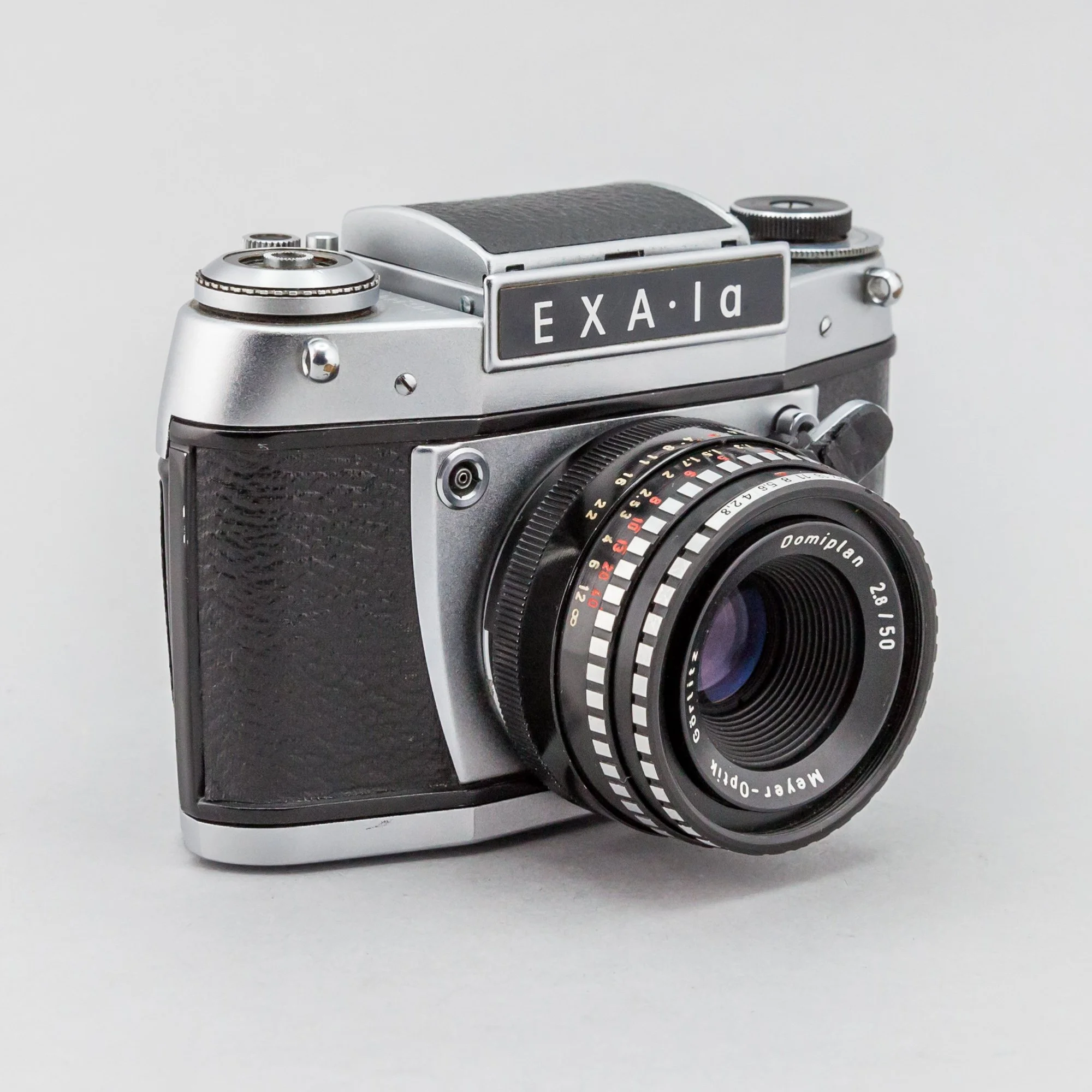

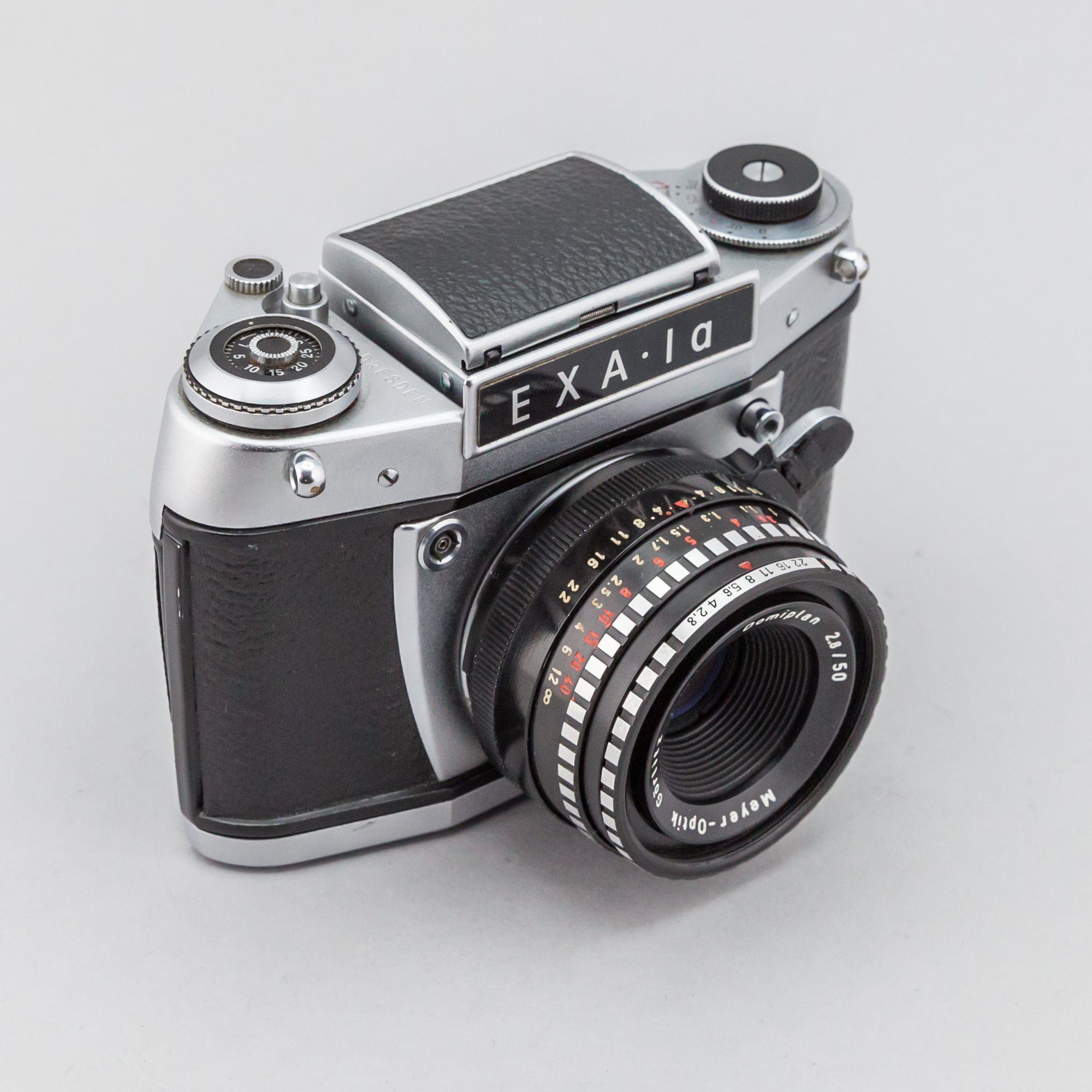

EXA 1 A

Germany 1964, brand Ihagee Kamerawerk AG Dresden, material metal, cm 13,5x8,5x9

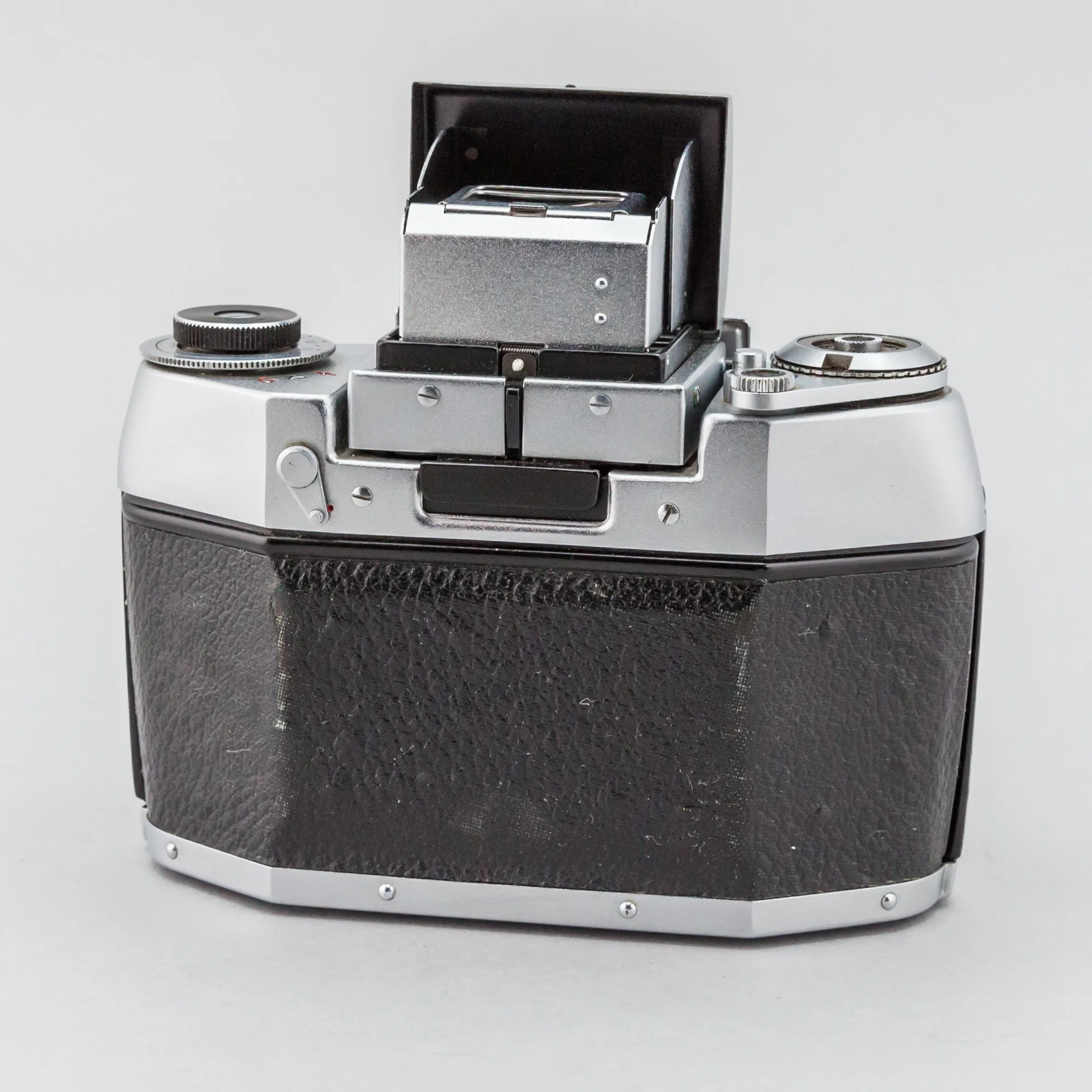

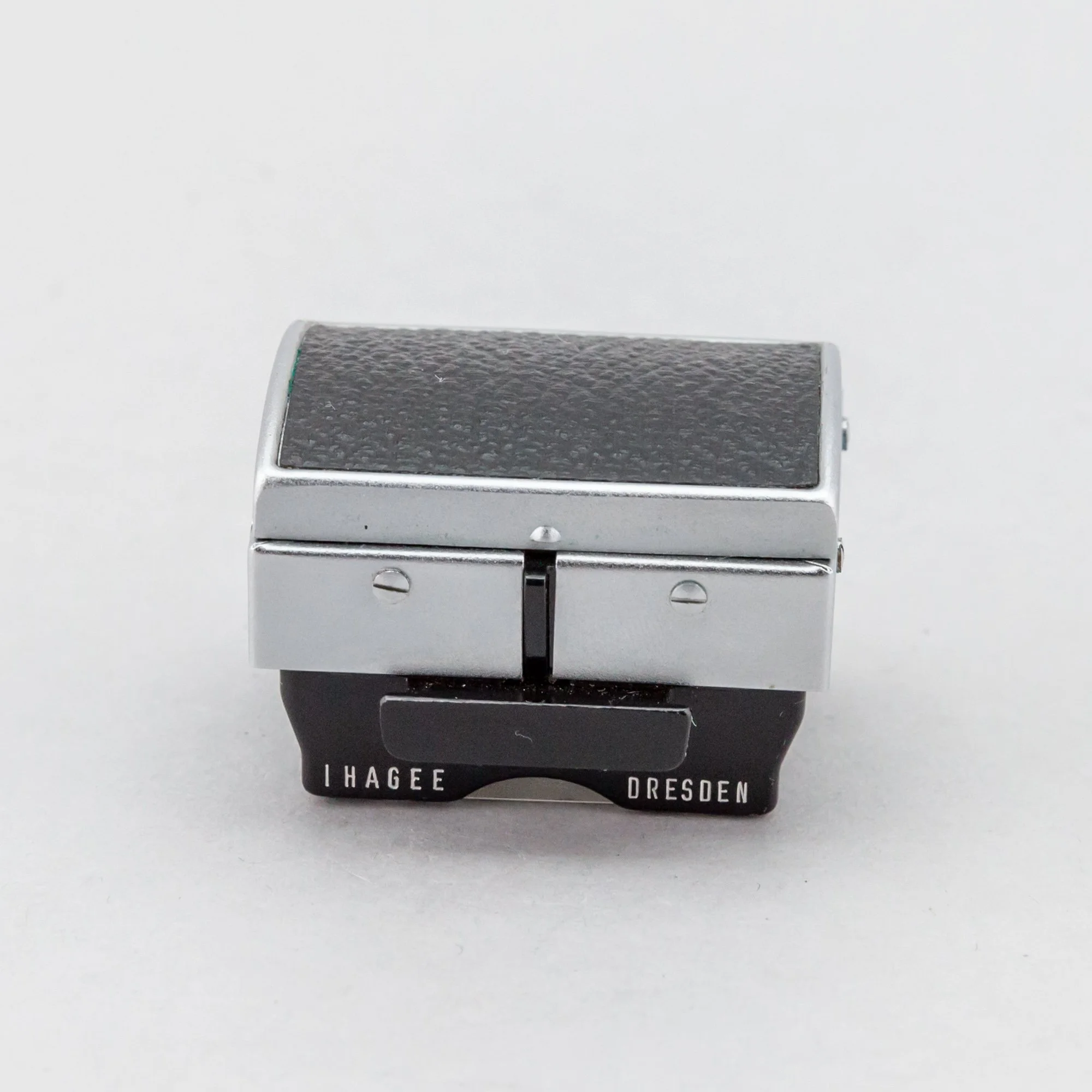

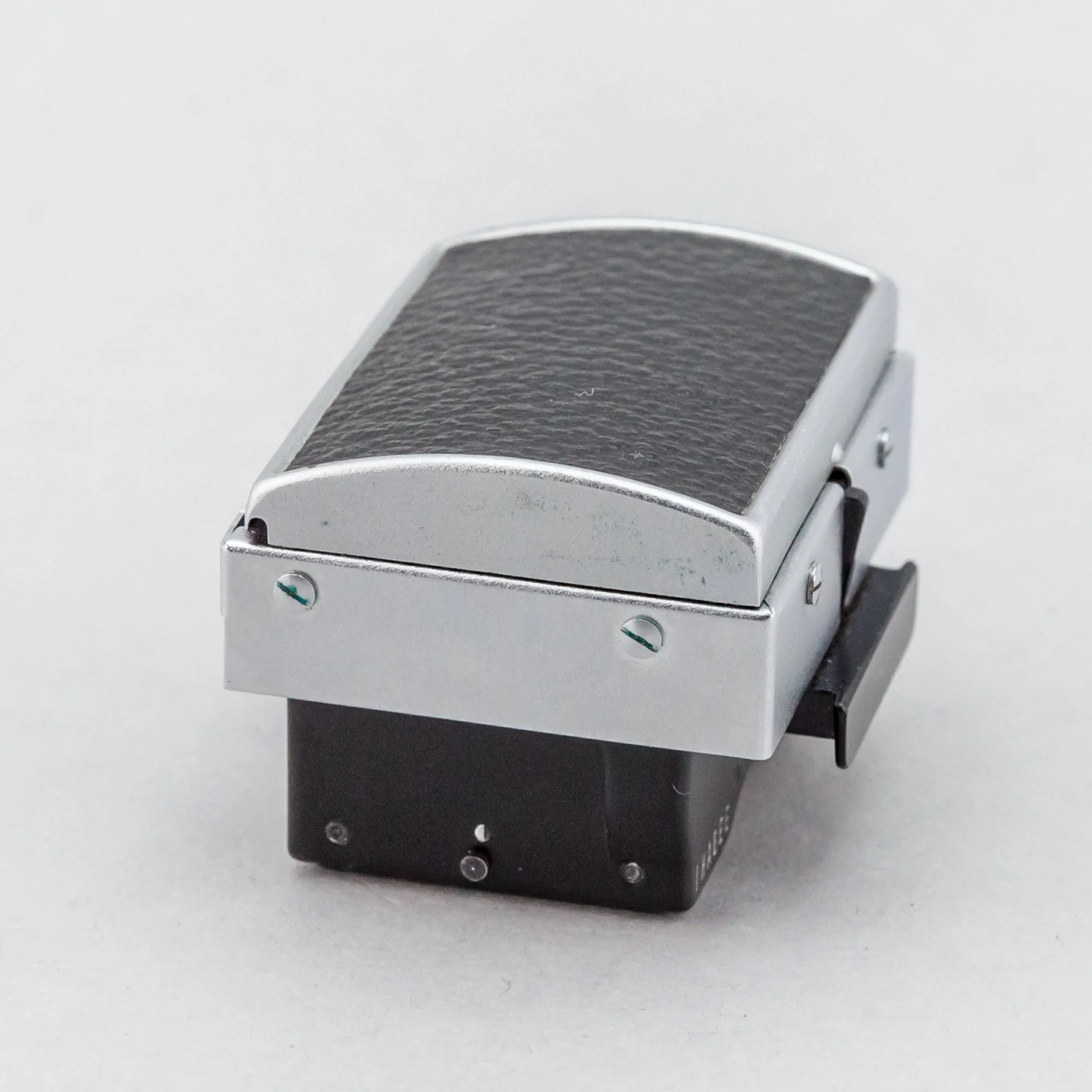

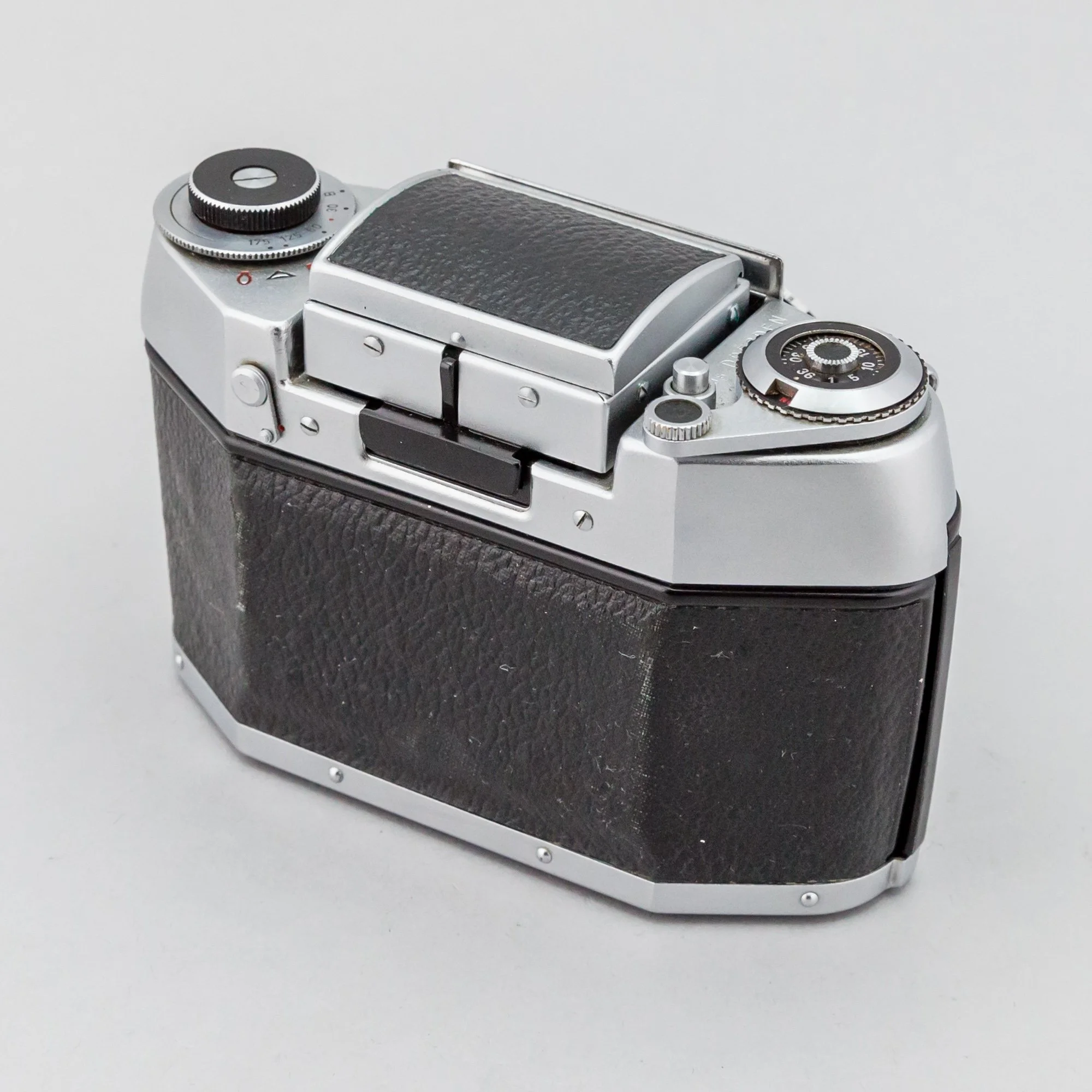

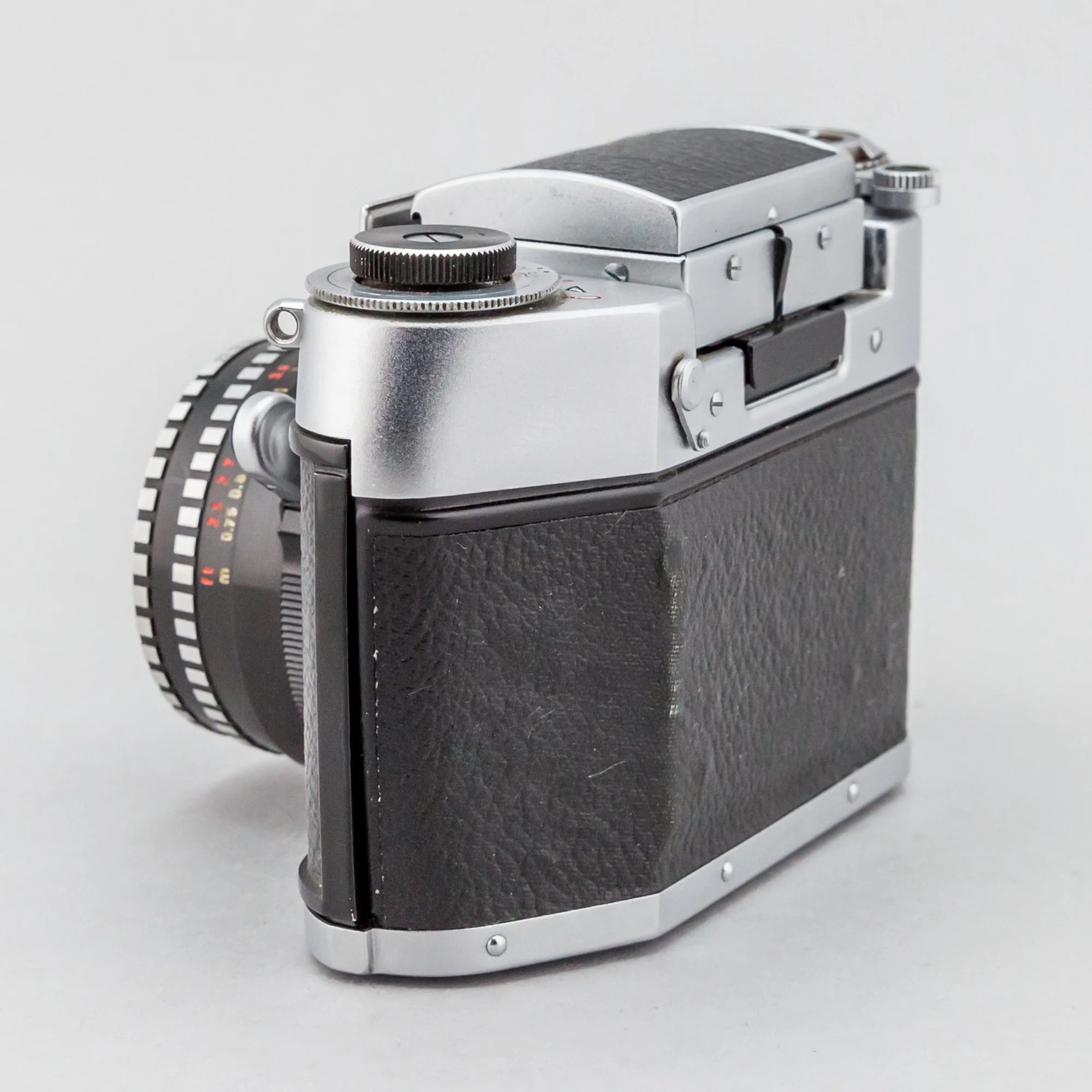

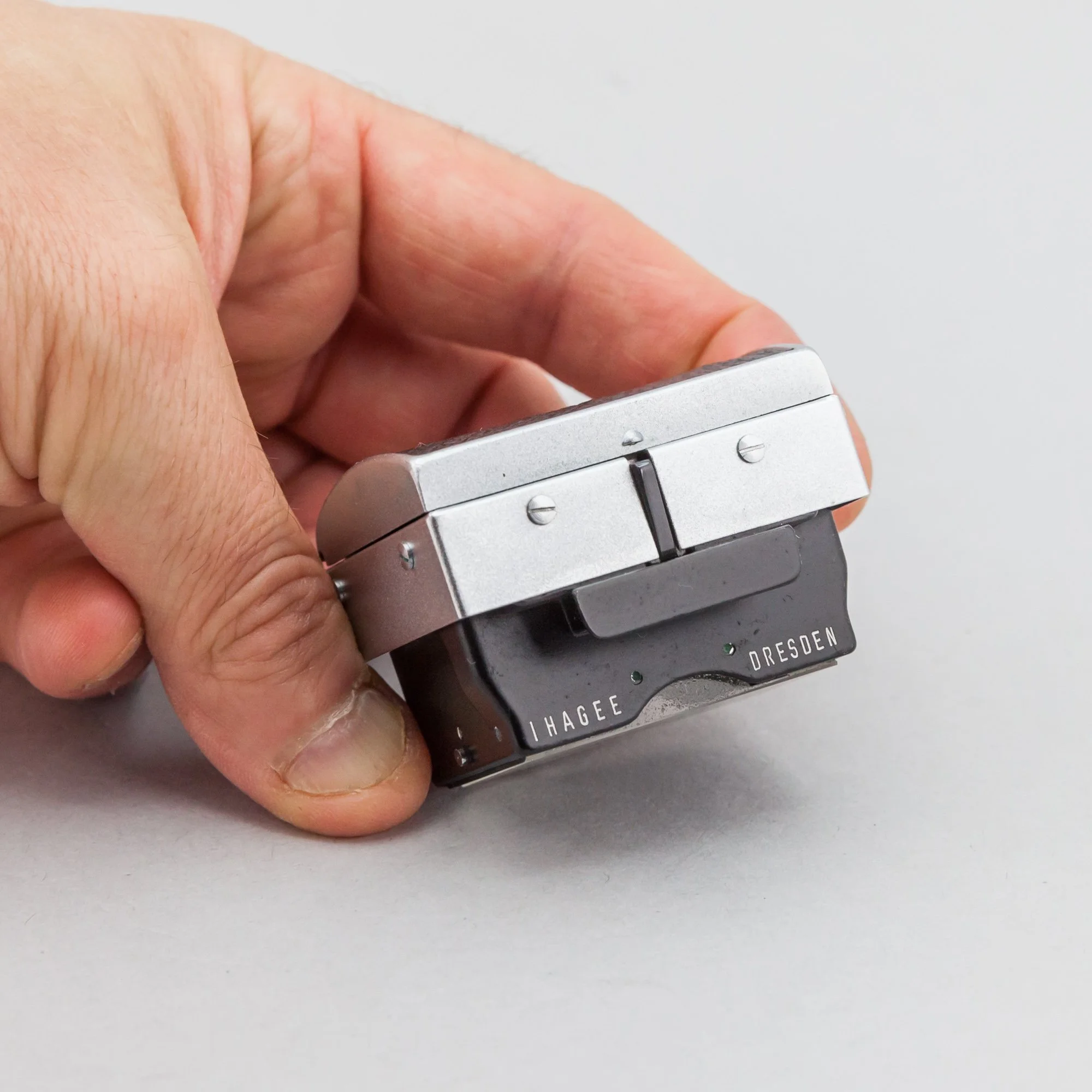

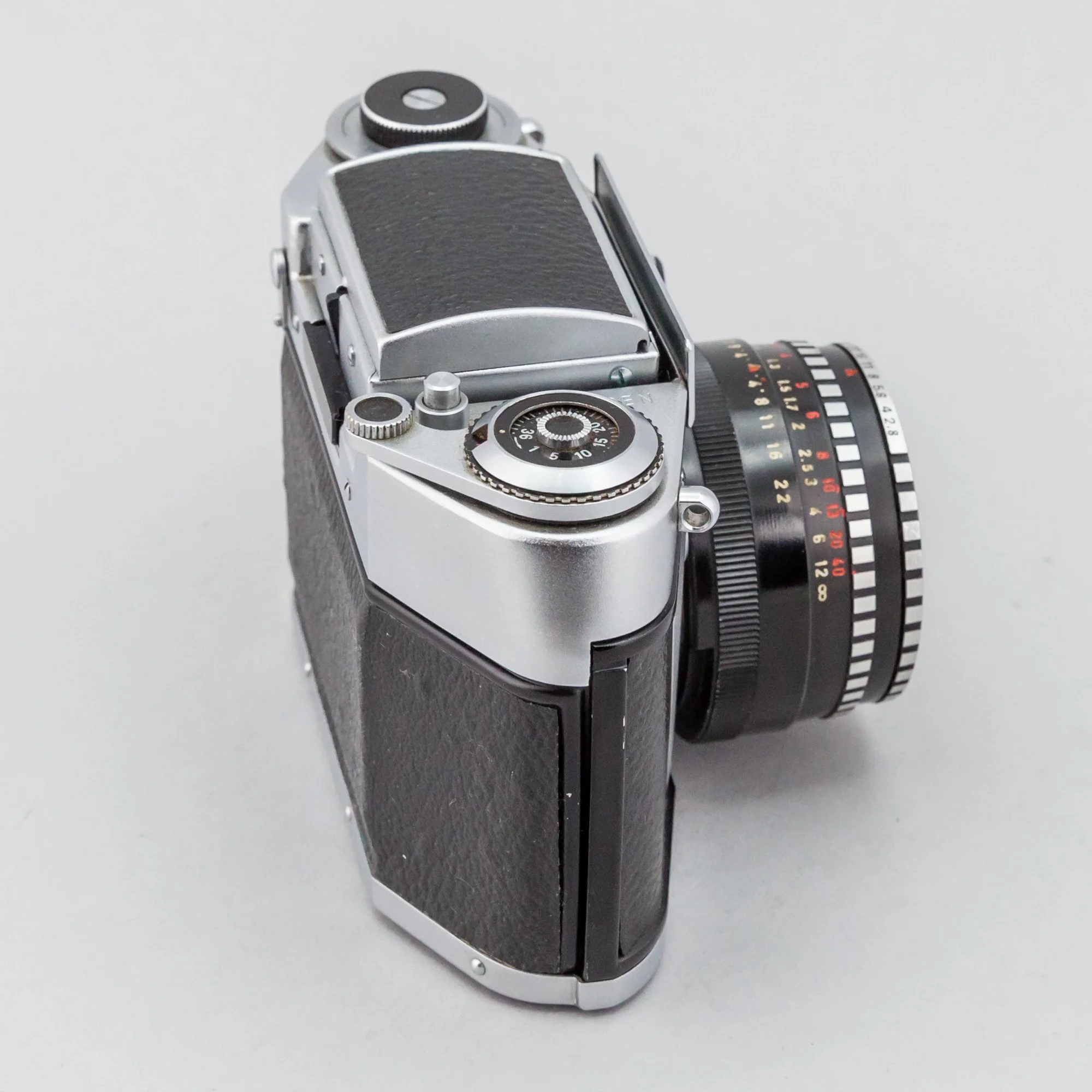

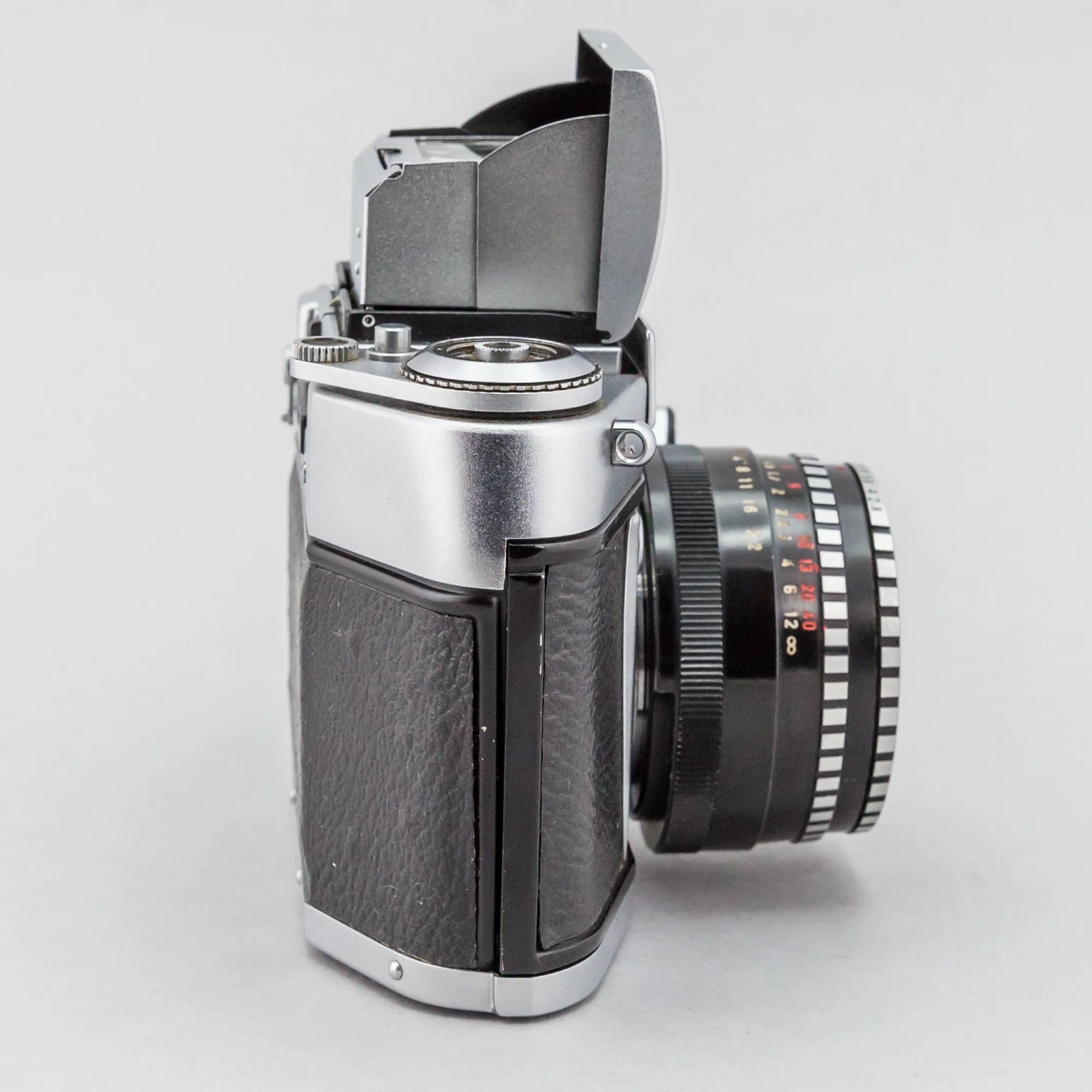

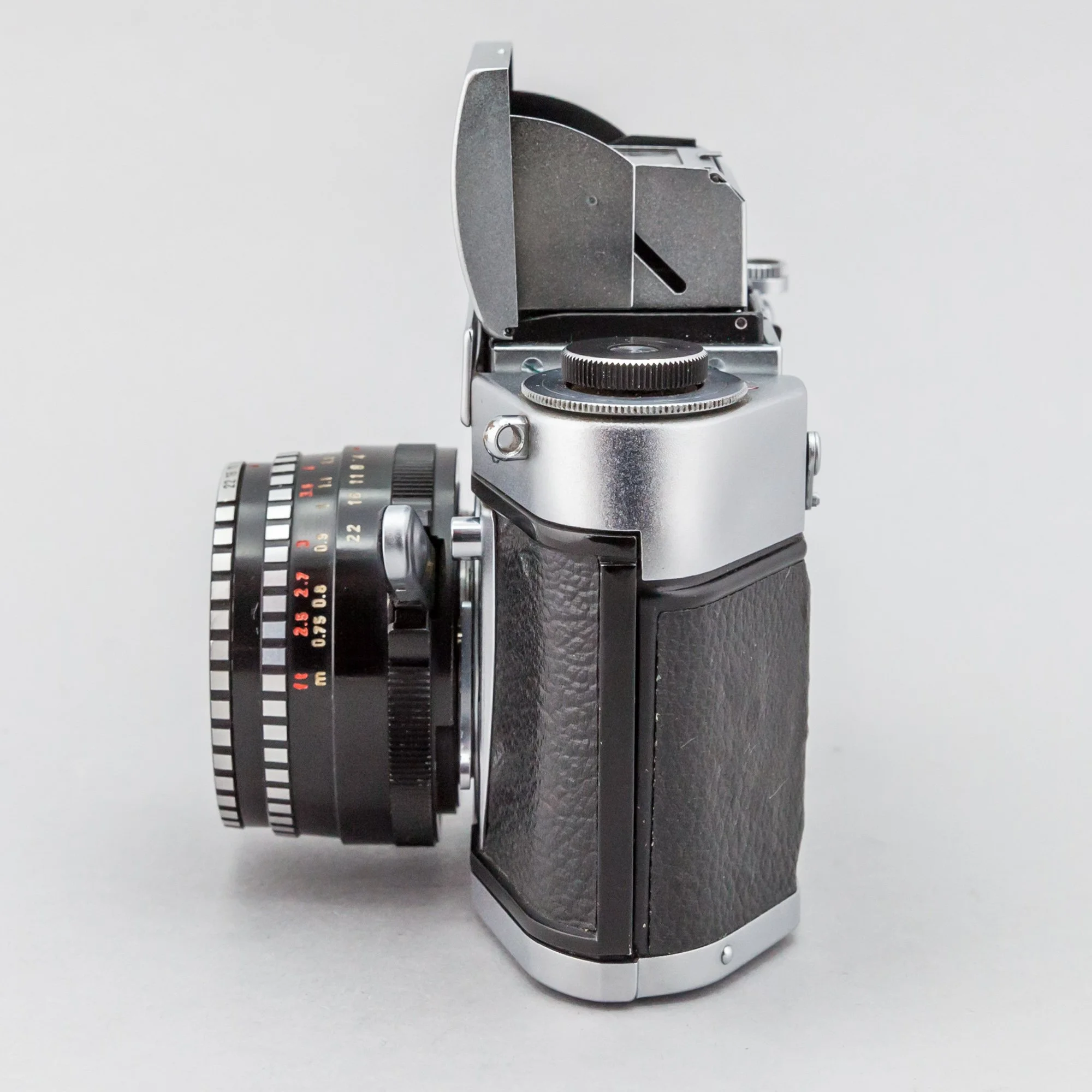

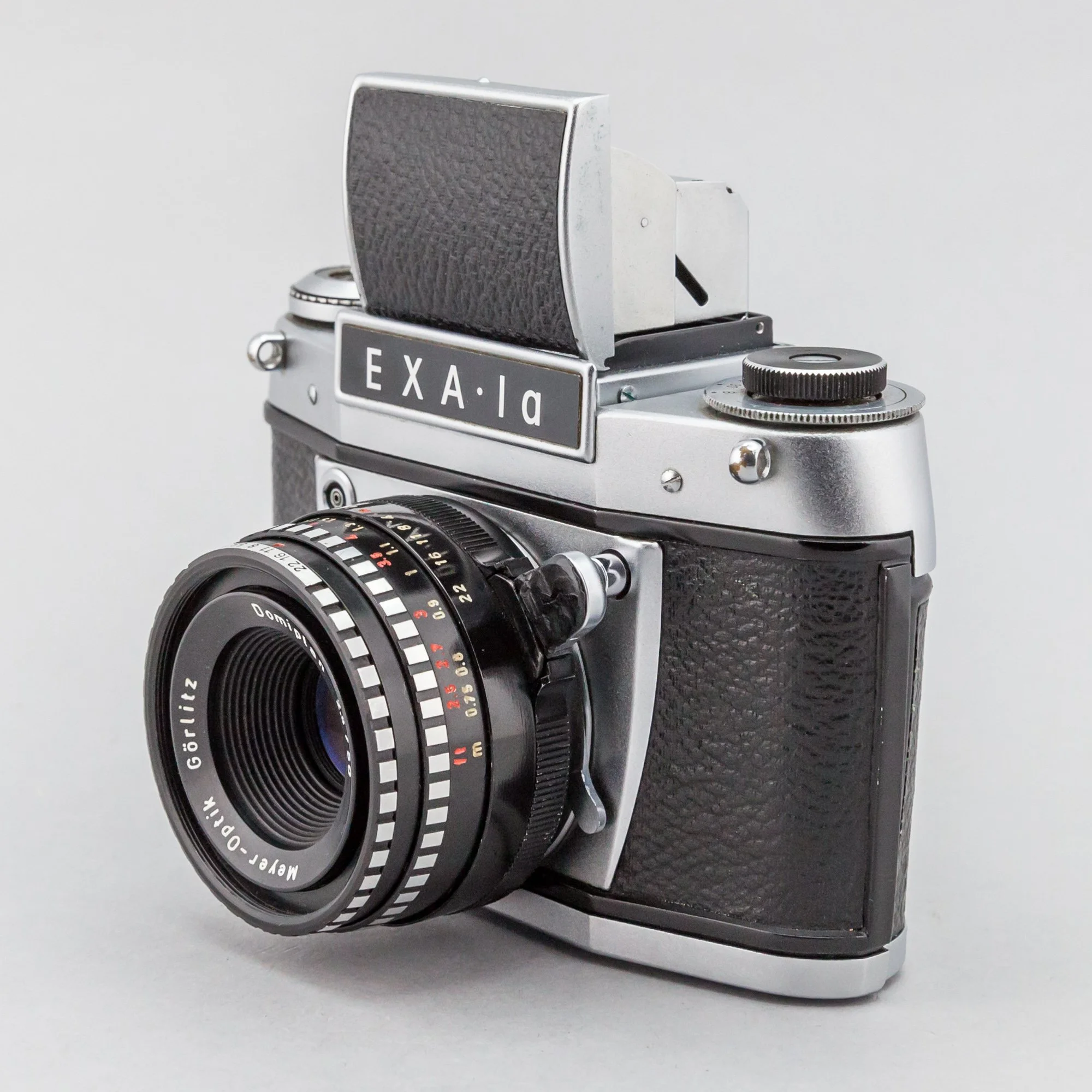

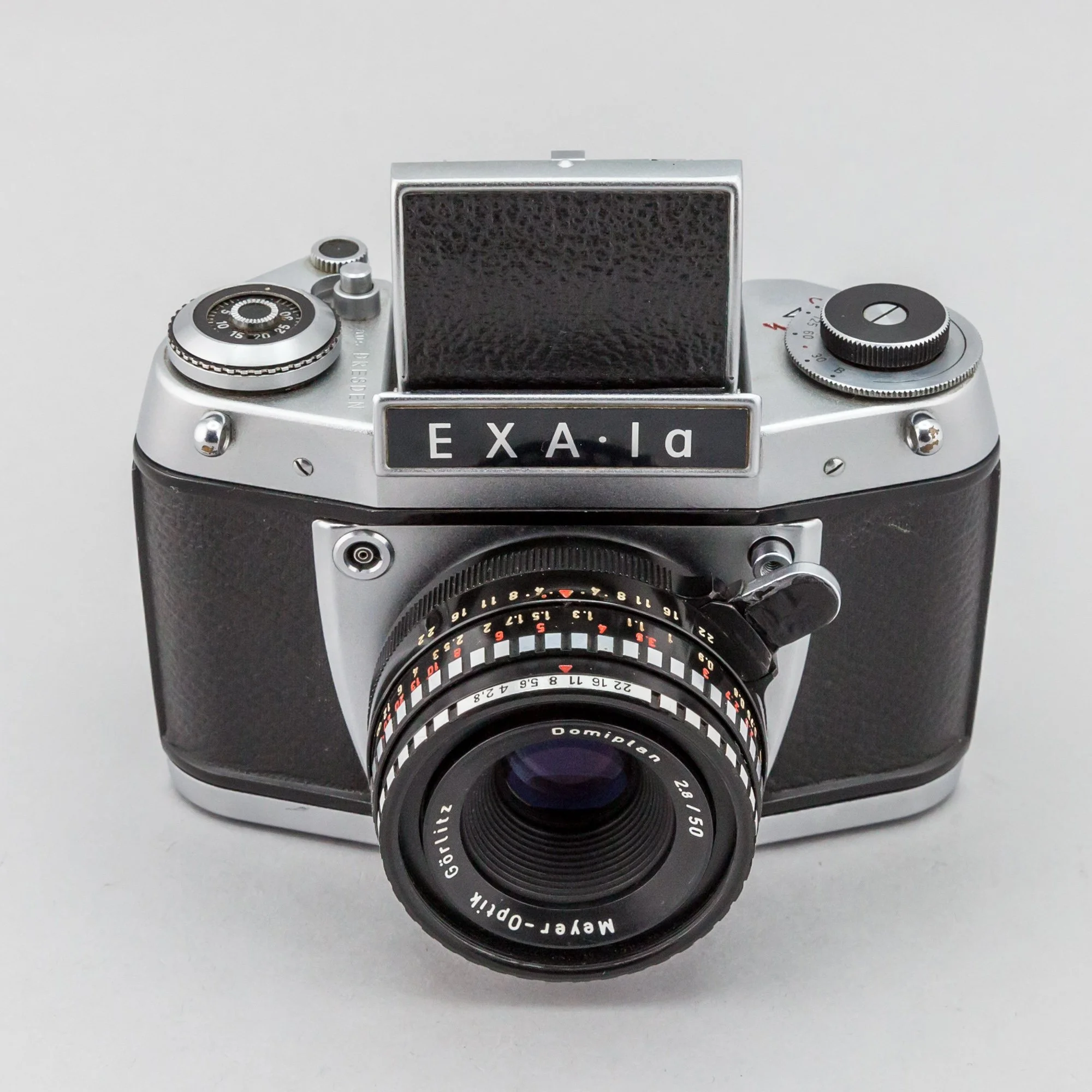

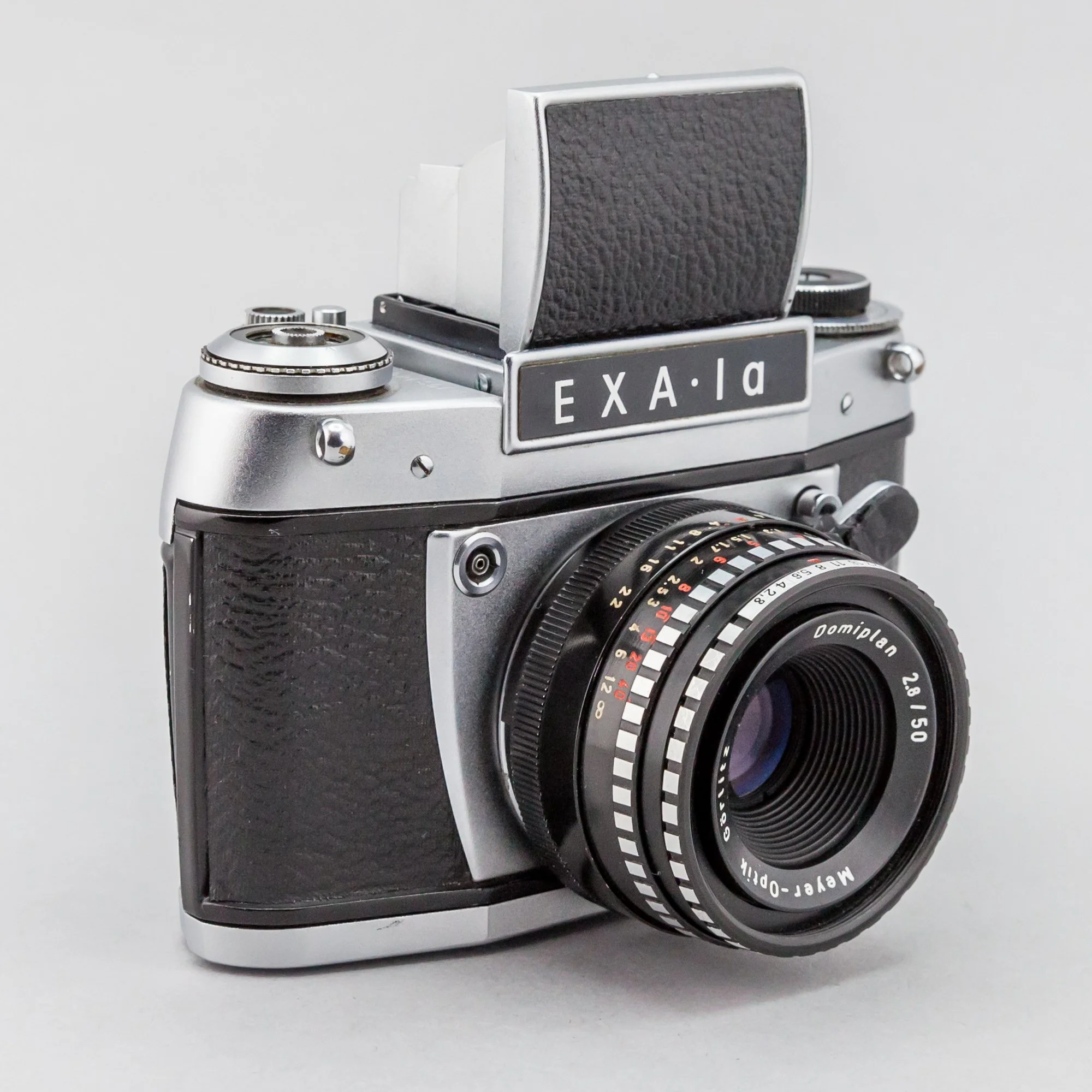

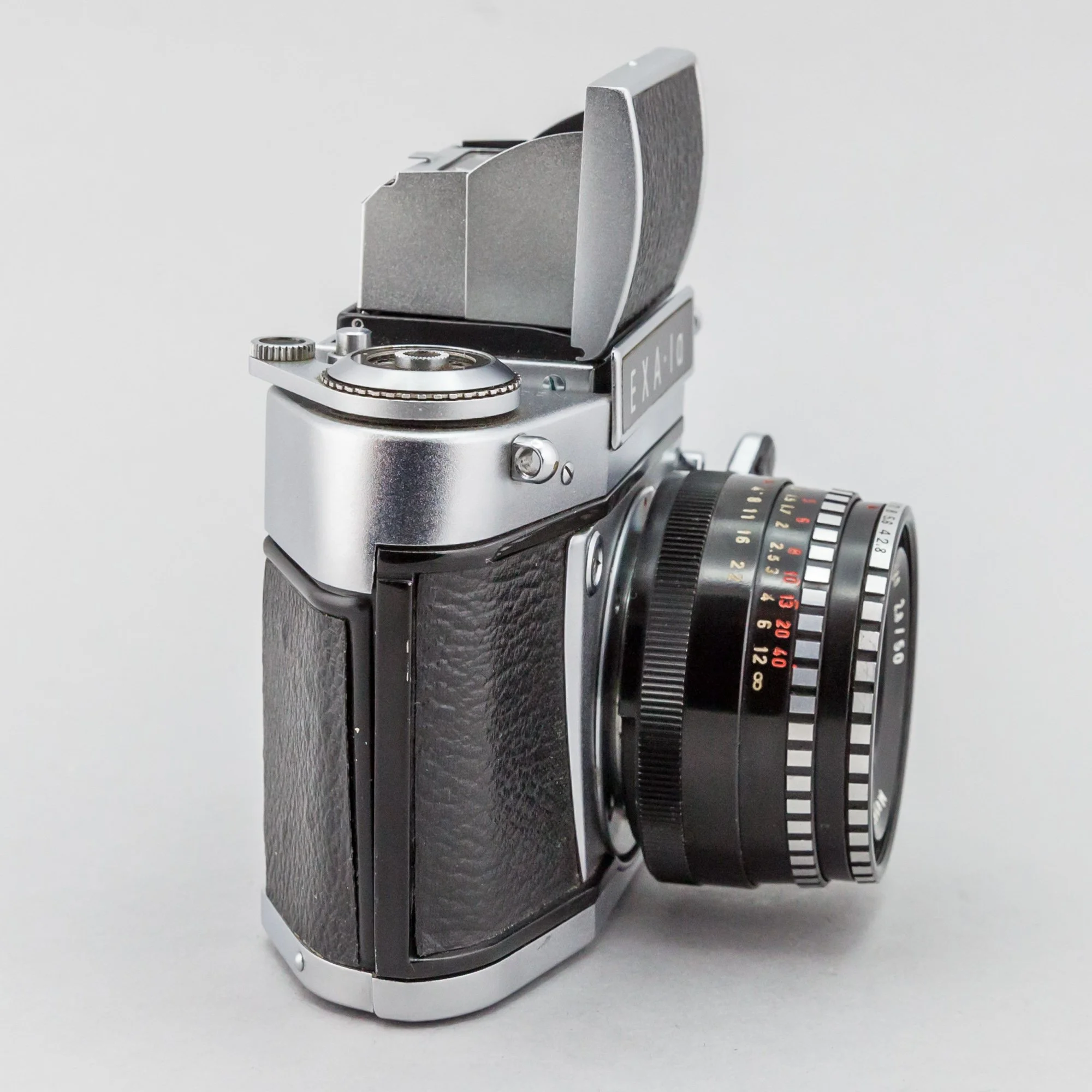

Mechanical SLR camera with a top-folding viewfinder.
Brand: Pentacon
Model: EXA 1 A

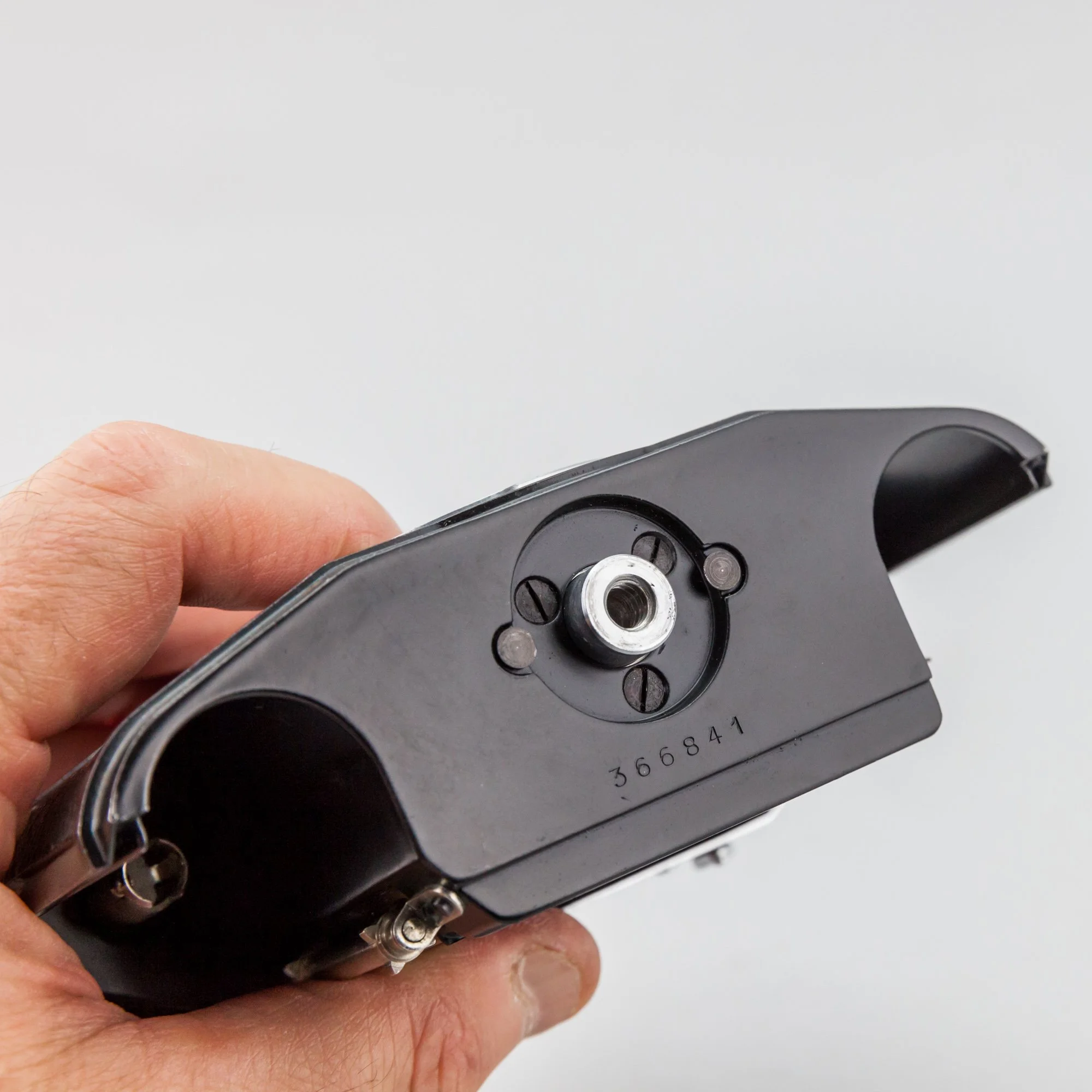

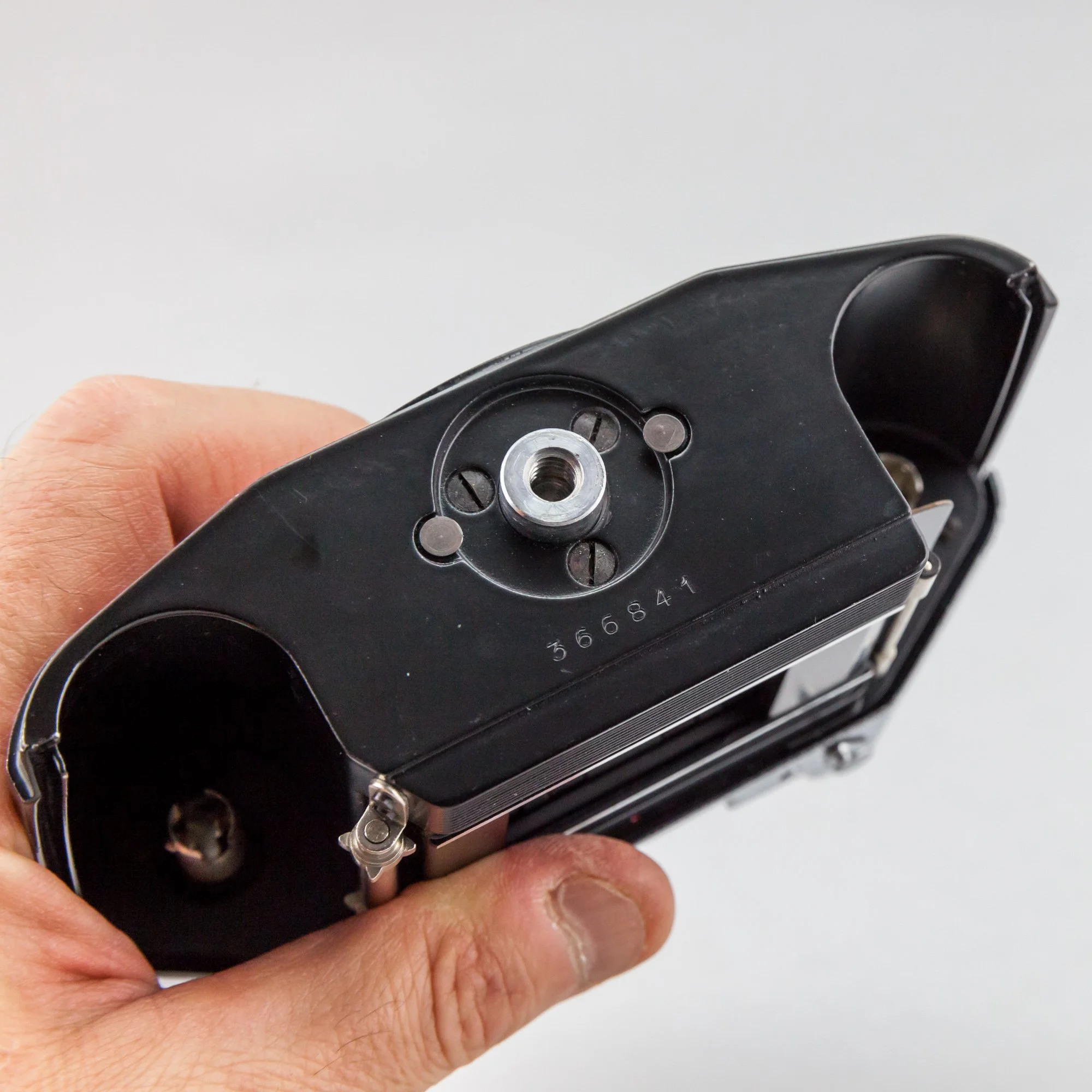

Serial number: 366841

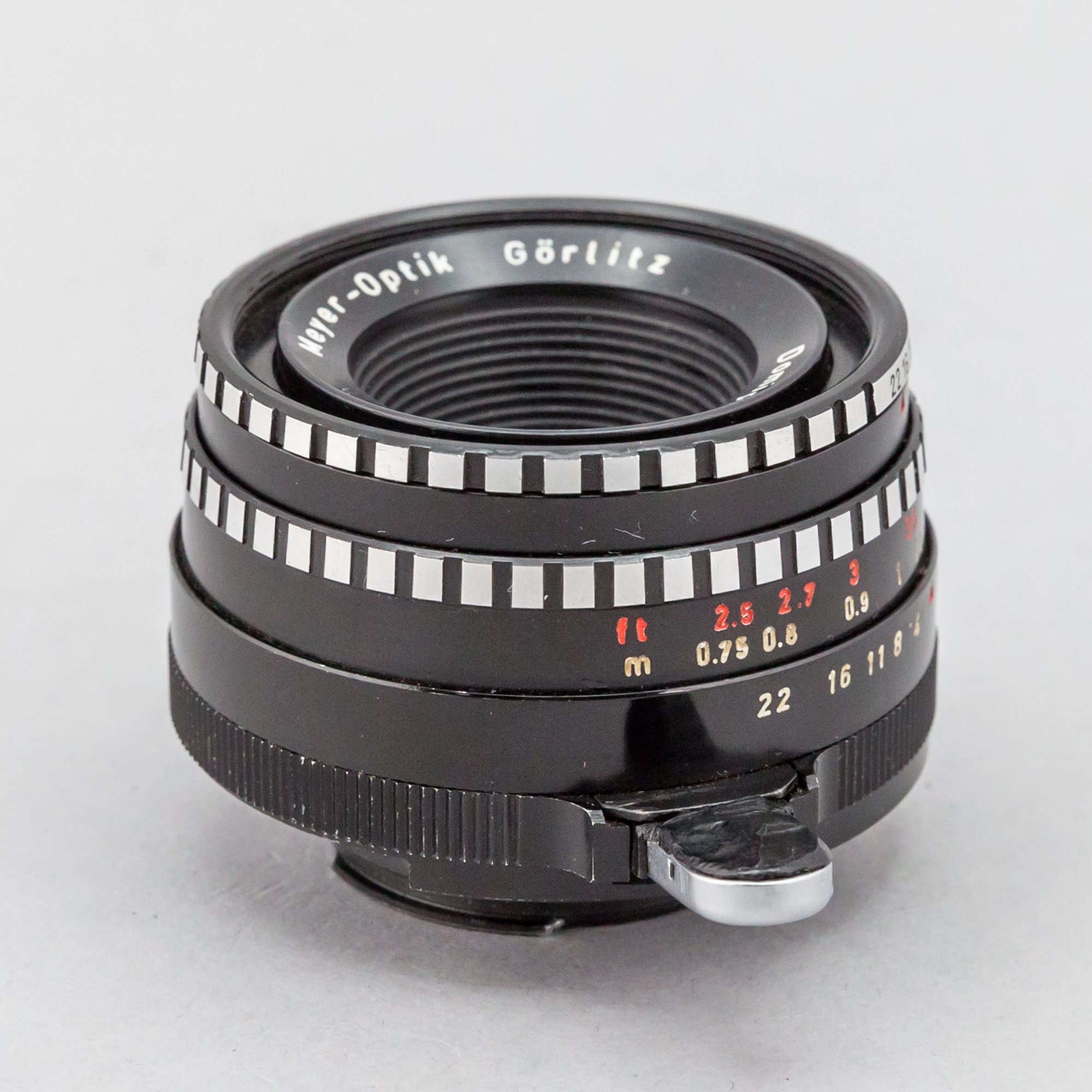

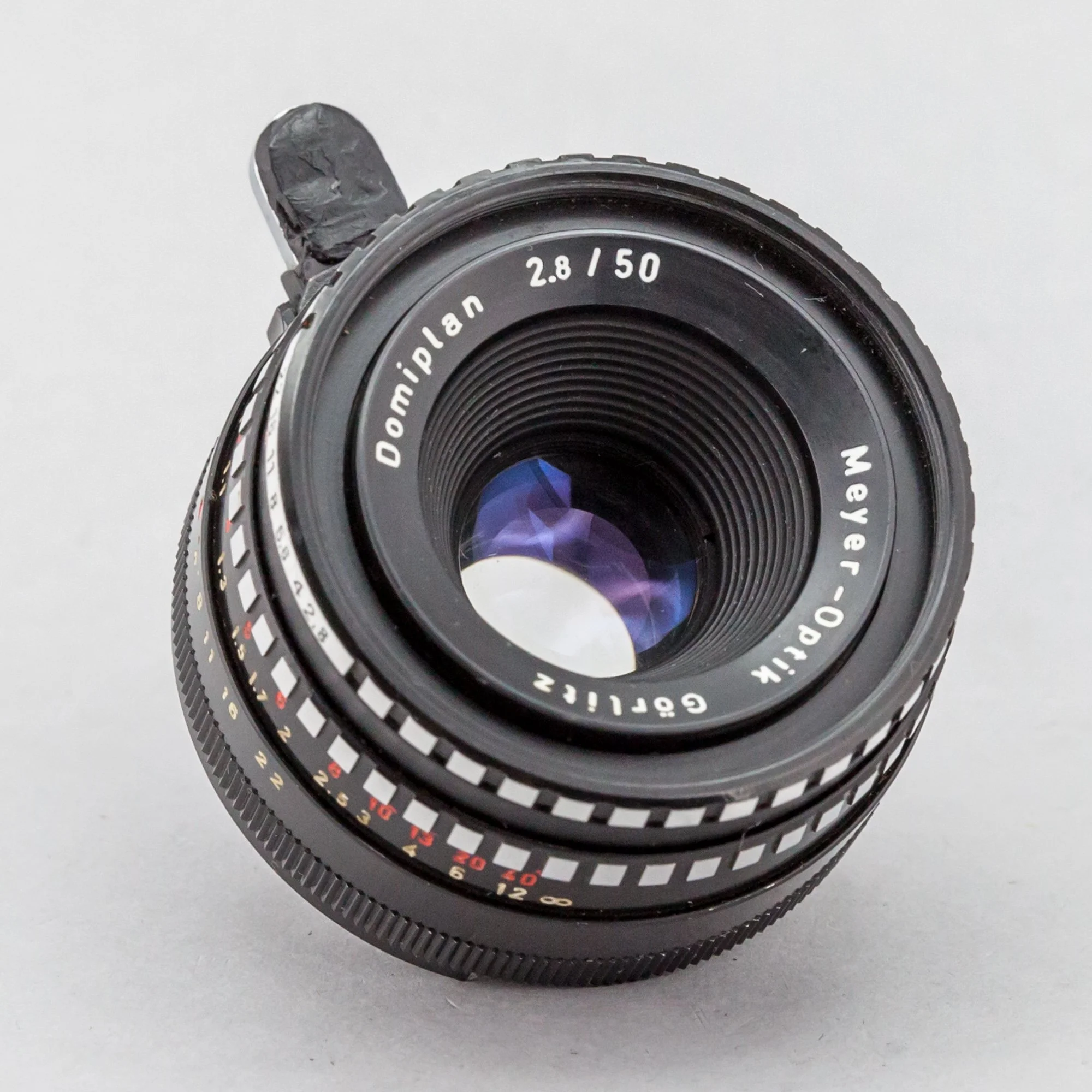

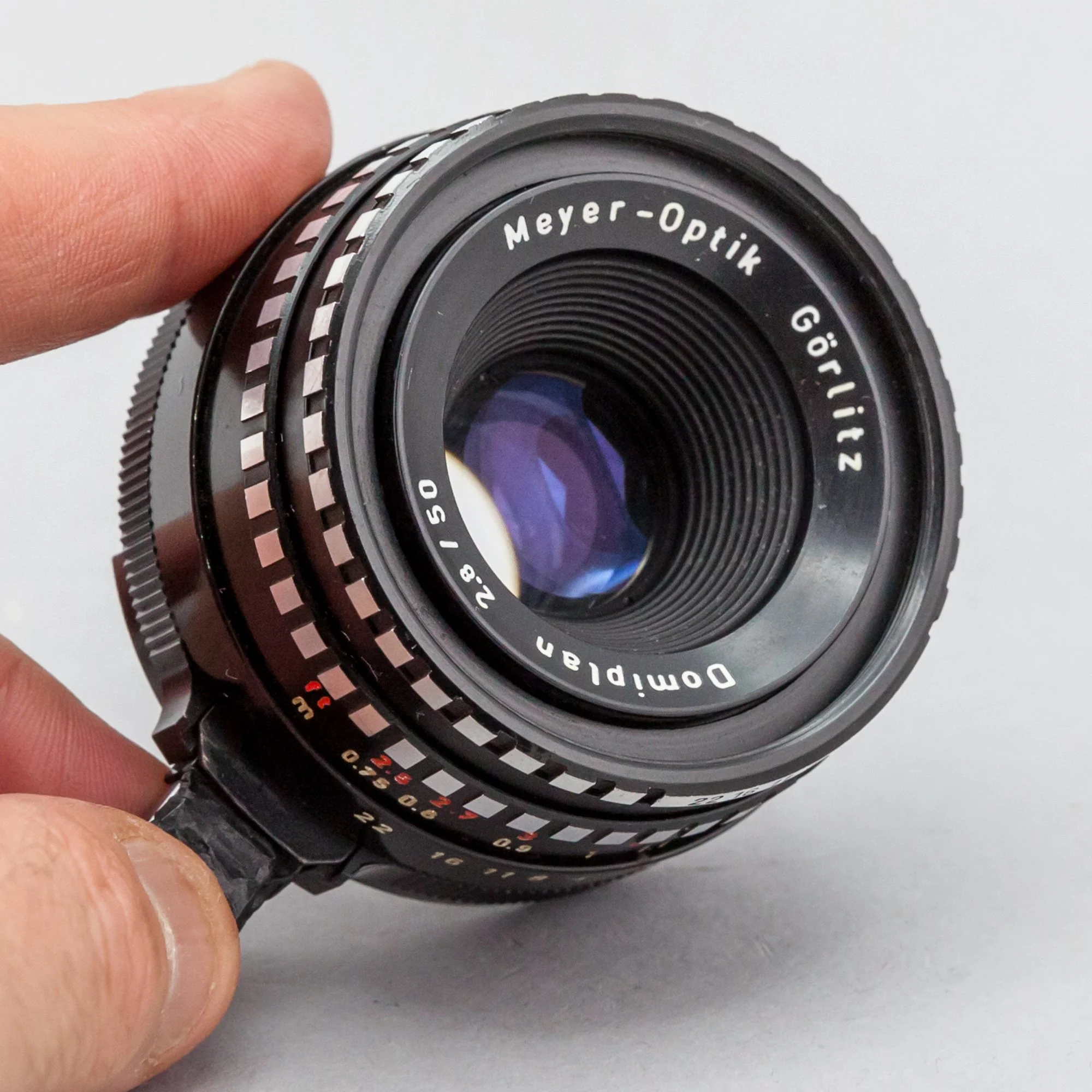

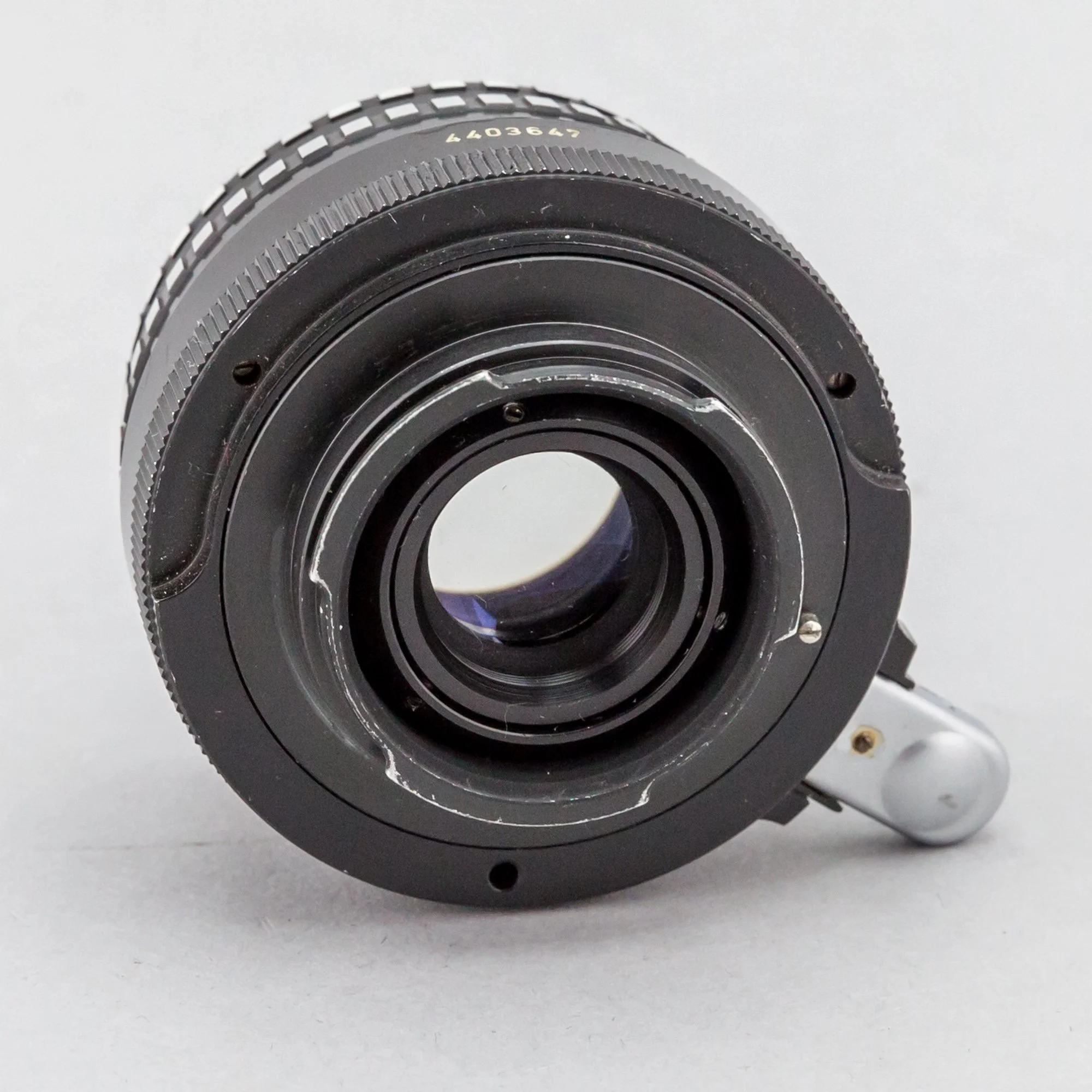

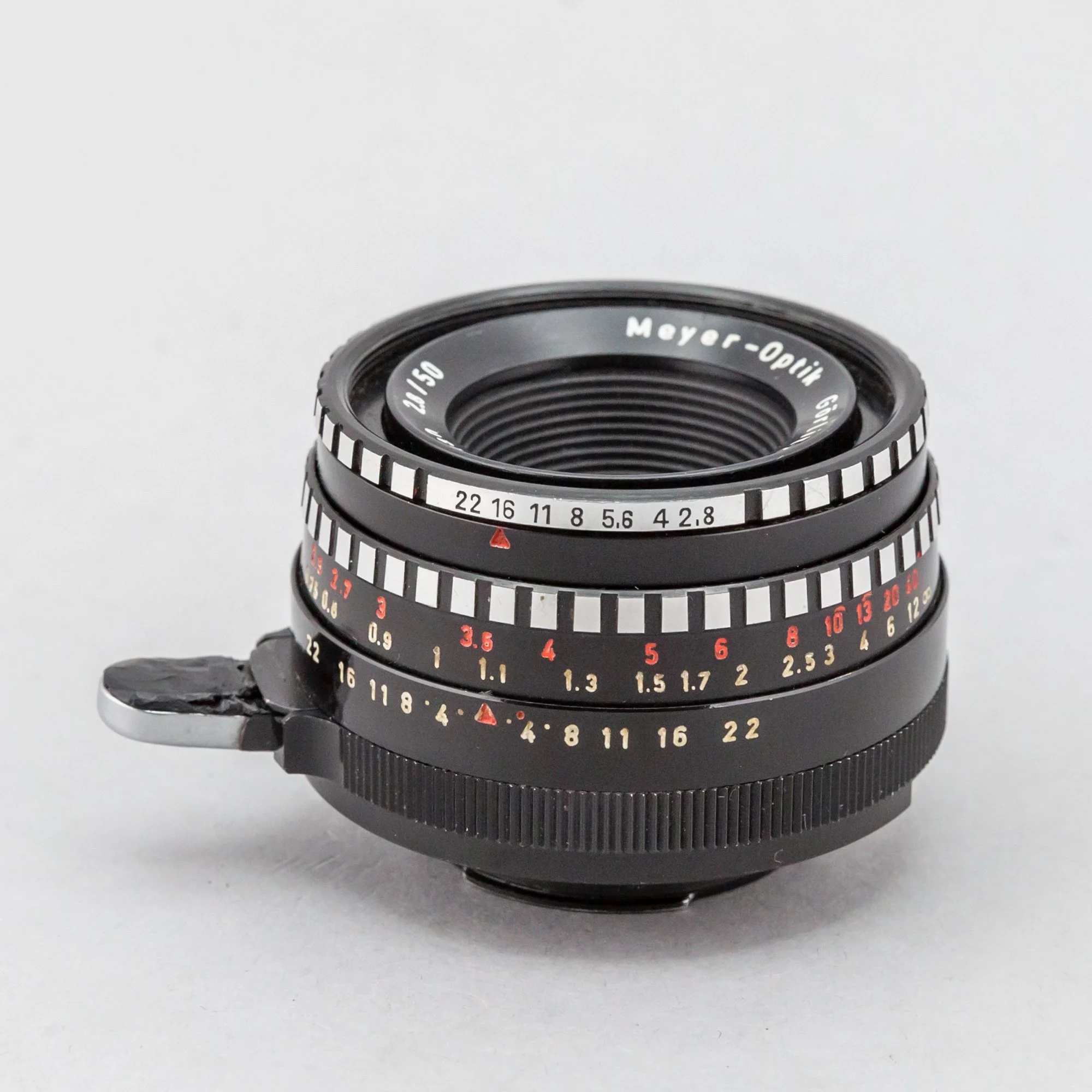

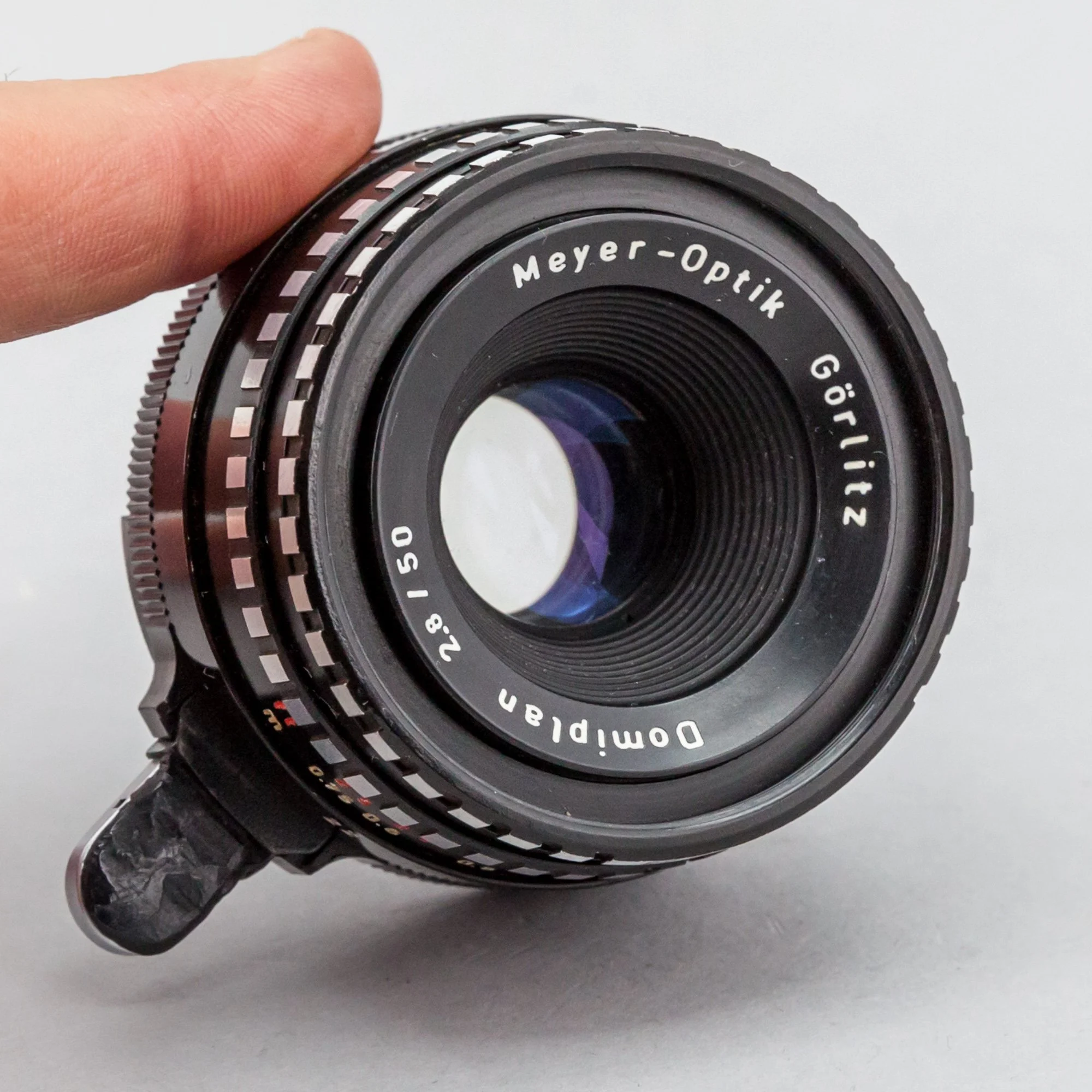

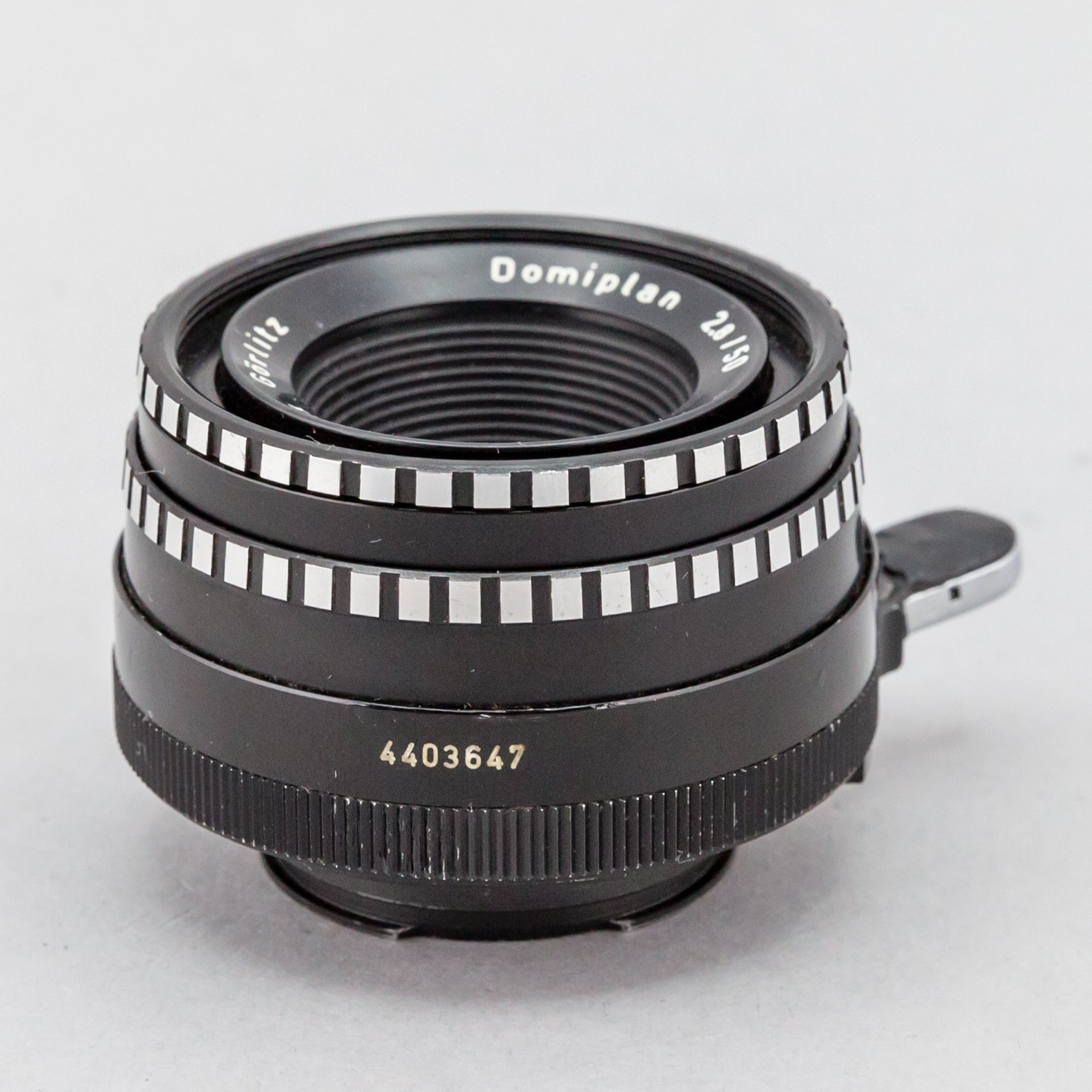

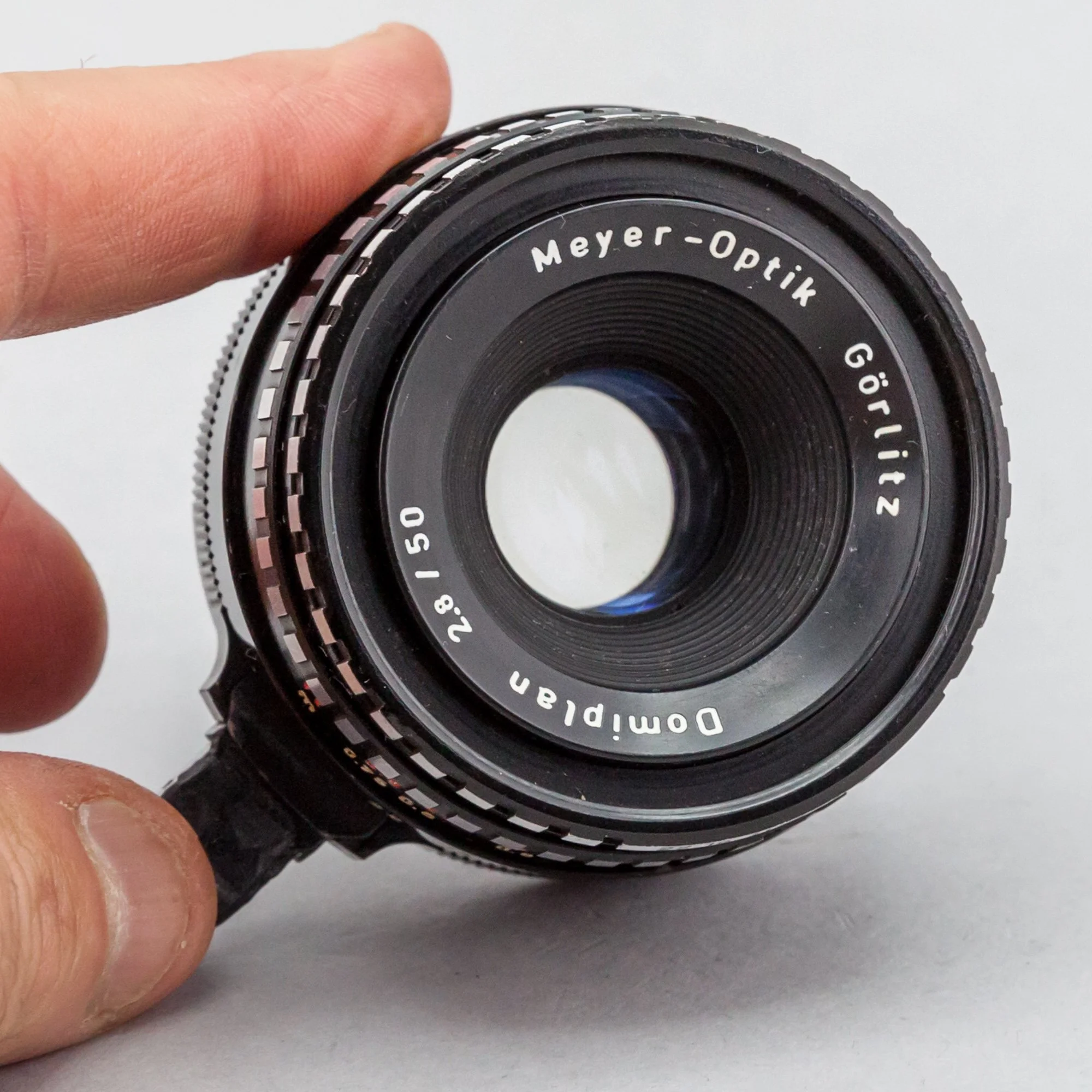

Sold with lens: Domiplan 1:2.8/50mm Meyer Optik Gorlitz serial number 4403647.

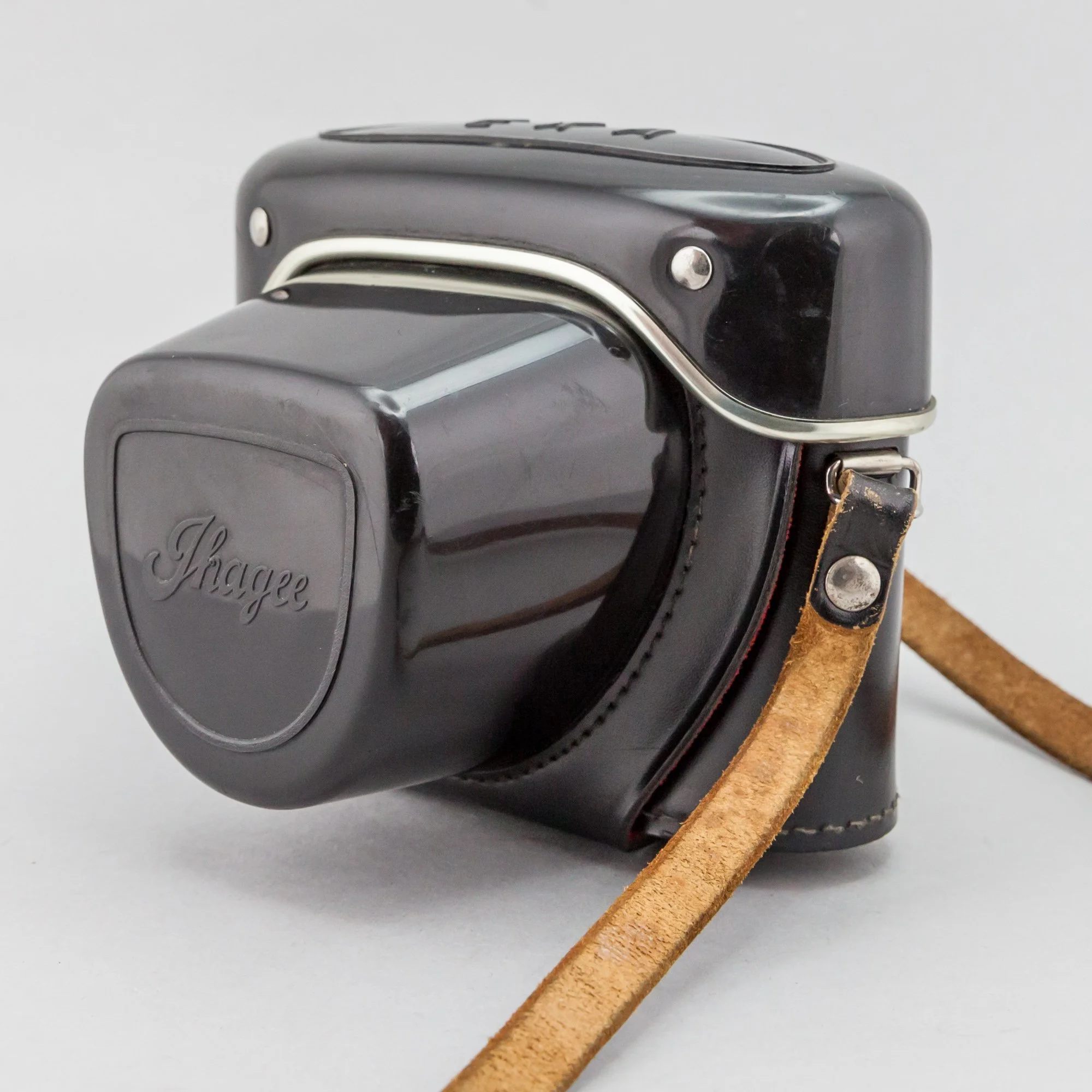

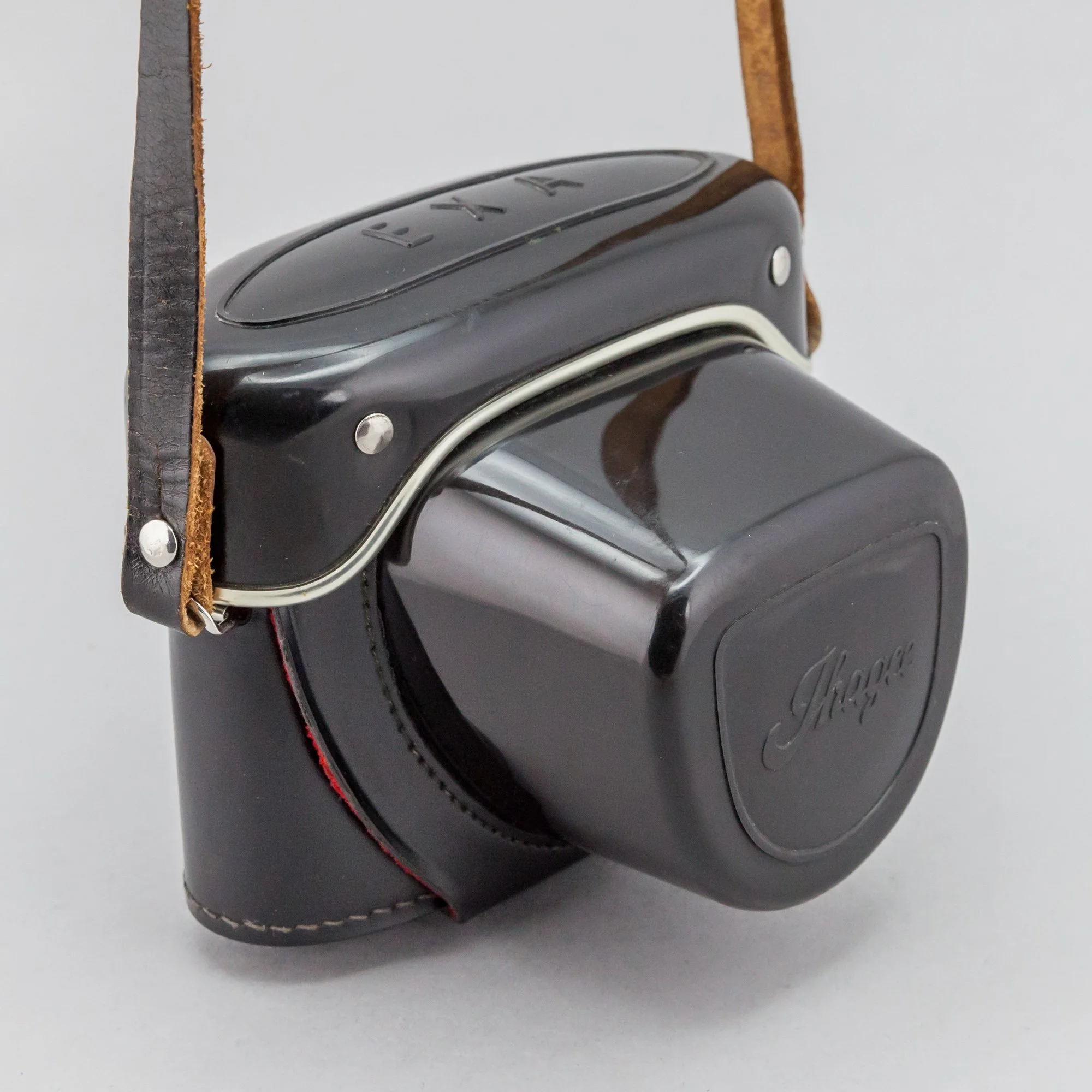

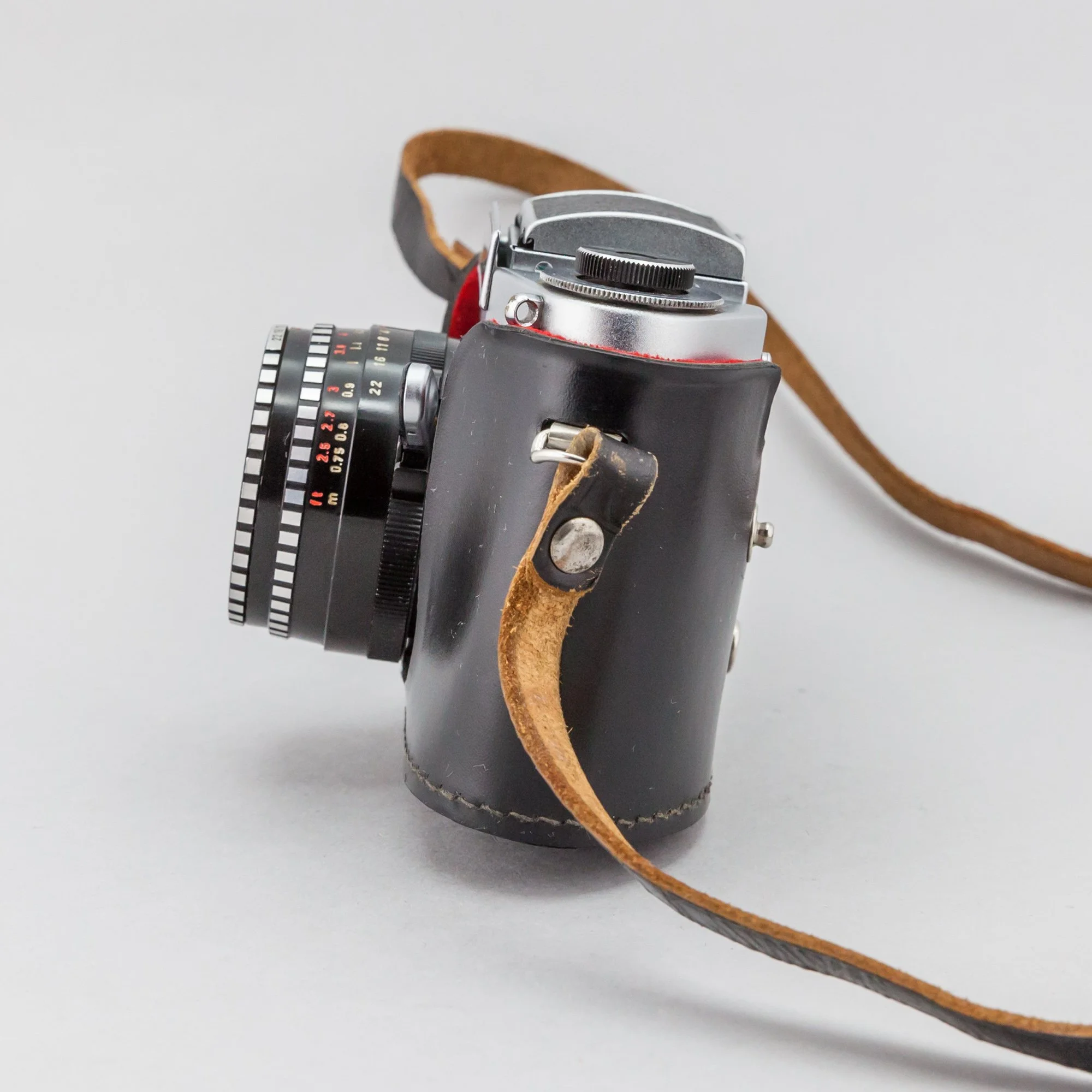

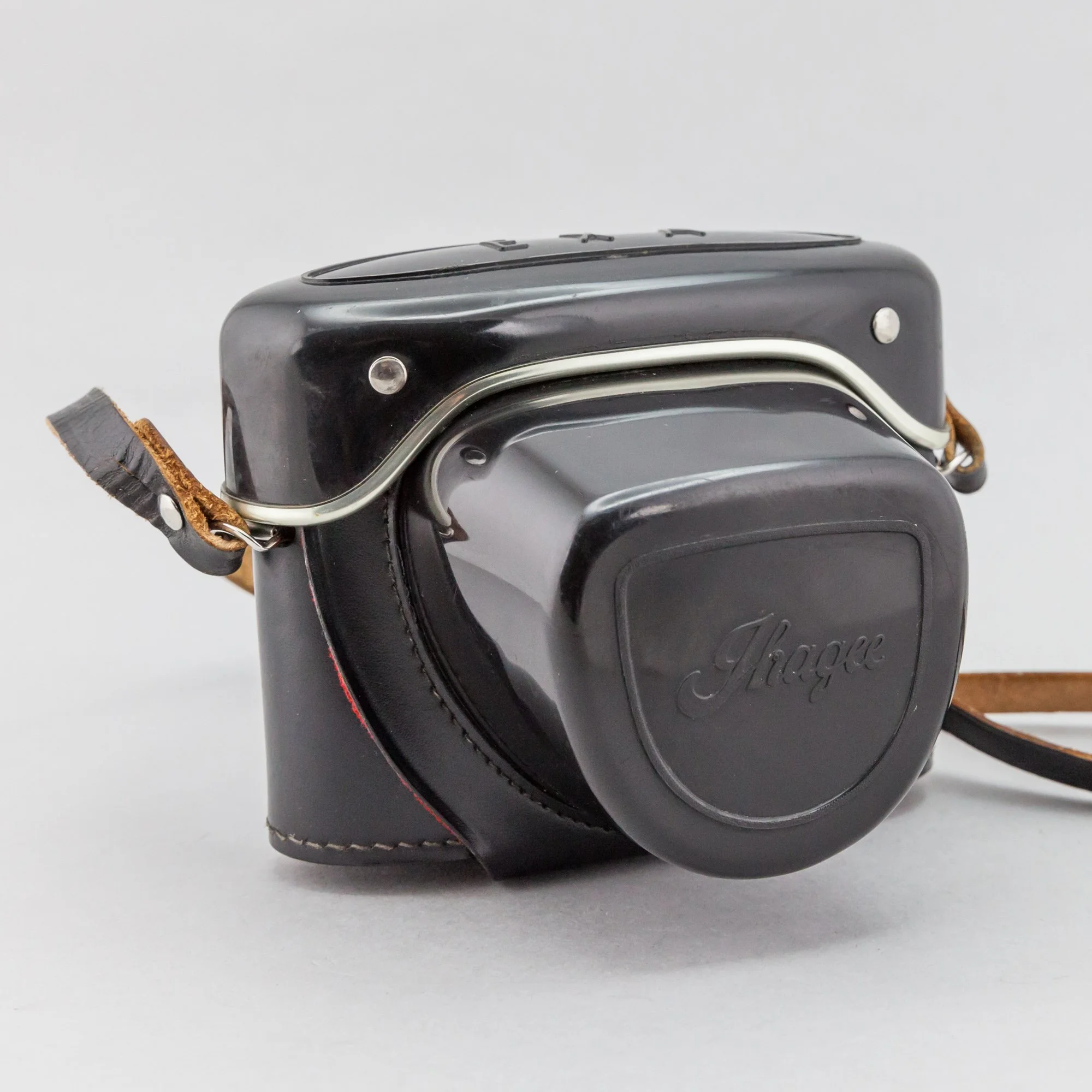

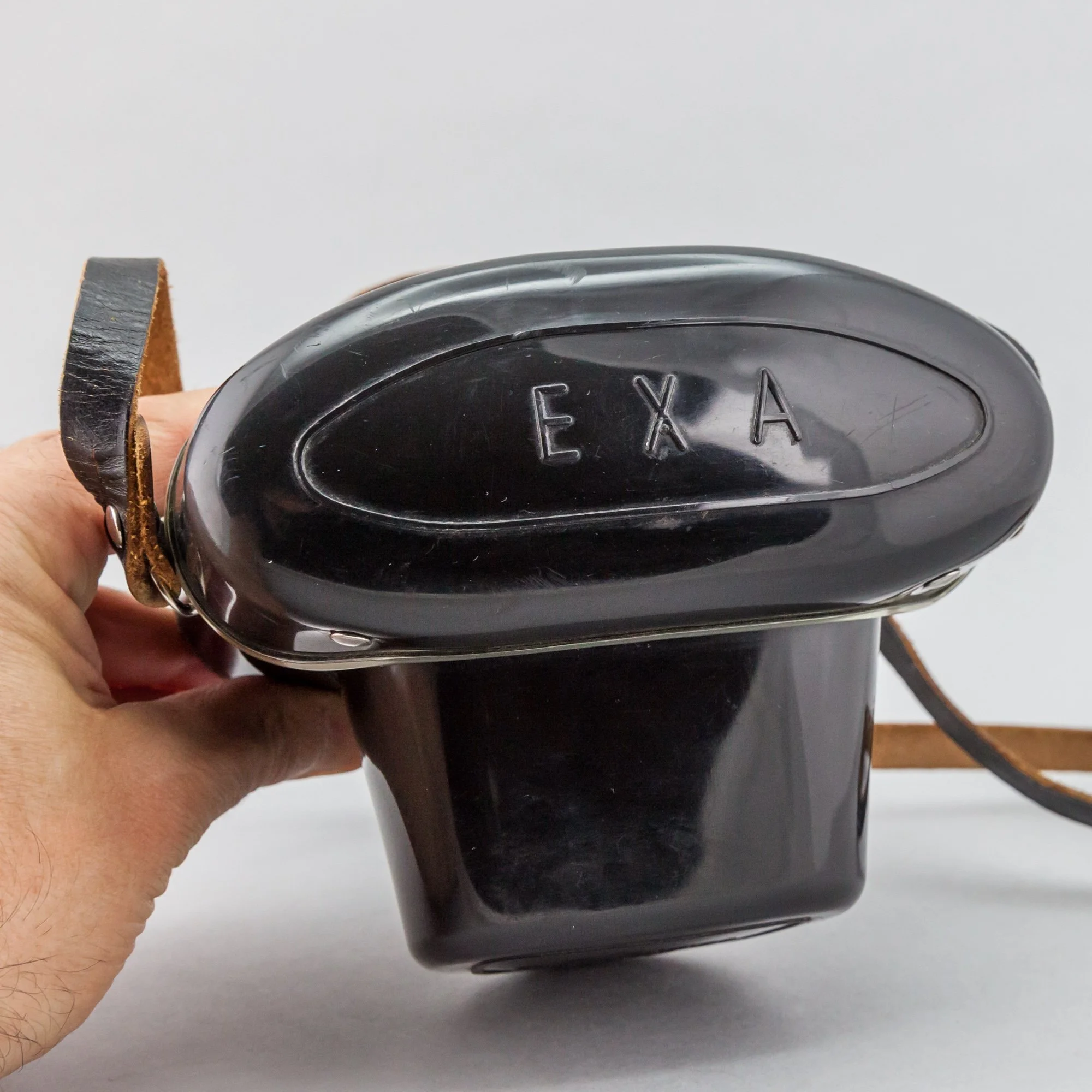

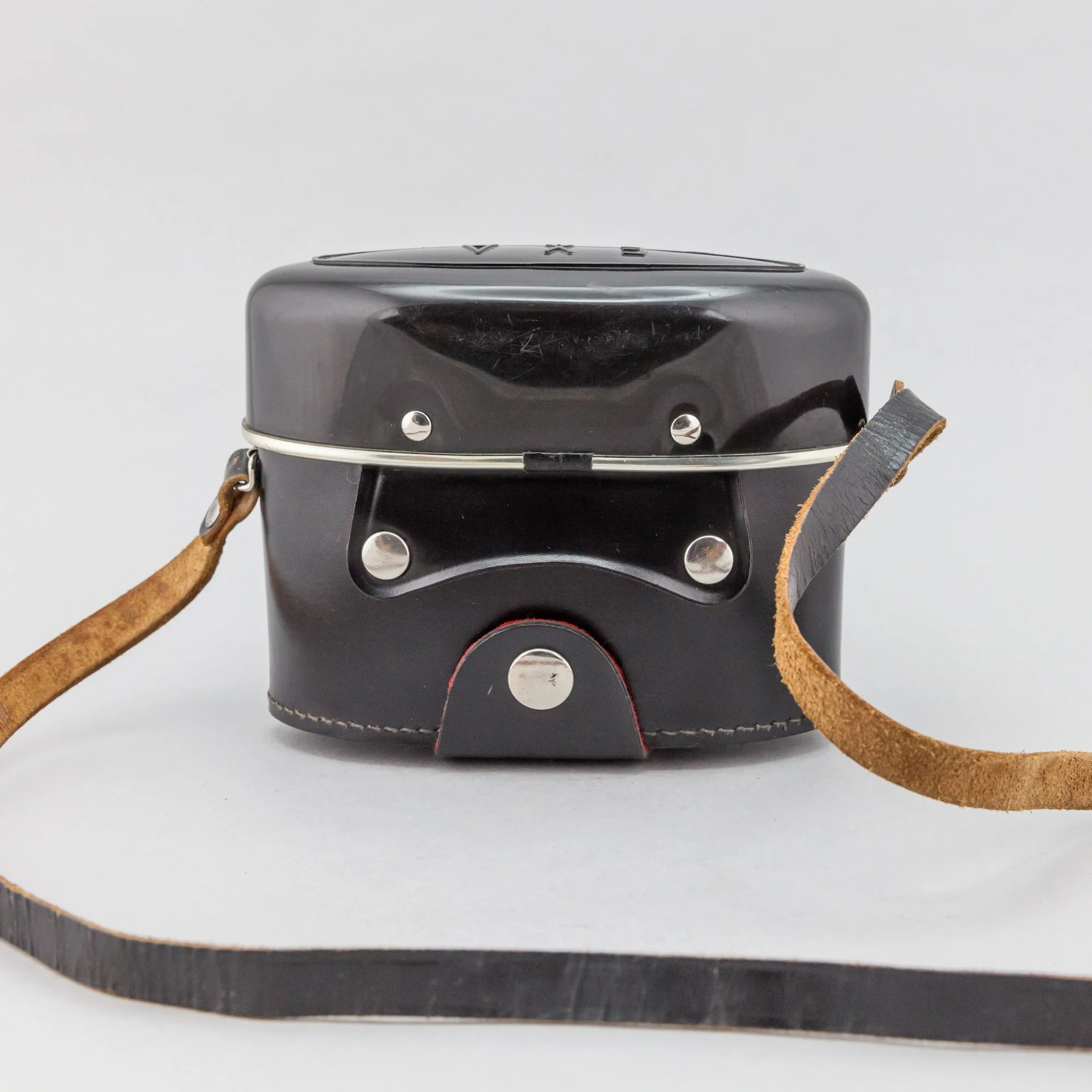

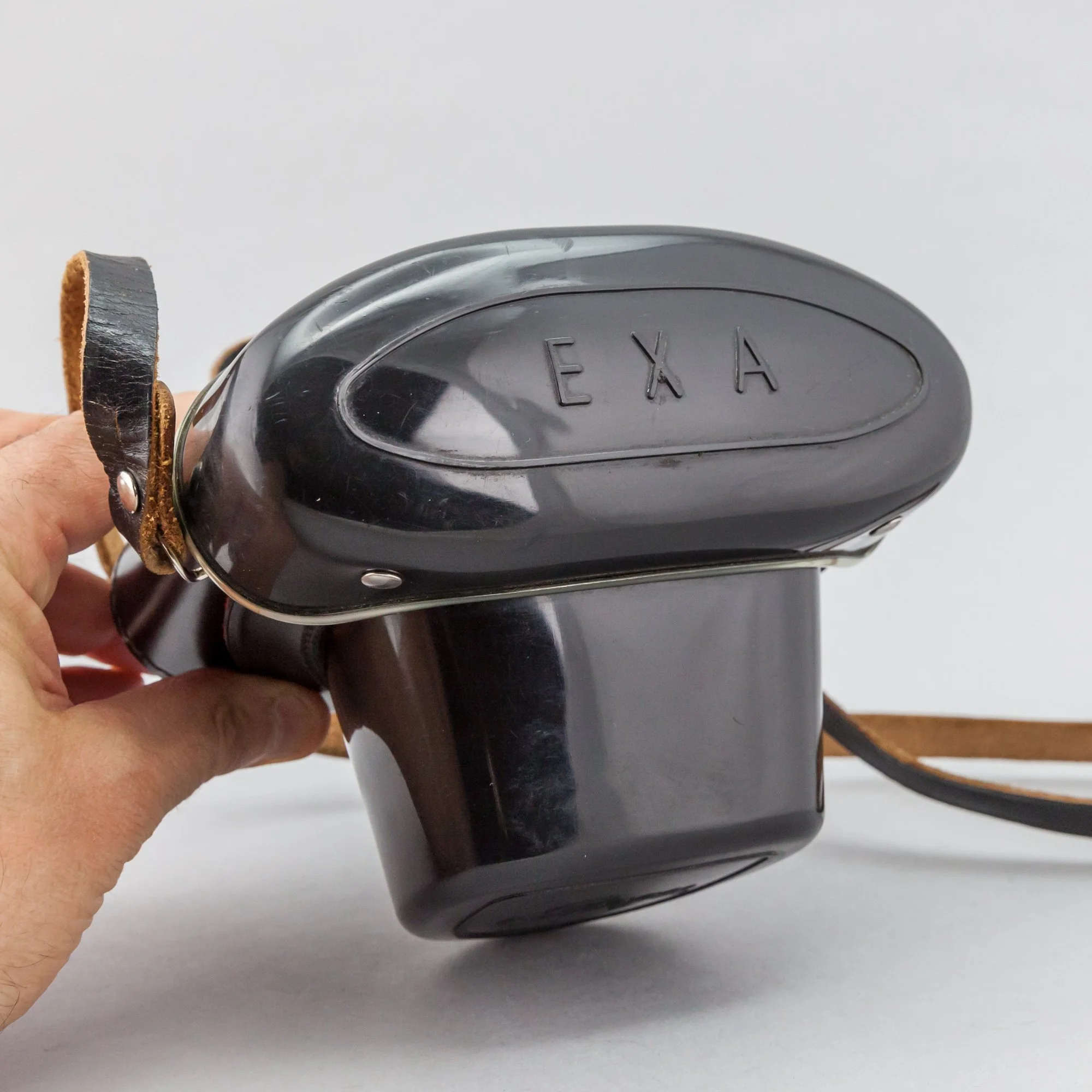

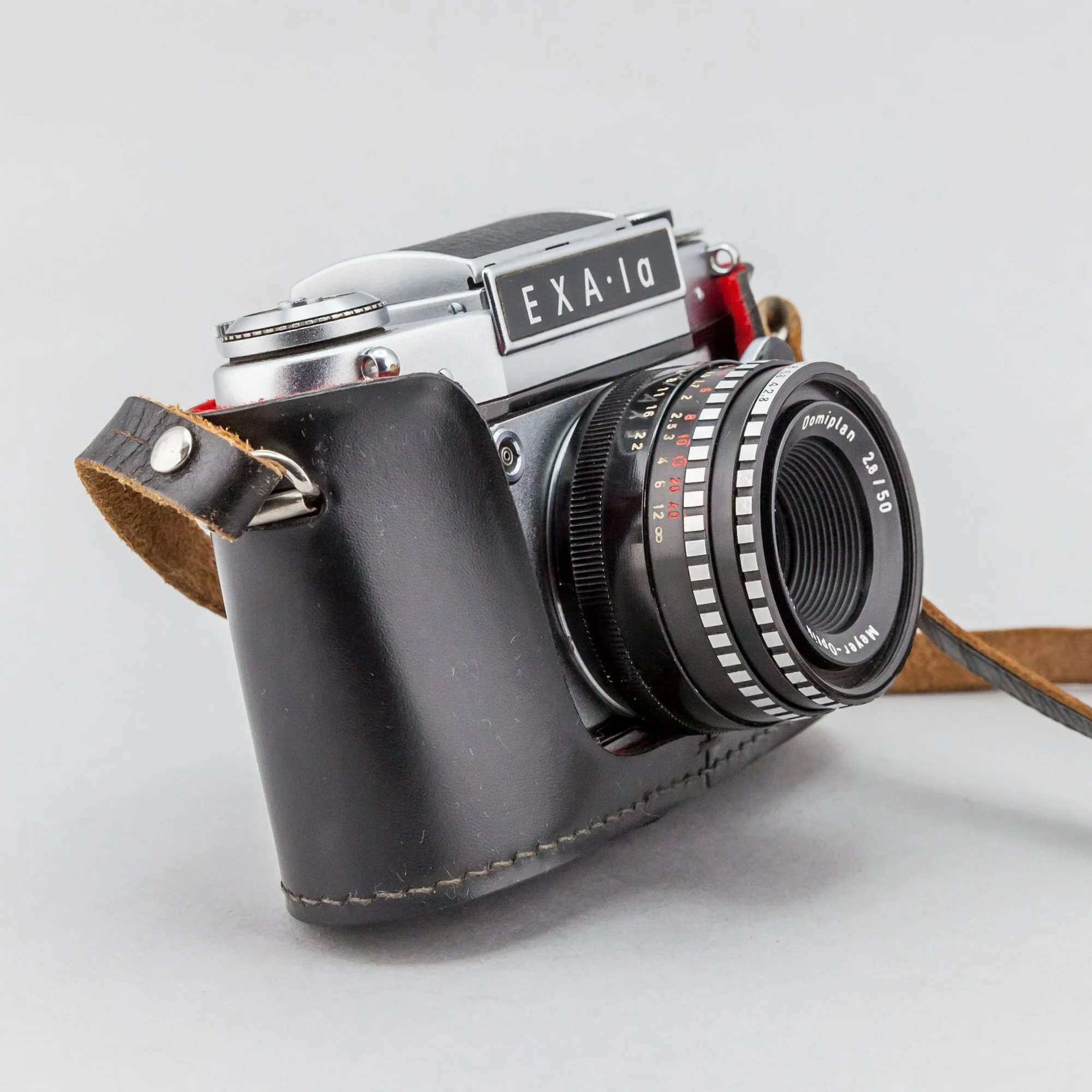

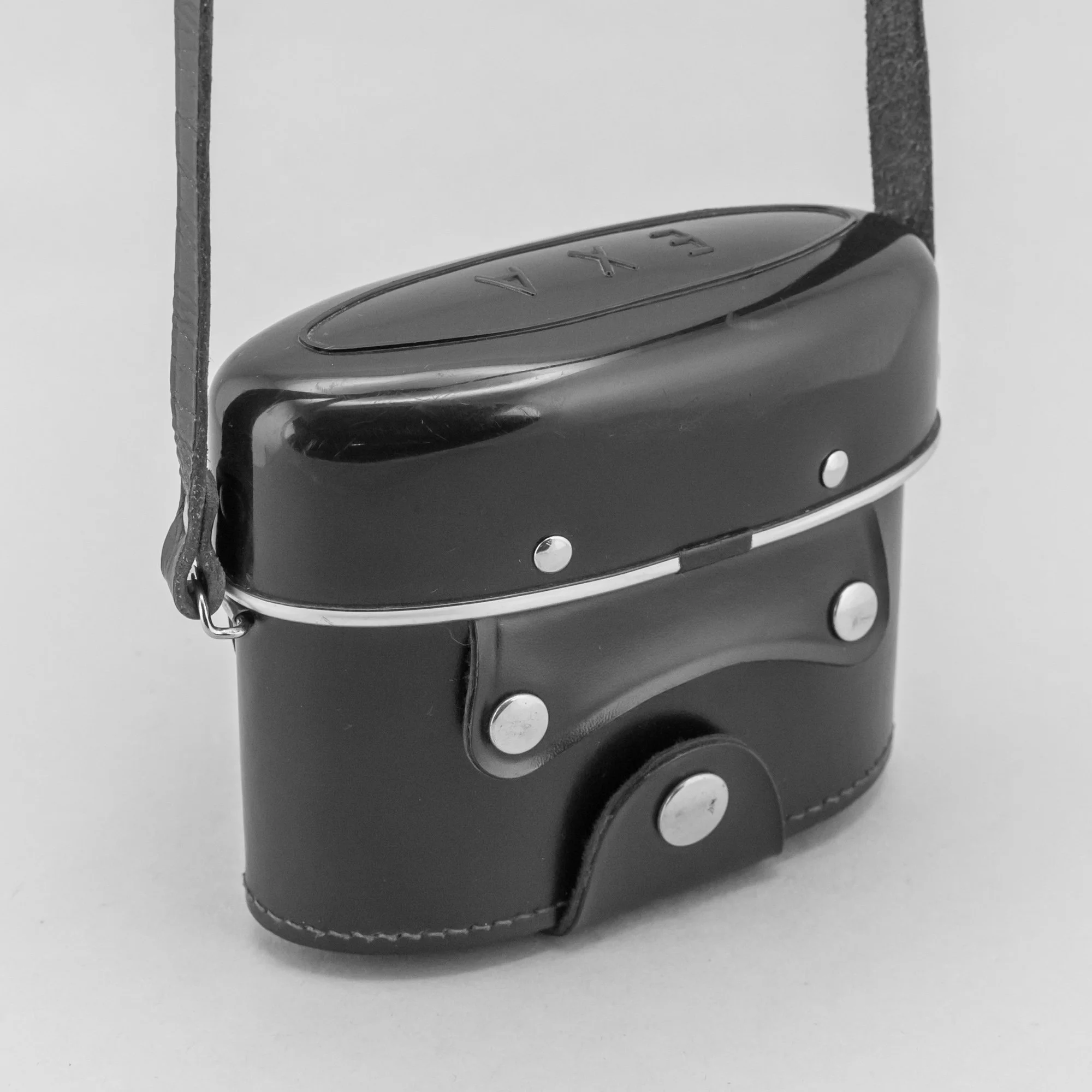

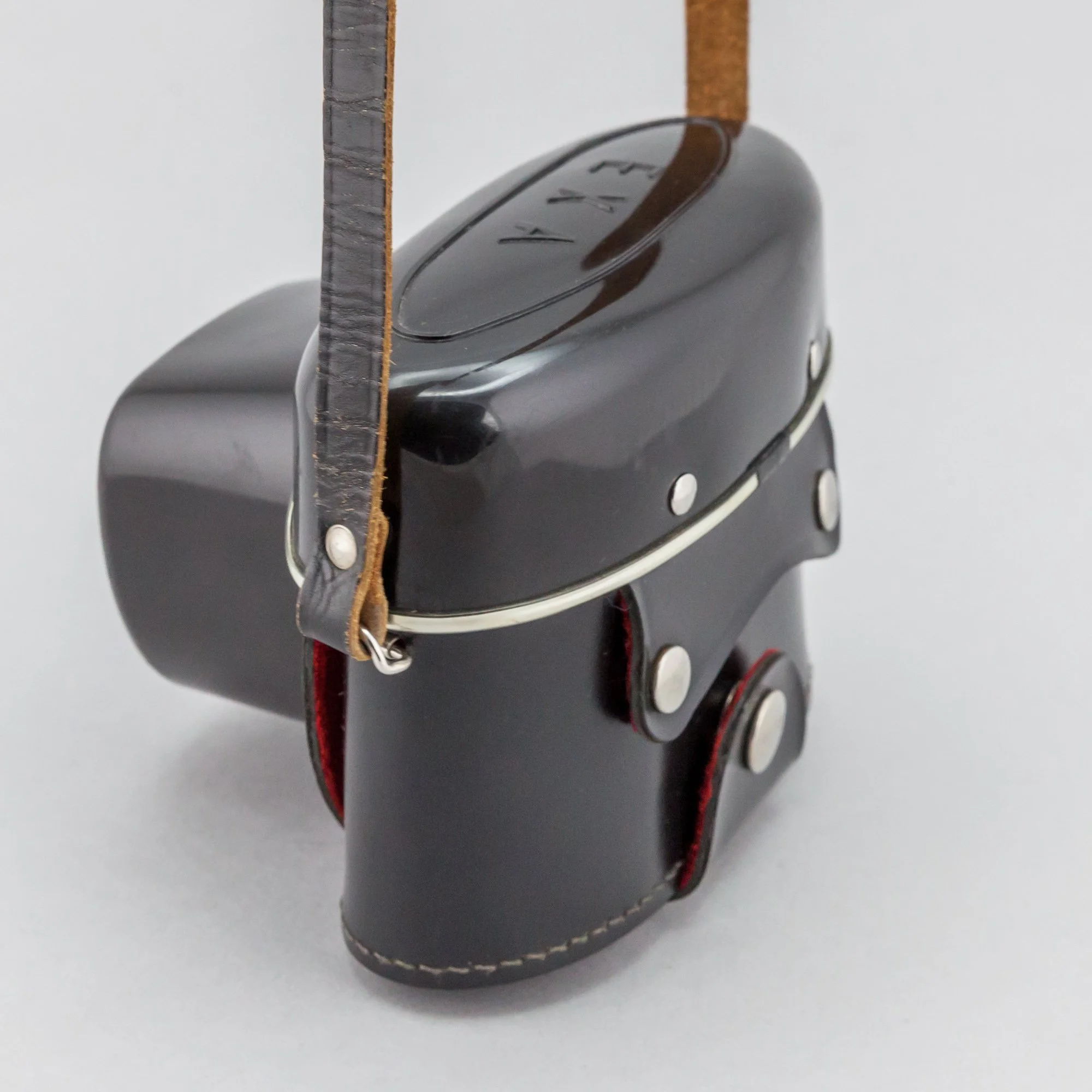

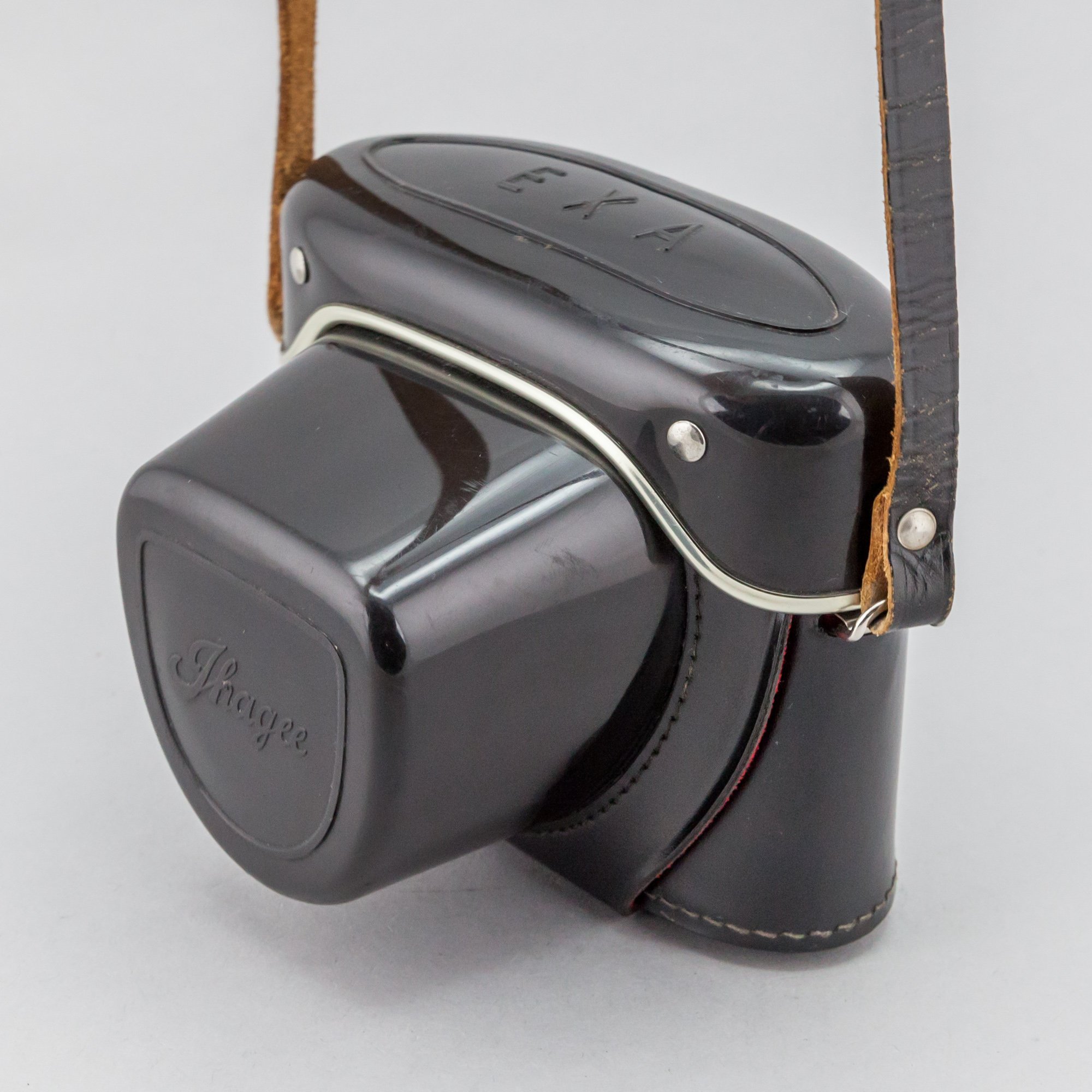

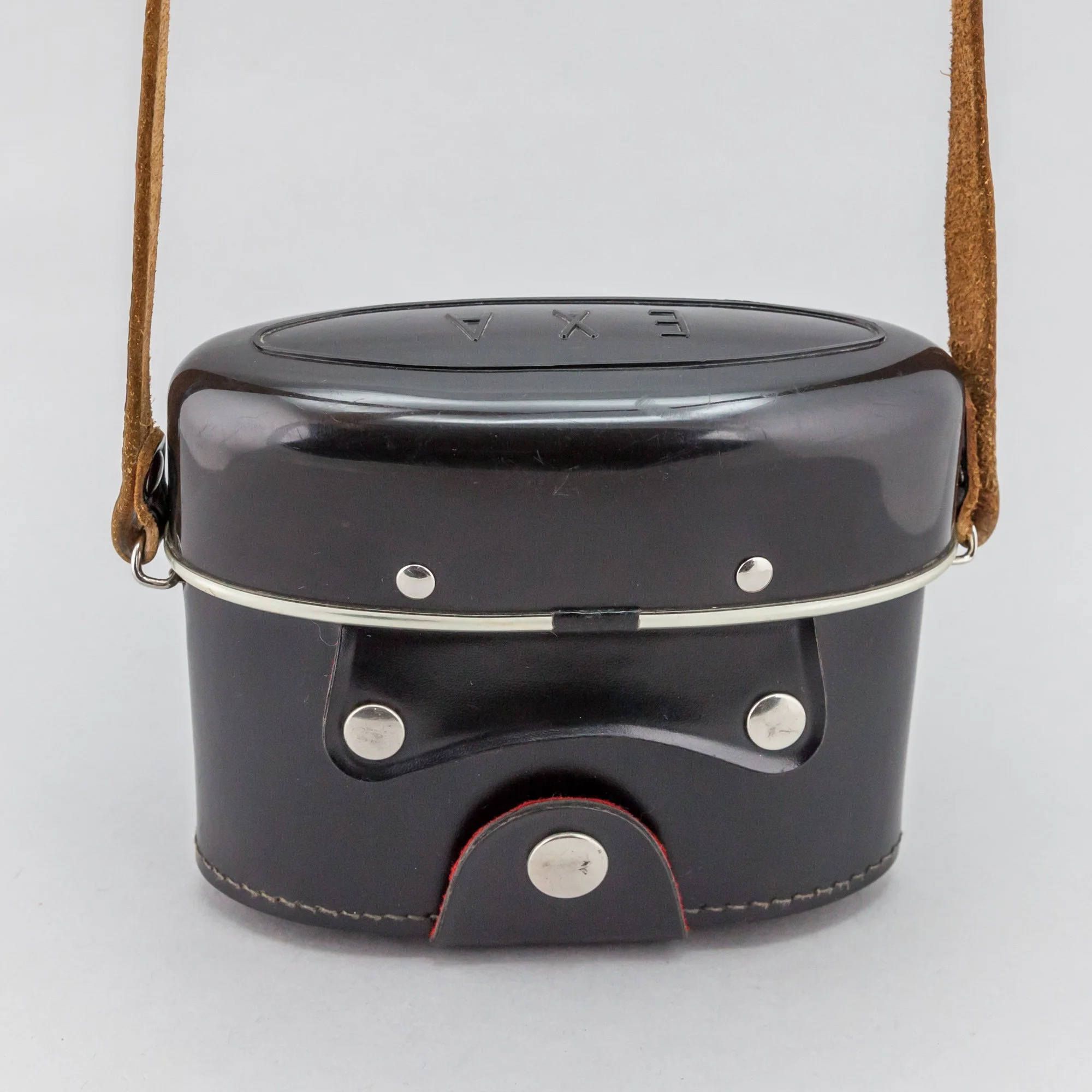

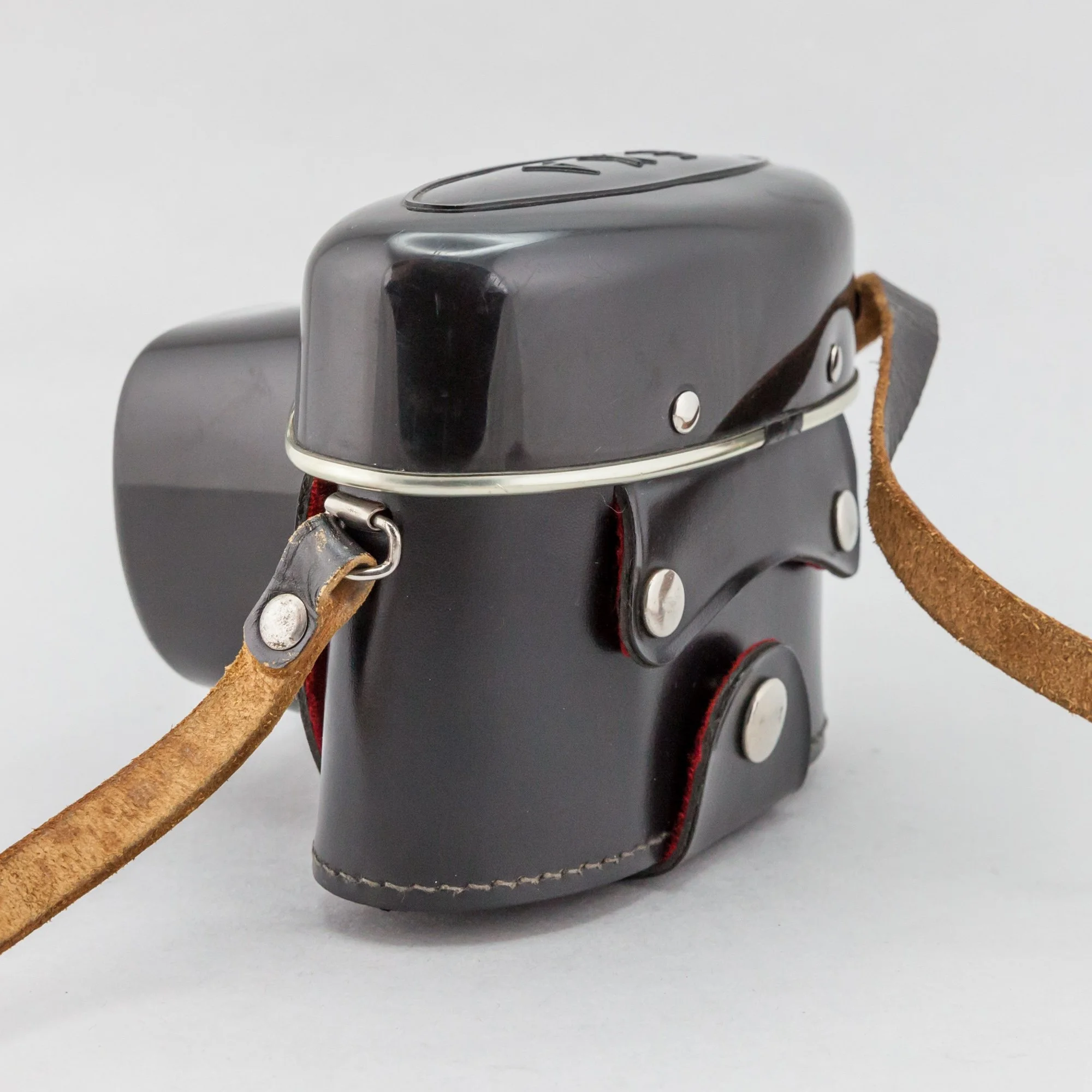

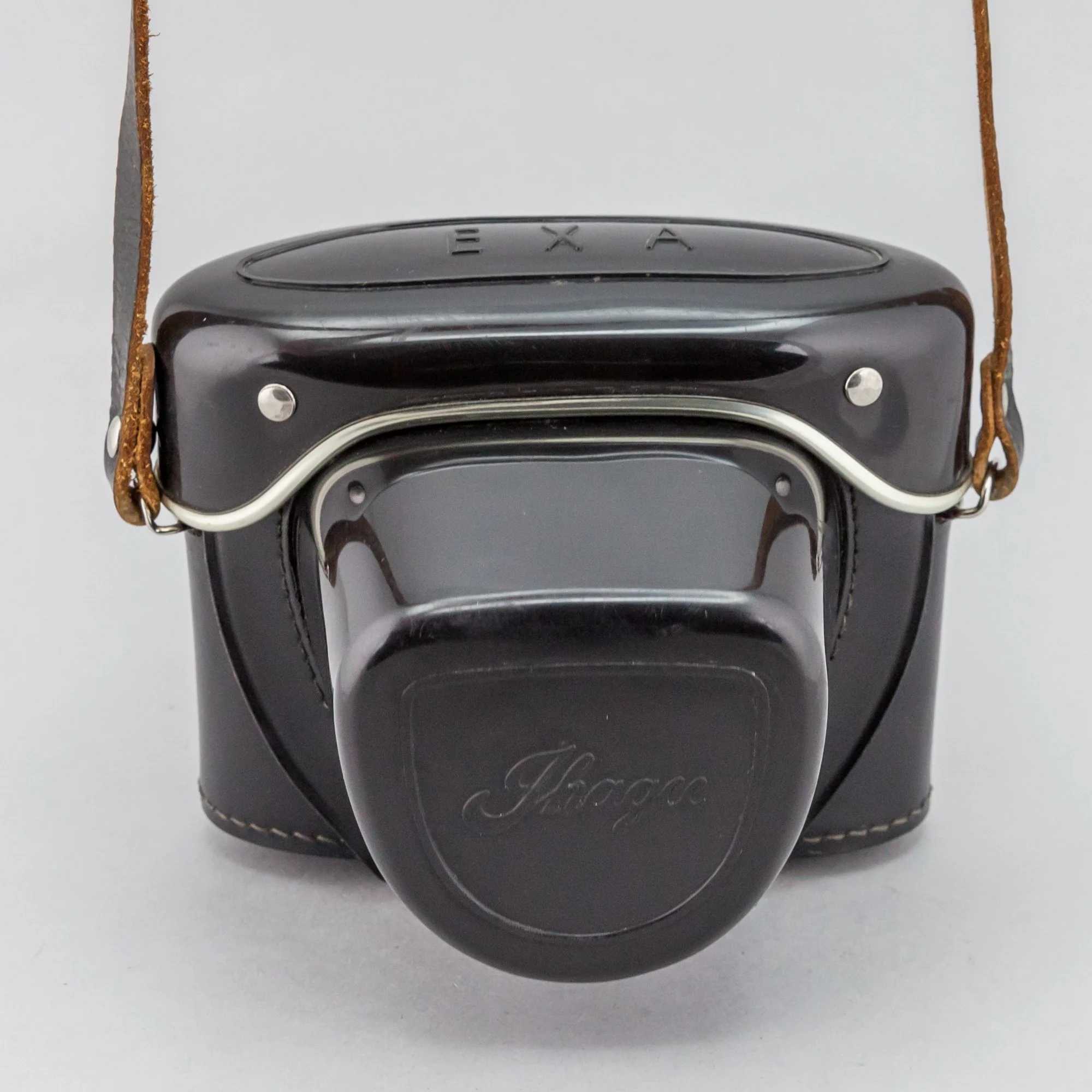

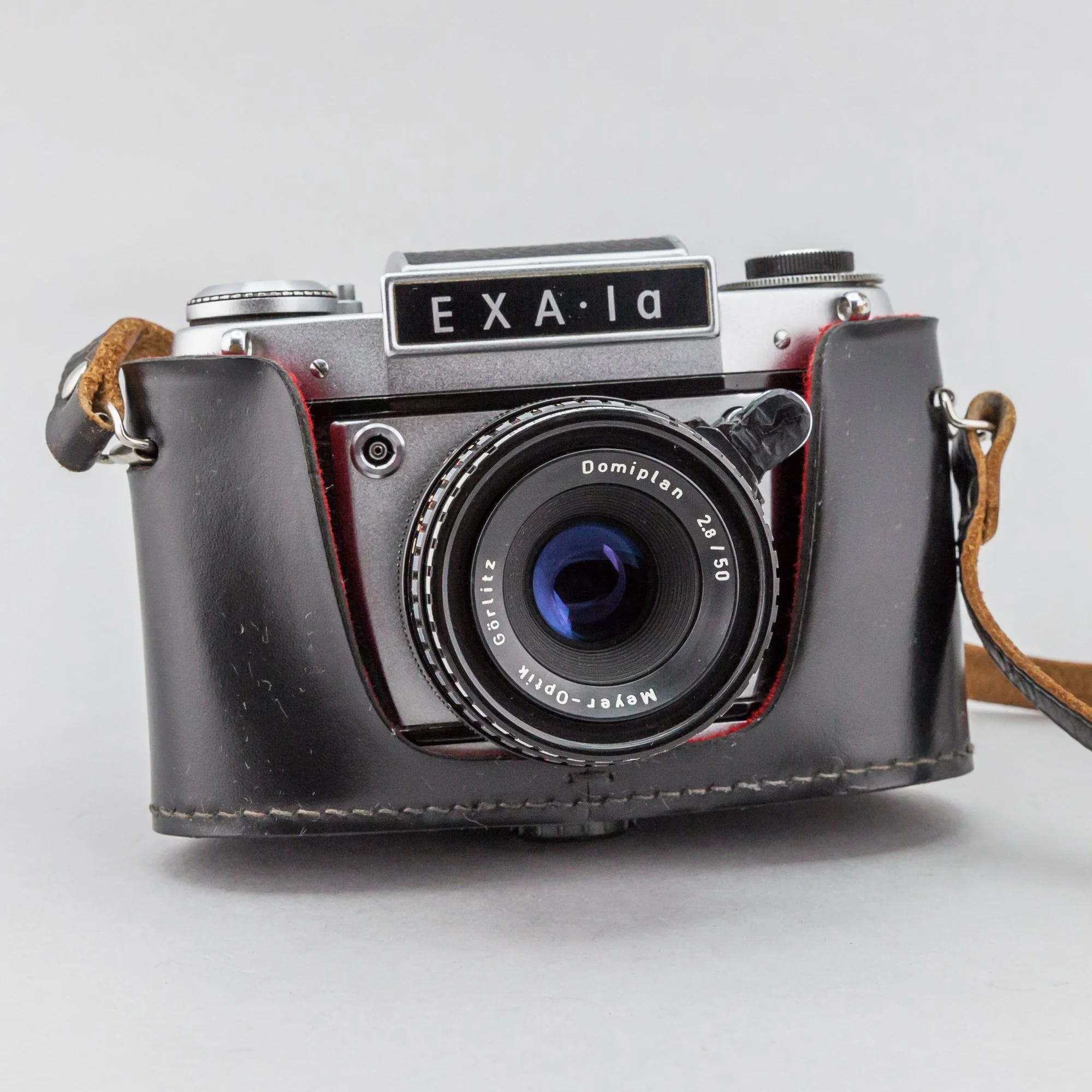

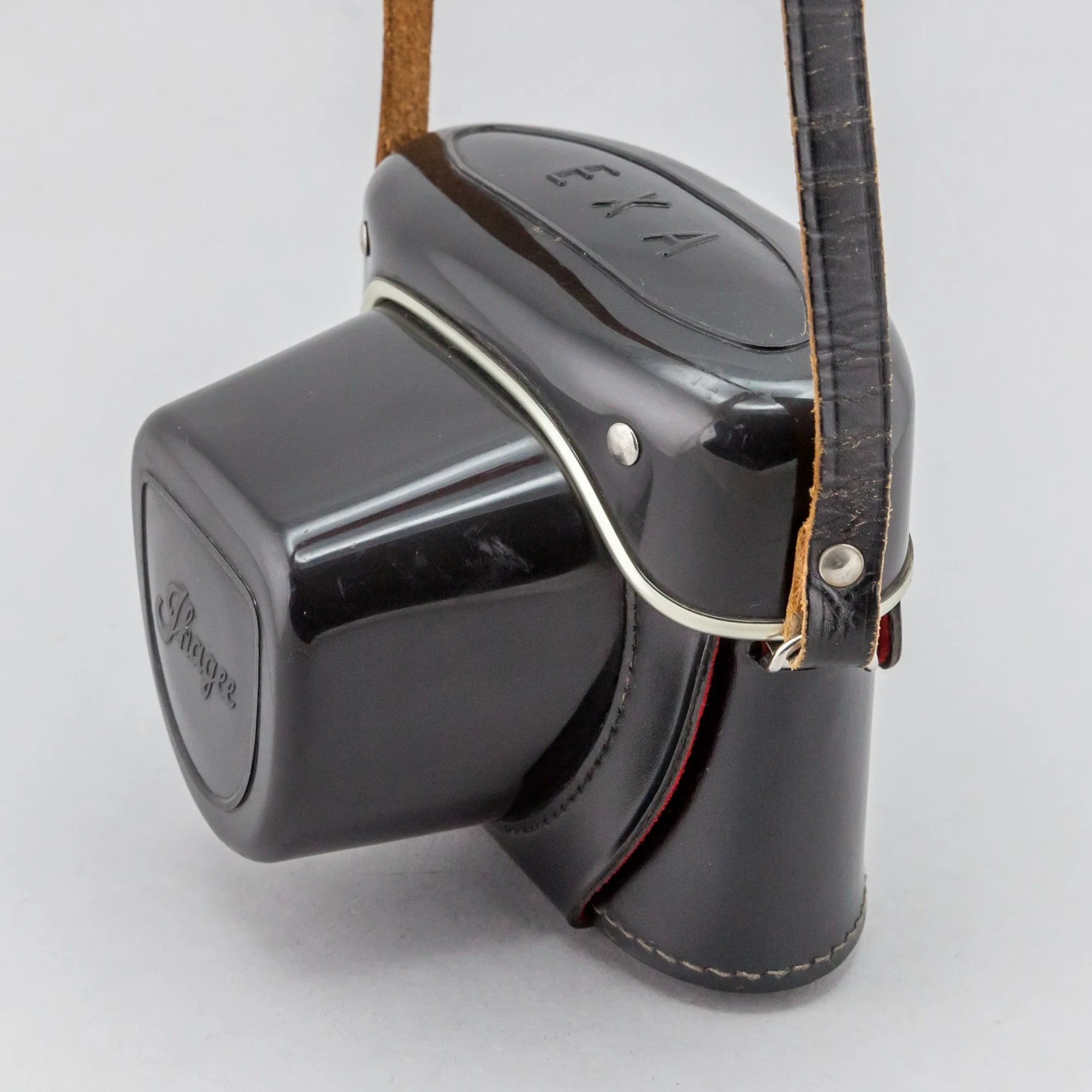

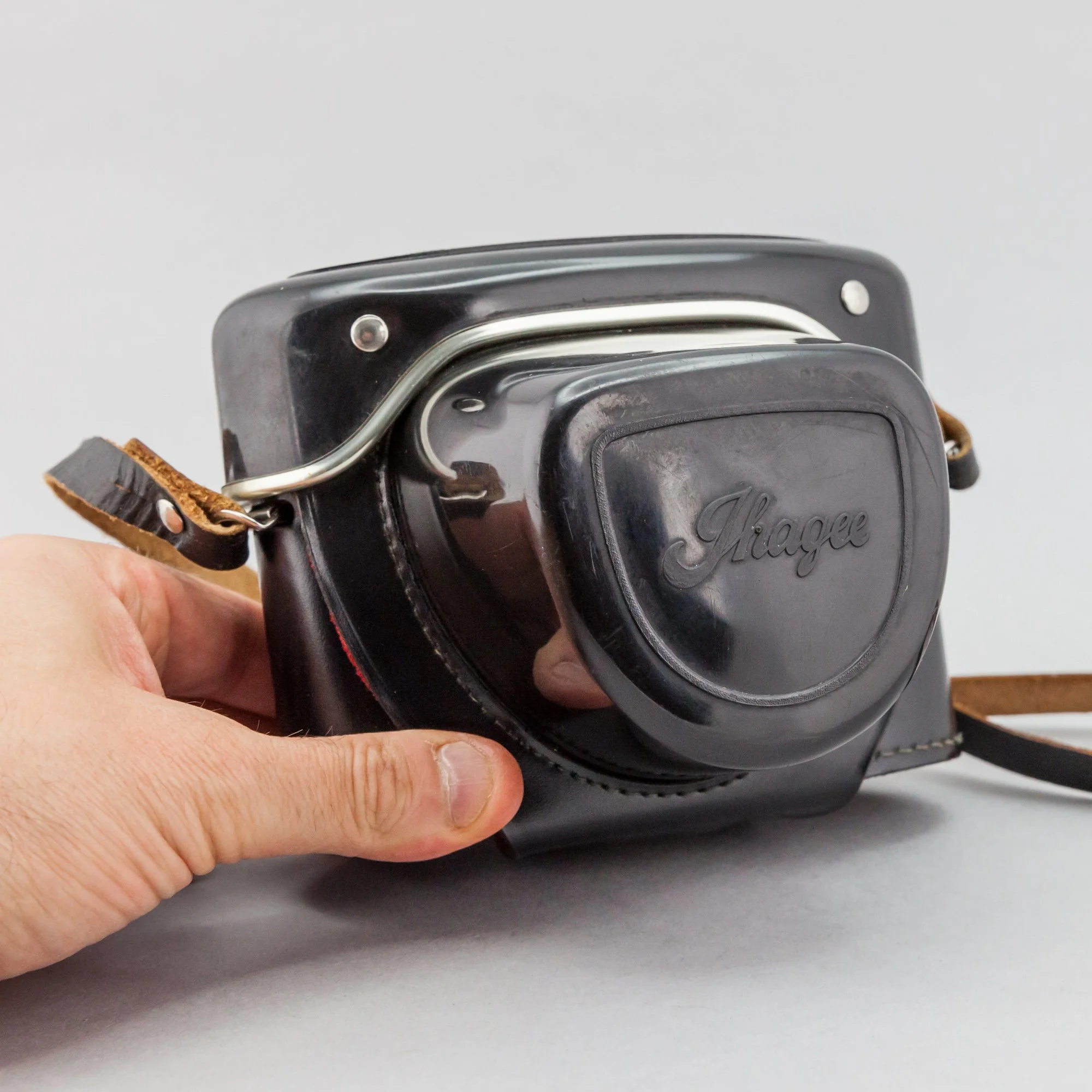

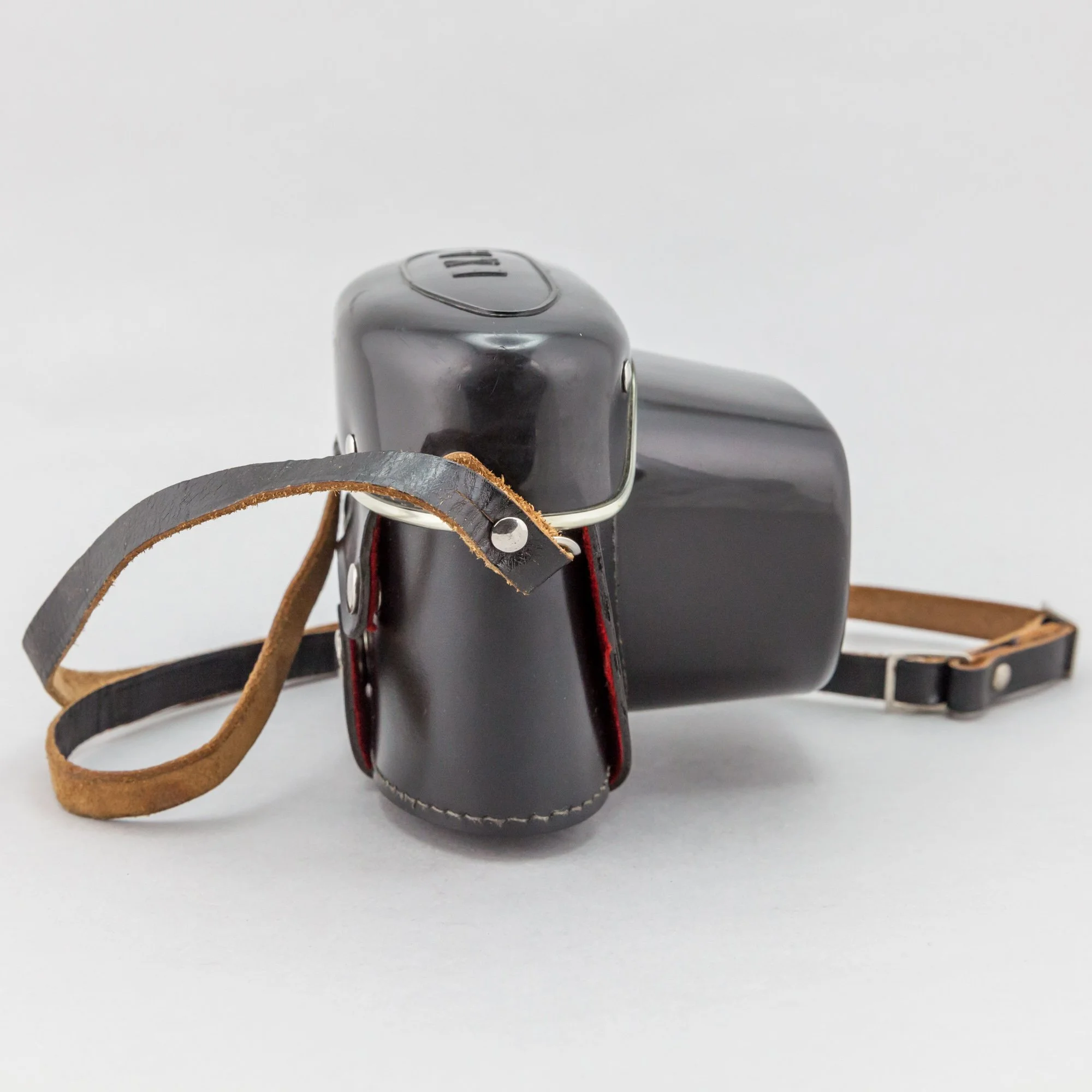

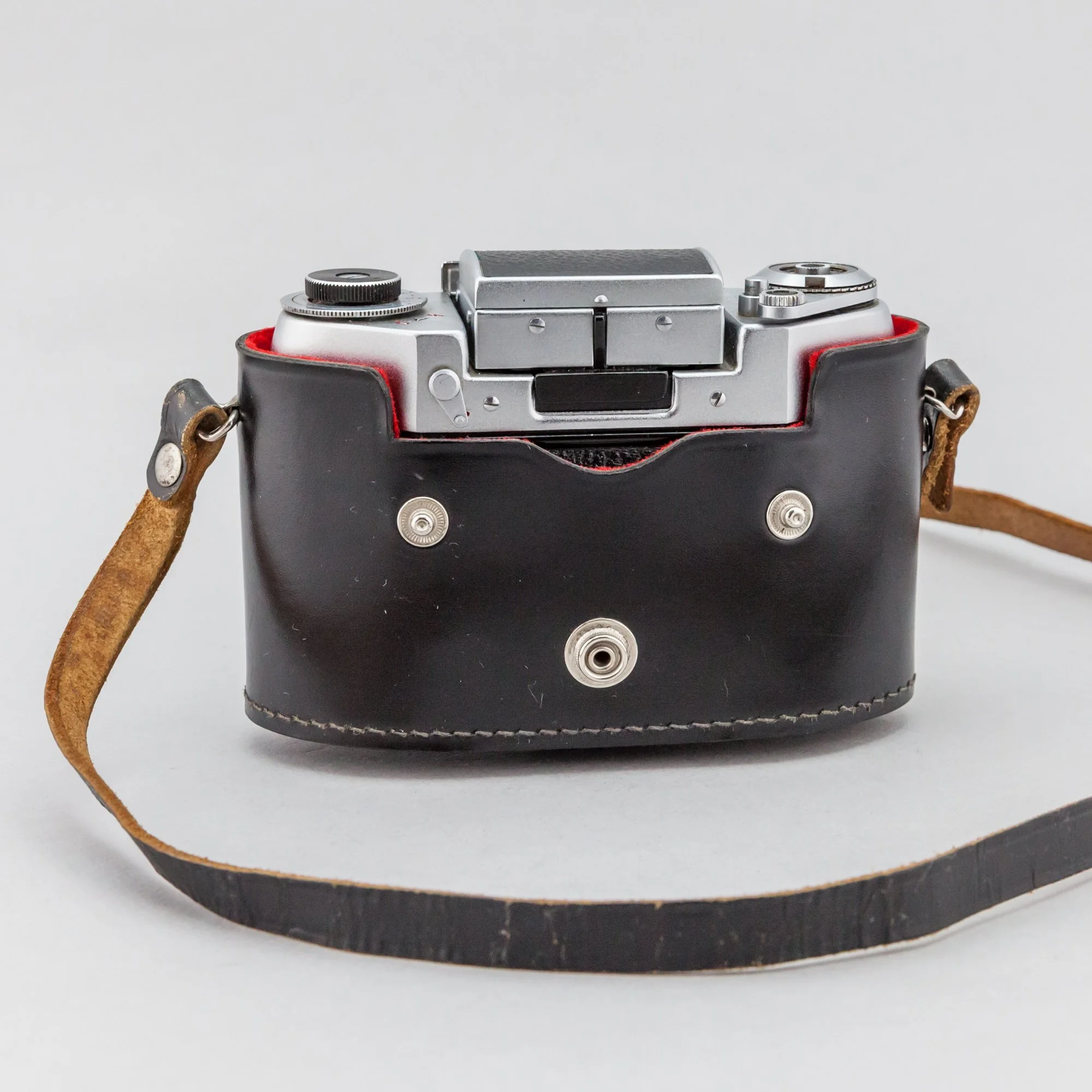

With original black case.
Working but NOT FILM TESTED
Good condition, little to no signs of wear.

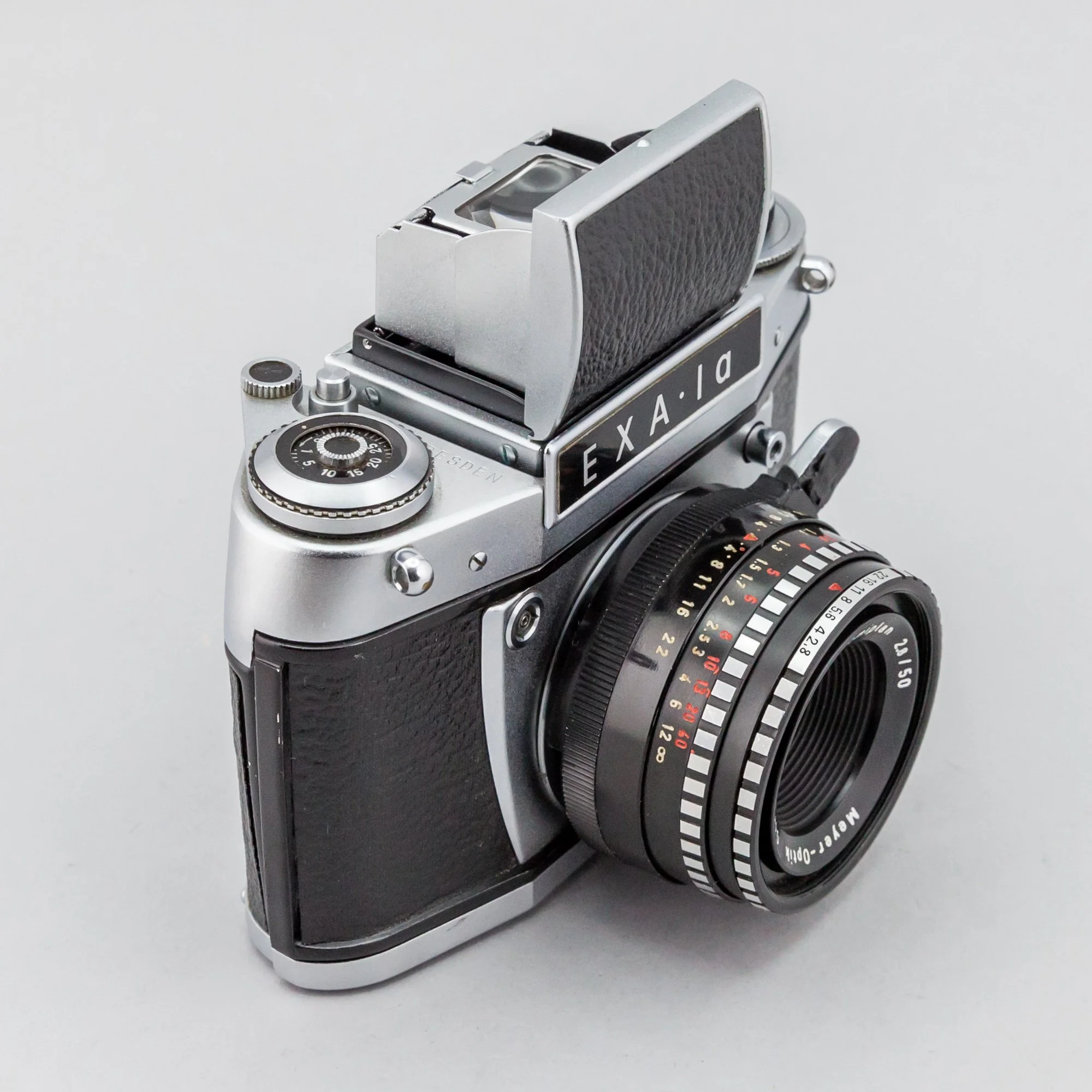

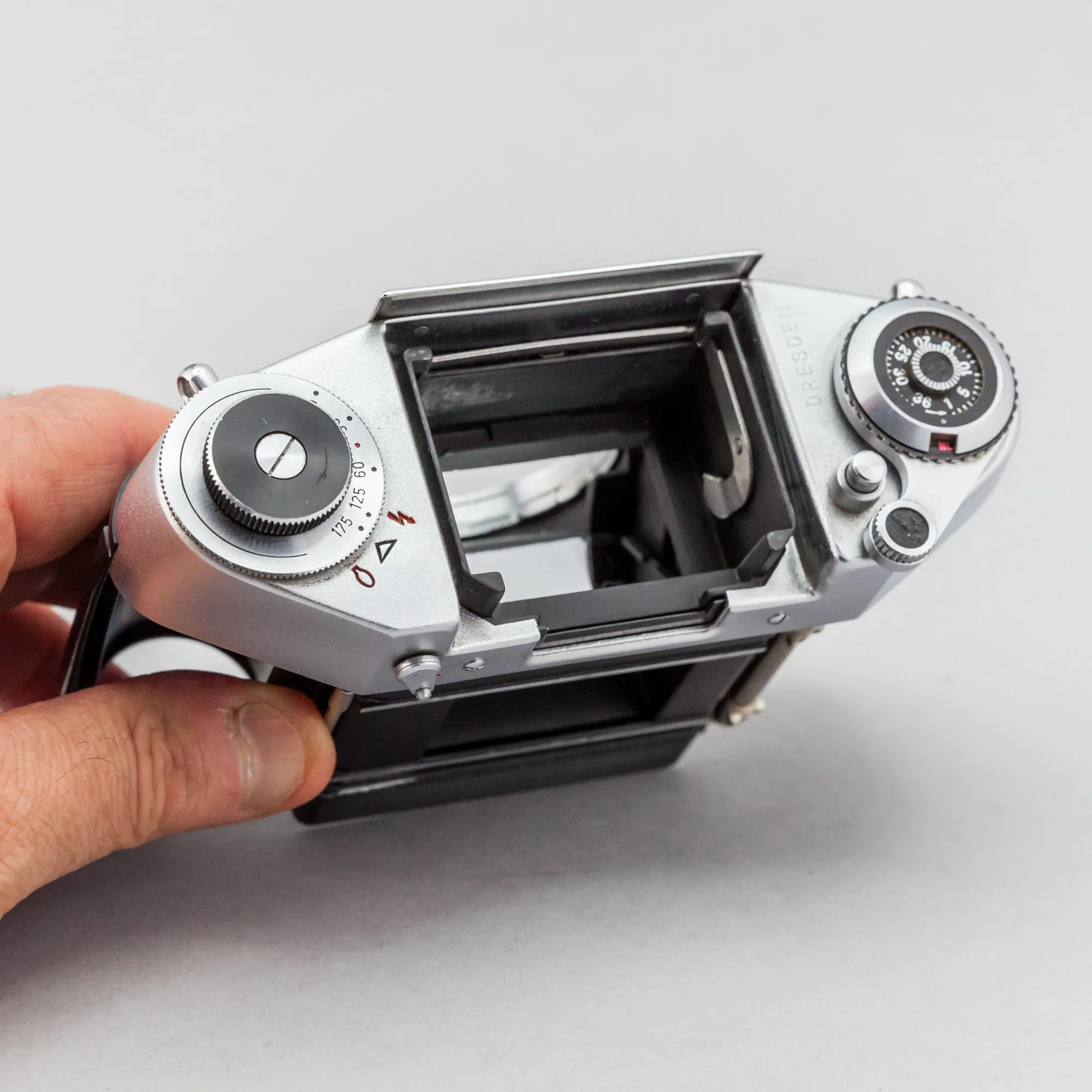

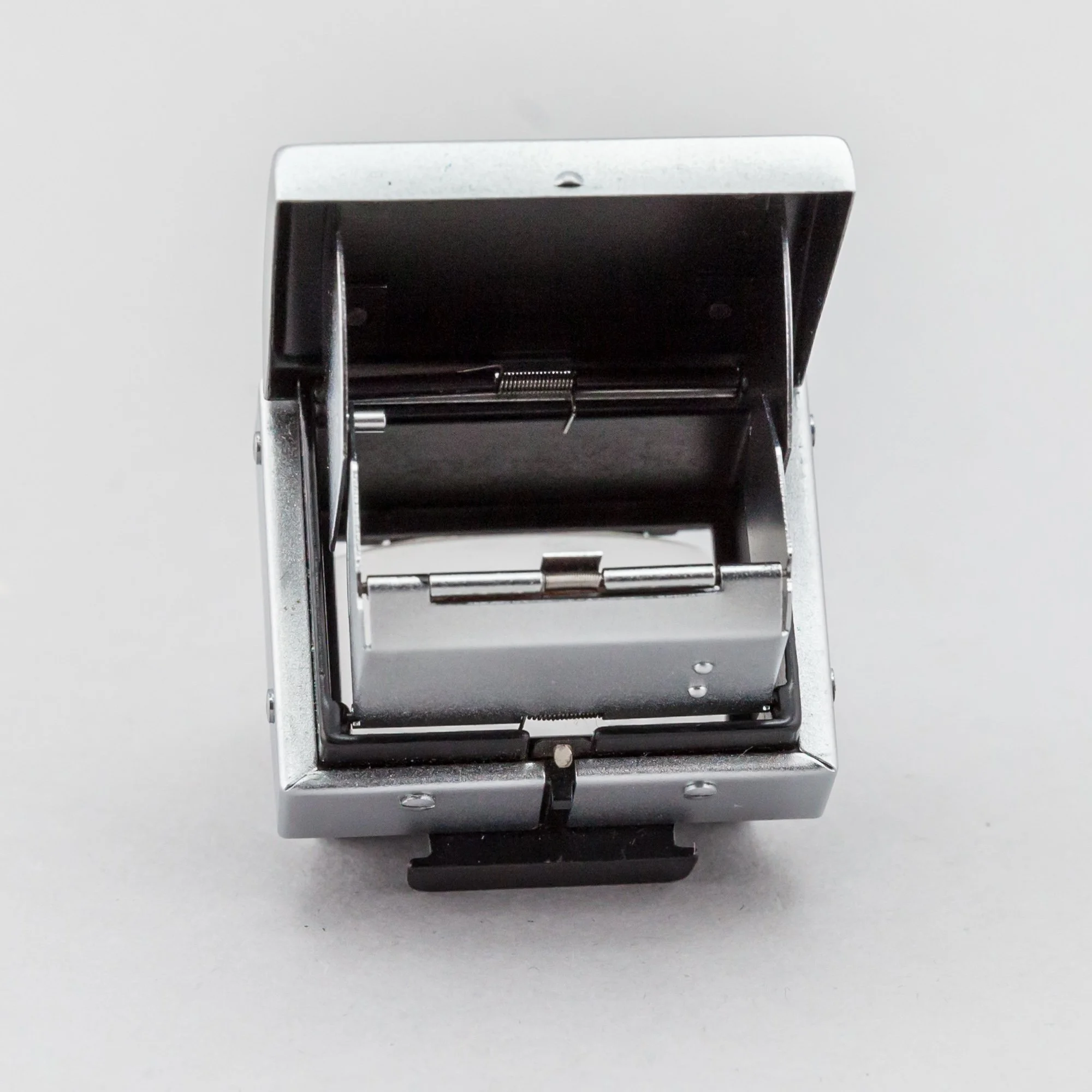

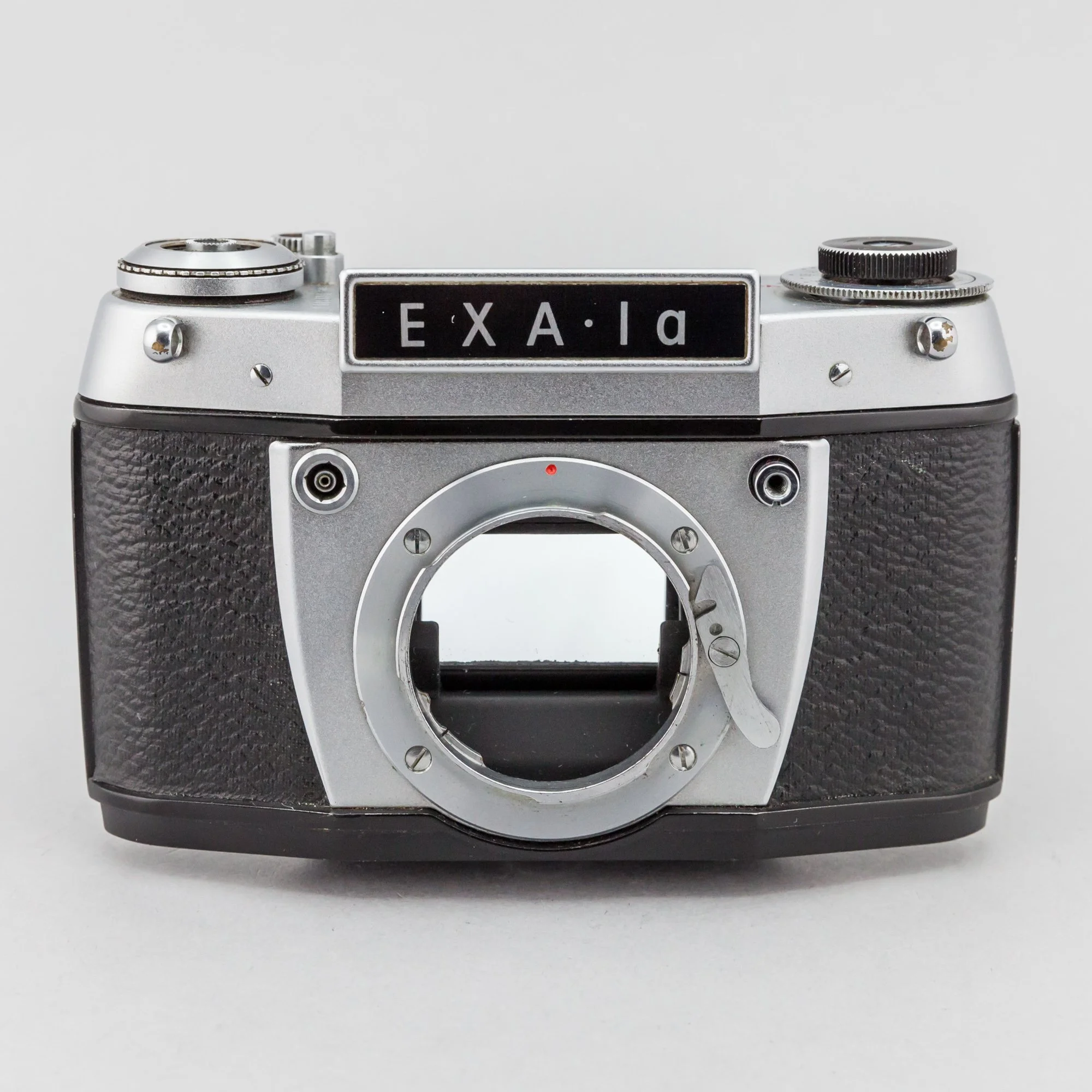

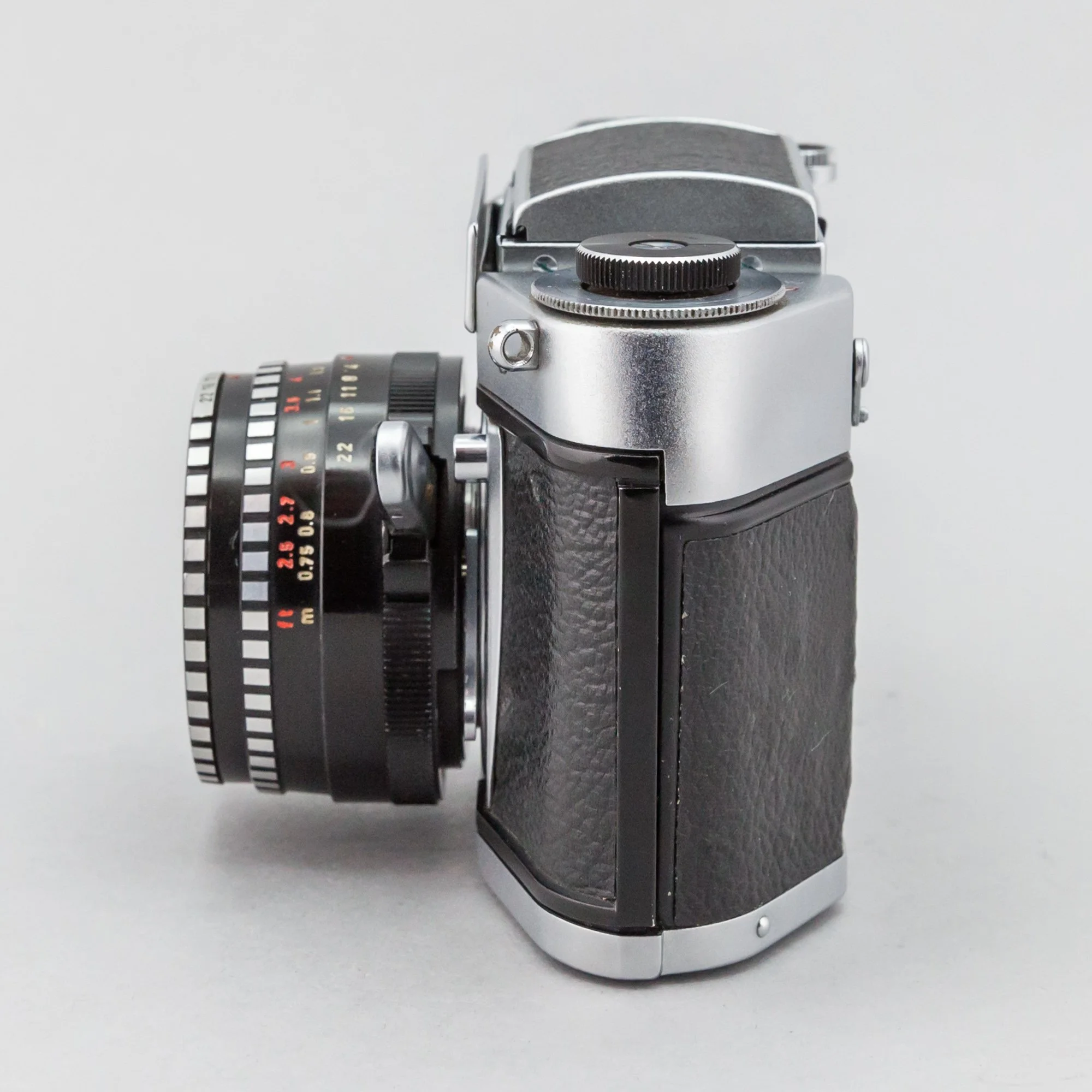

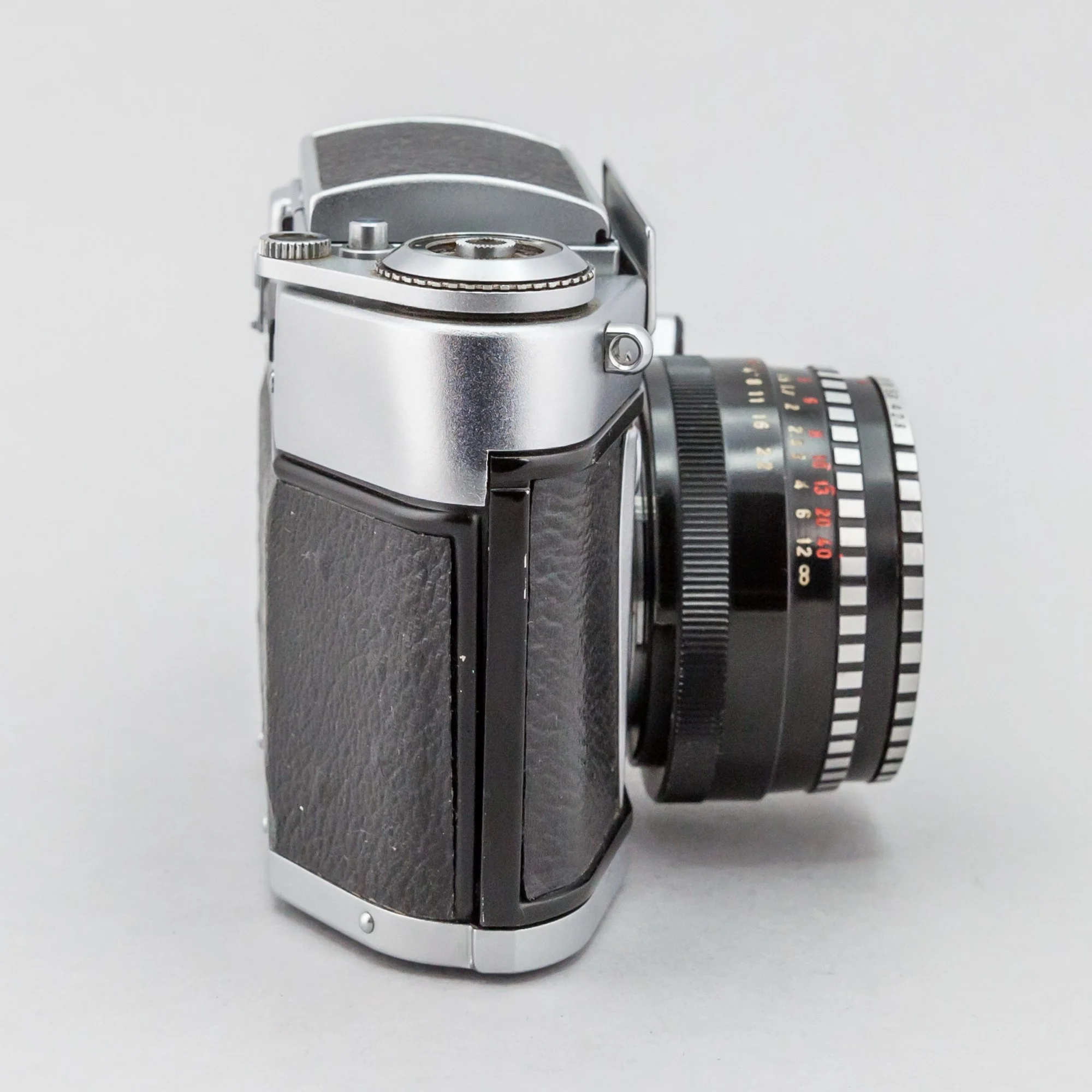

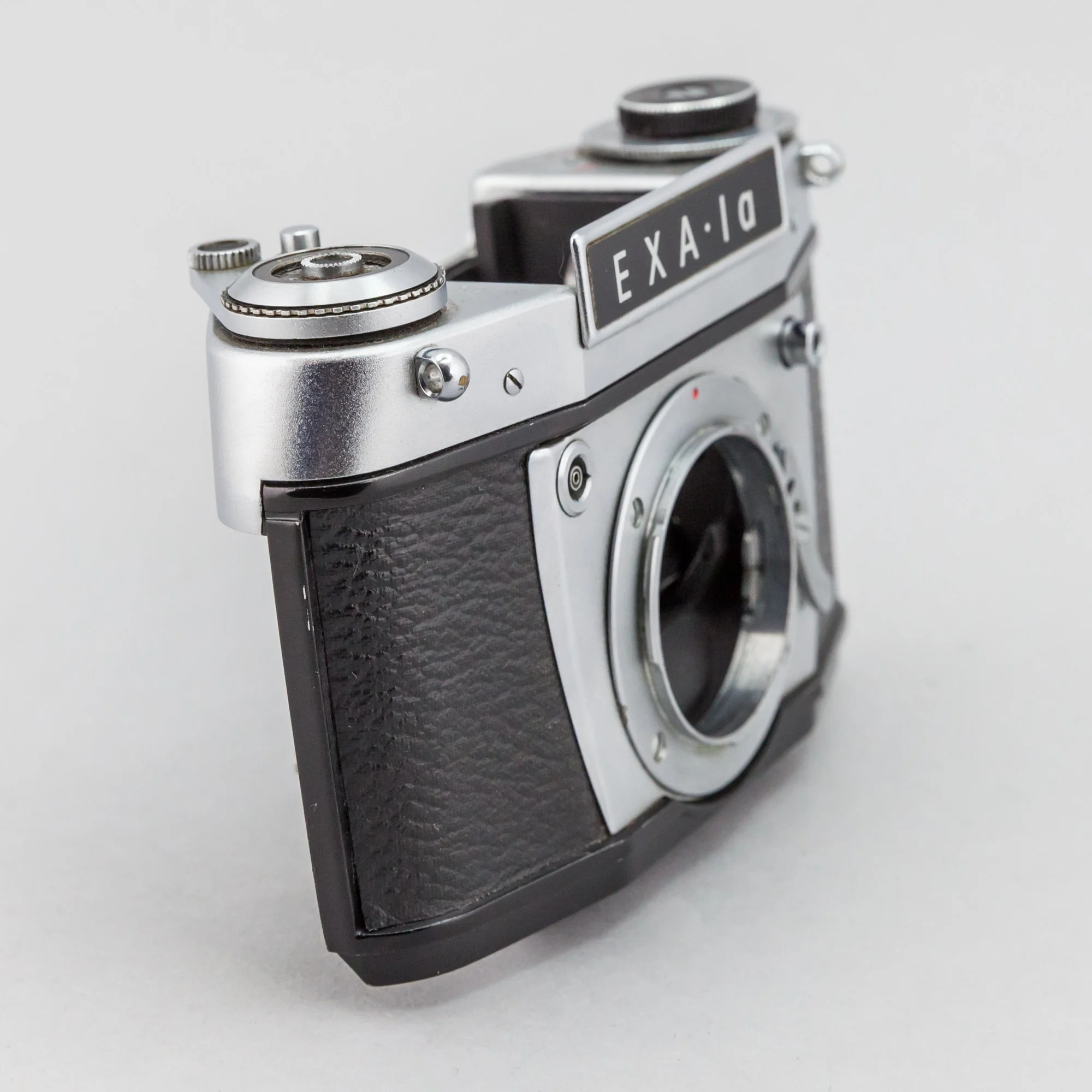

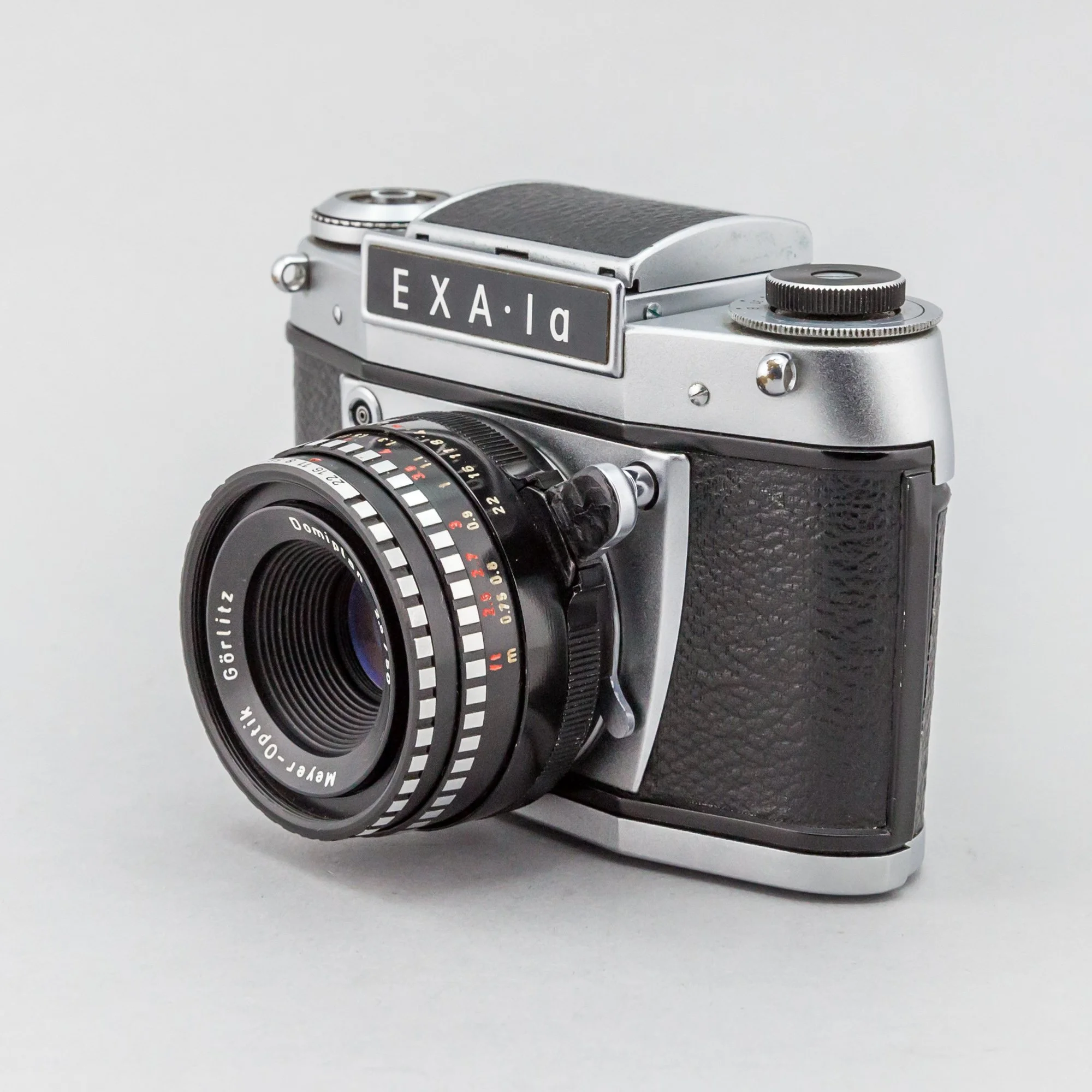

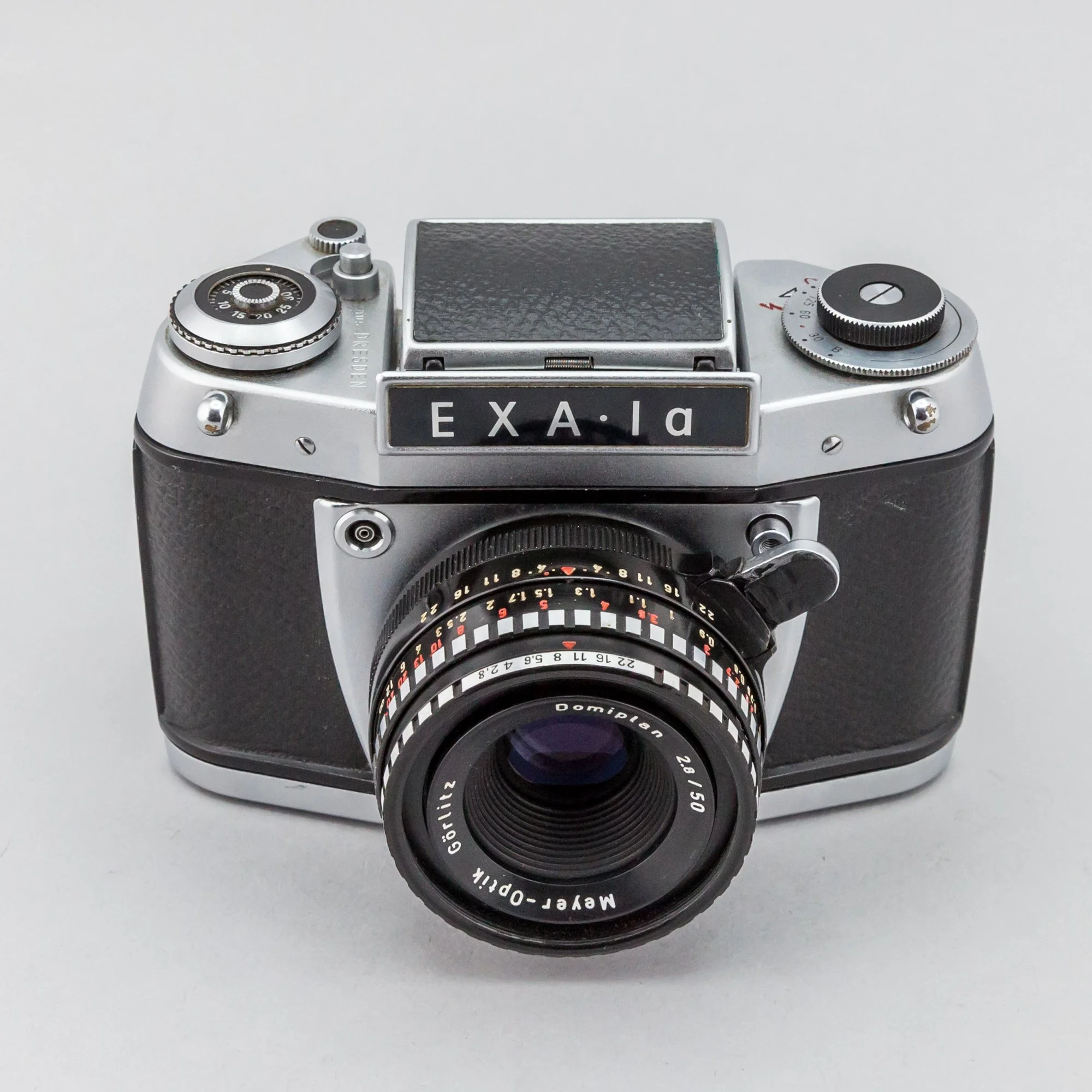

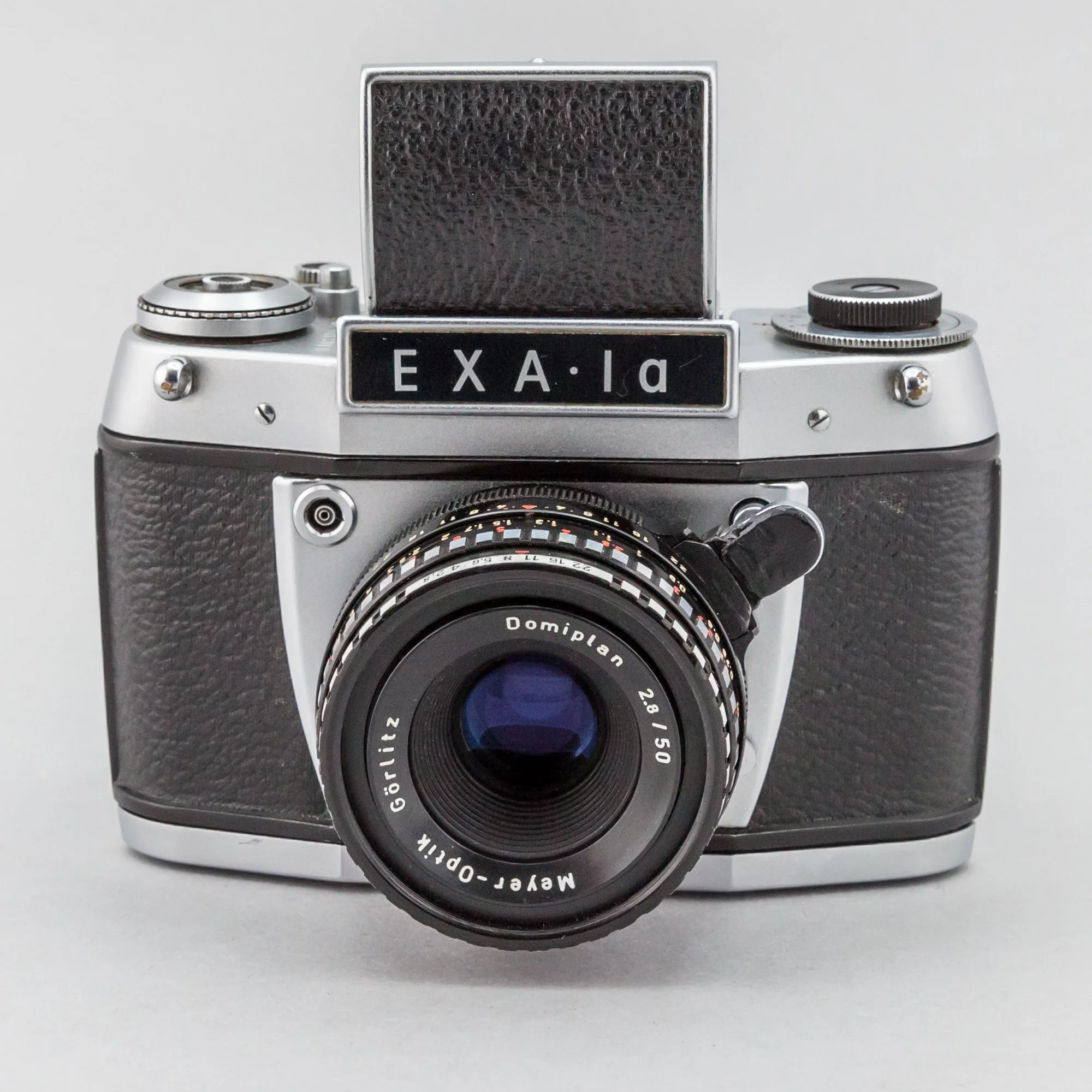

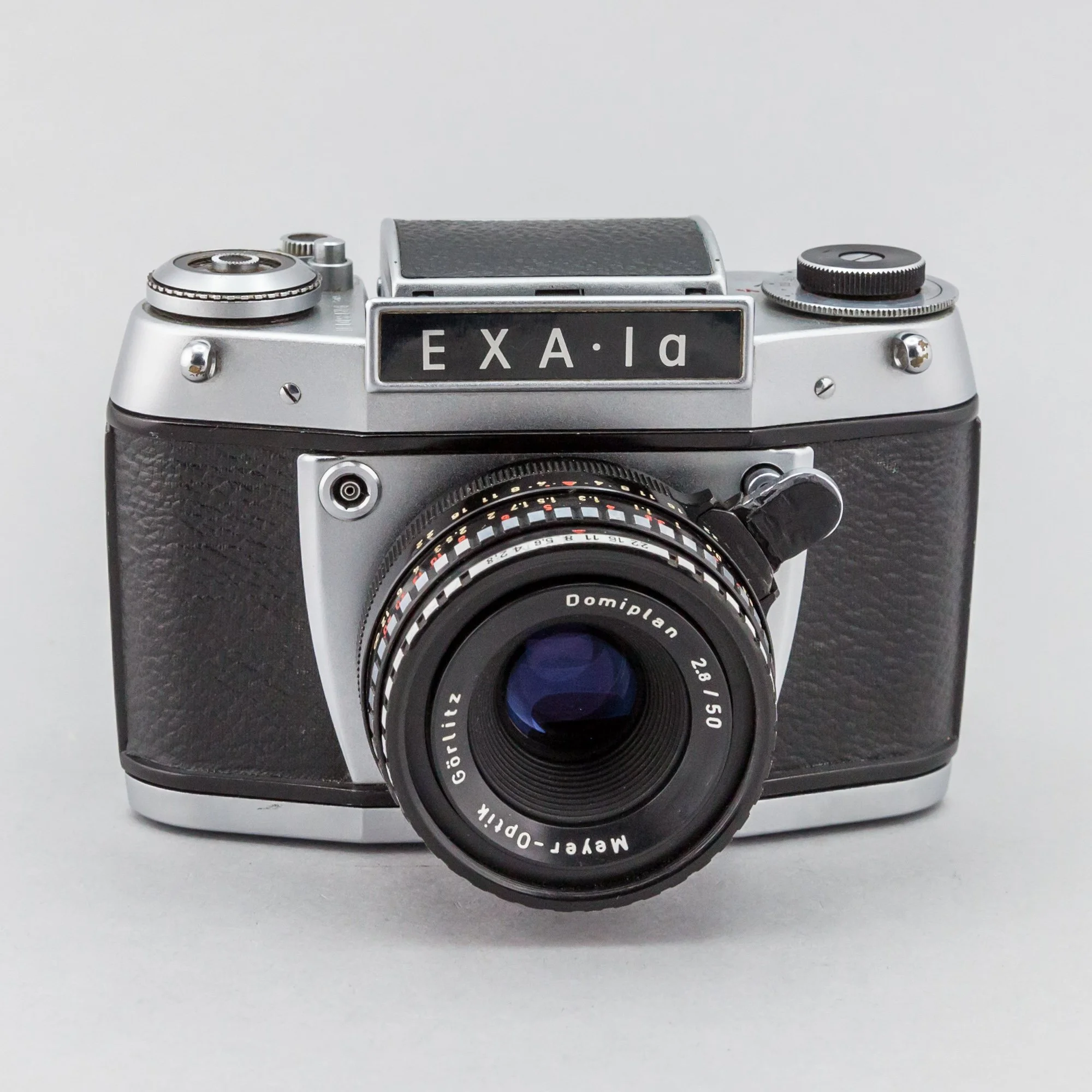

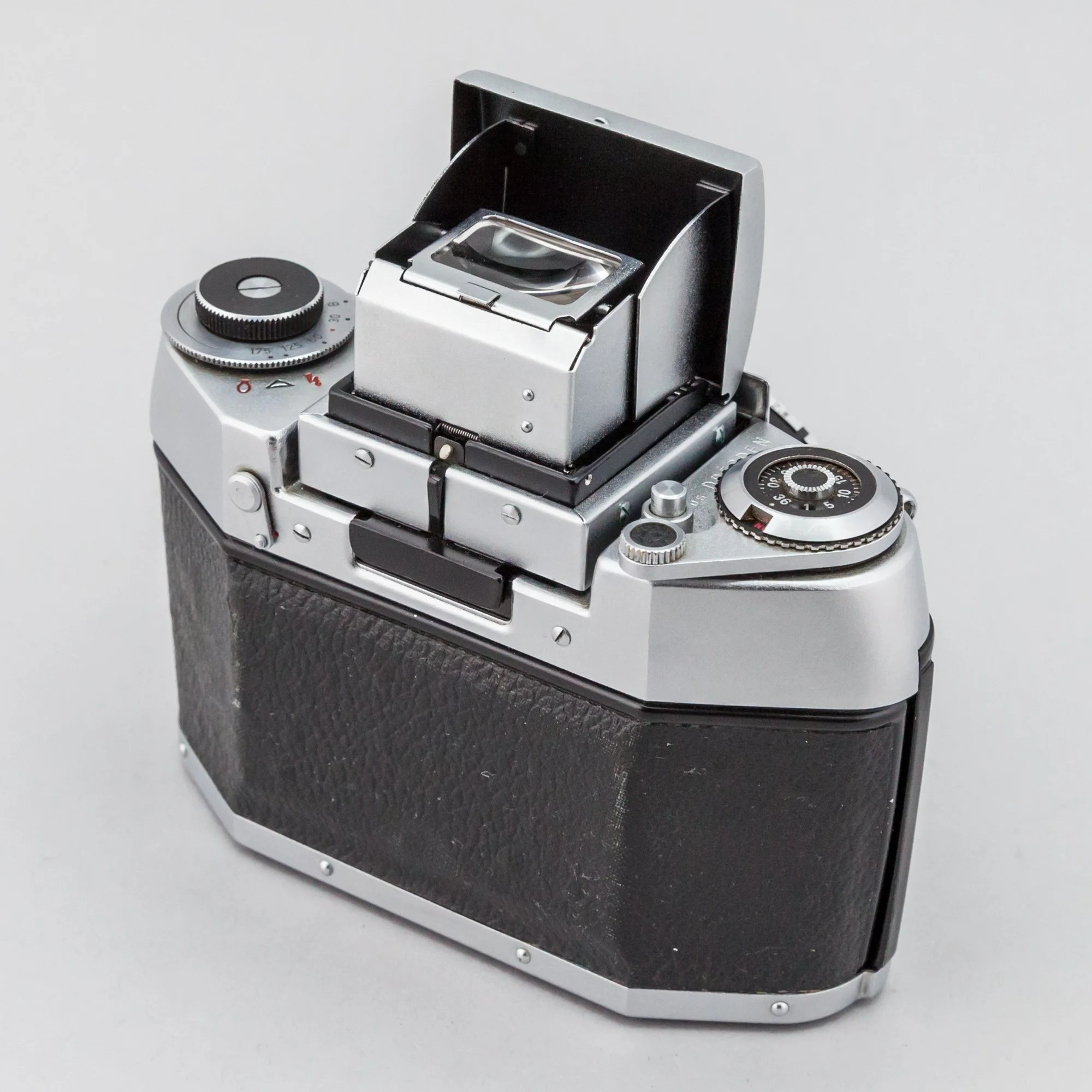

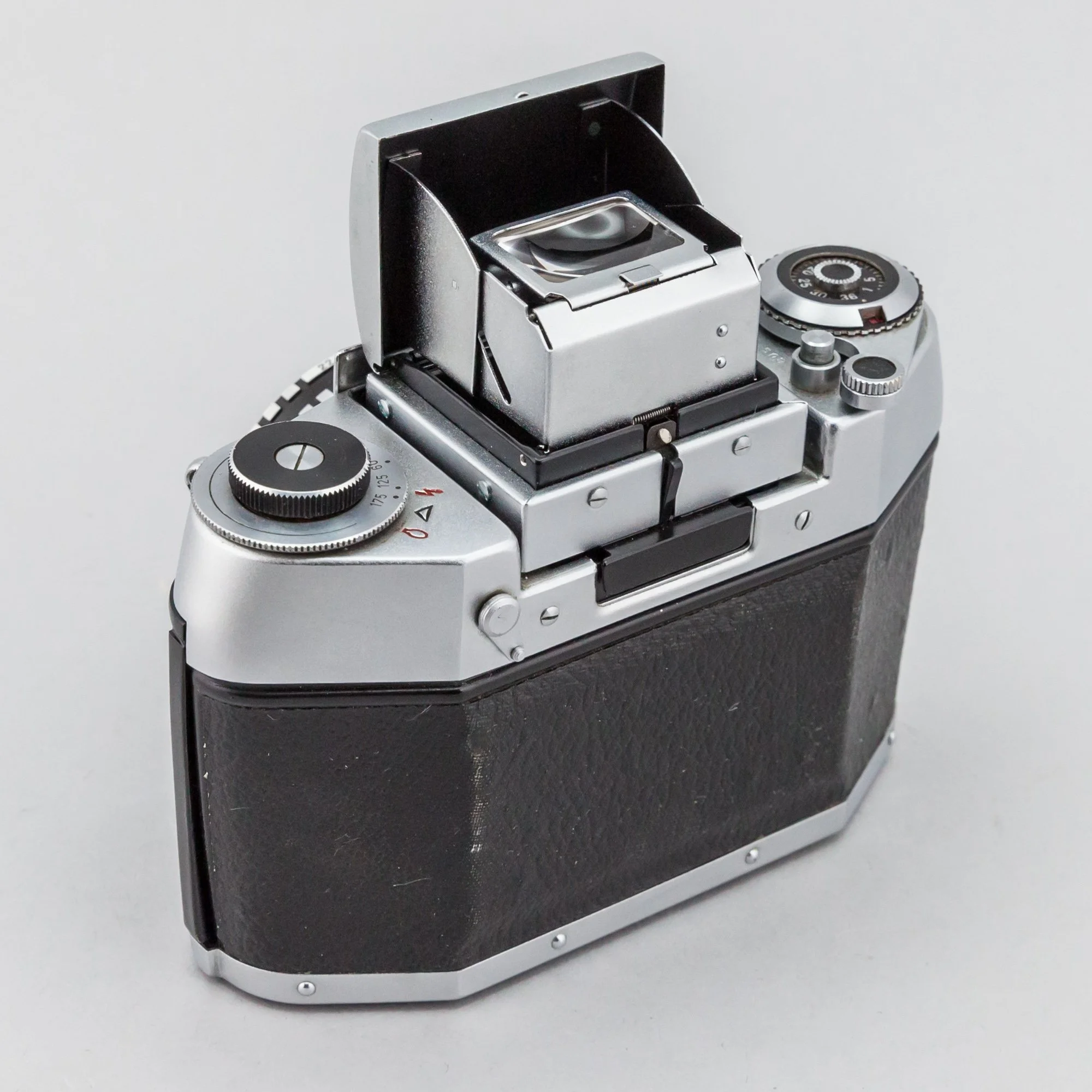

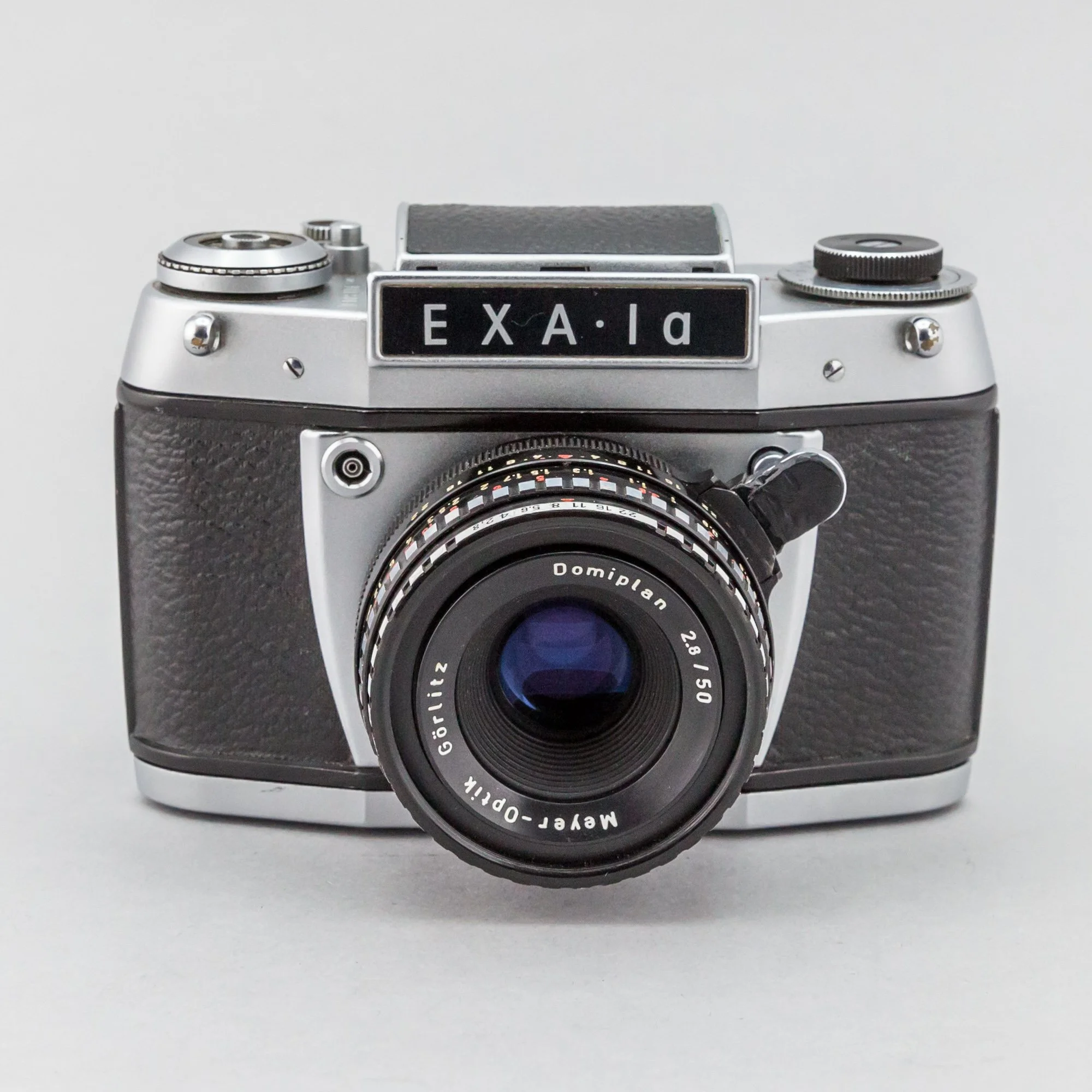

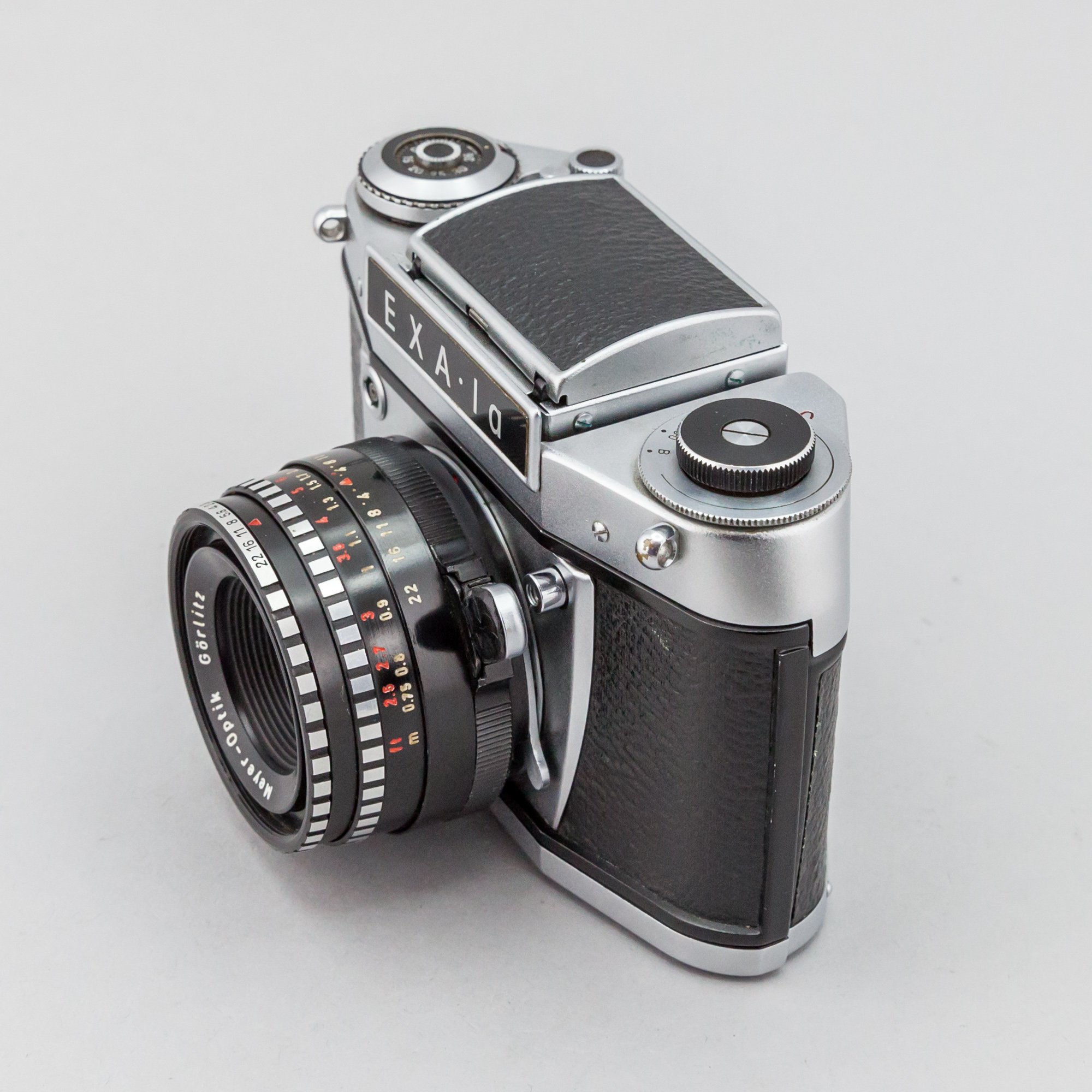

The EXA 1a is a mechanical SLR camera body with collapsible top-view finder. It's made for lenses with the EXA-bayonet fitting, among them many of the famous old Meyer-Optik Görlitz lenses. One of the standard lenses made for the EXA is the Meyer-Optik Domiplan 1:2.8/50mm . When this lens is mounted on the EXA its aperture release lever is located exactly over the shutter release button which is placed on the camera's front side beside the lens mount. This construction allows depth-of-field preview by pressing the lens's lever half way, and shutter release with aperture release at once by pressing it down fully. The mirror swings back when the film is advanced.

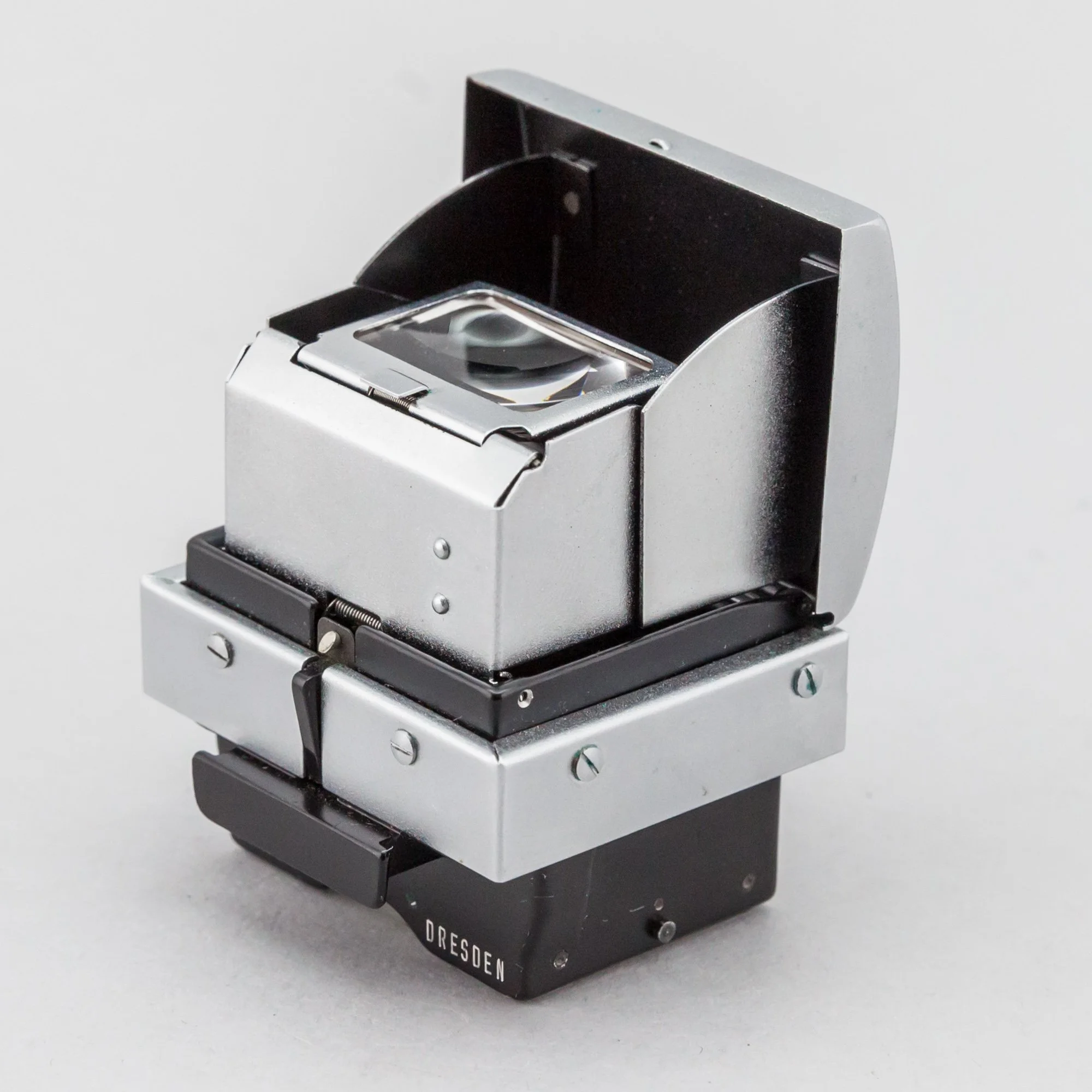

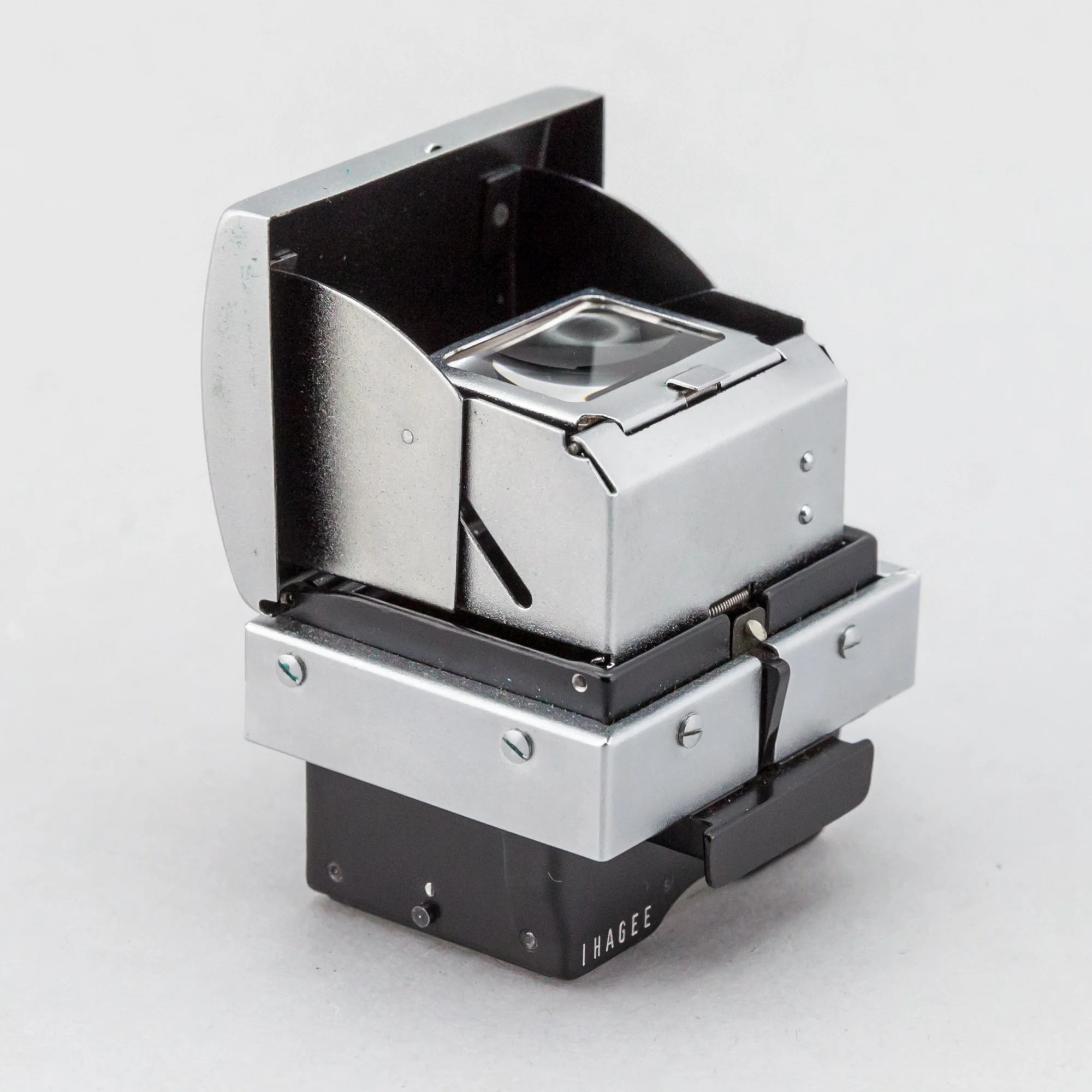

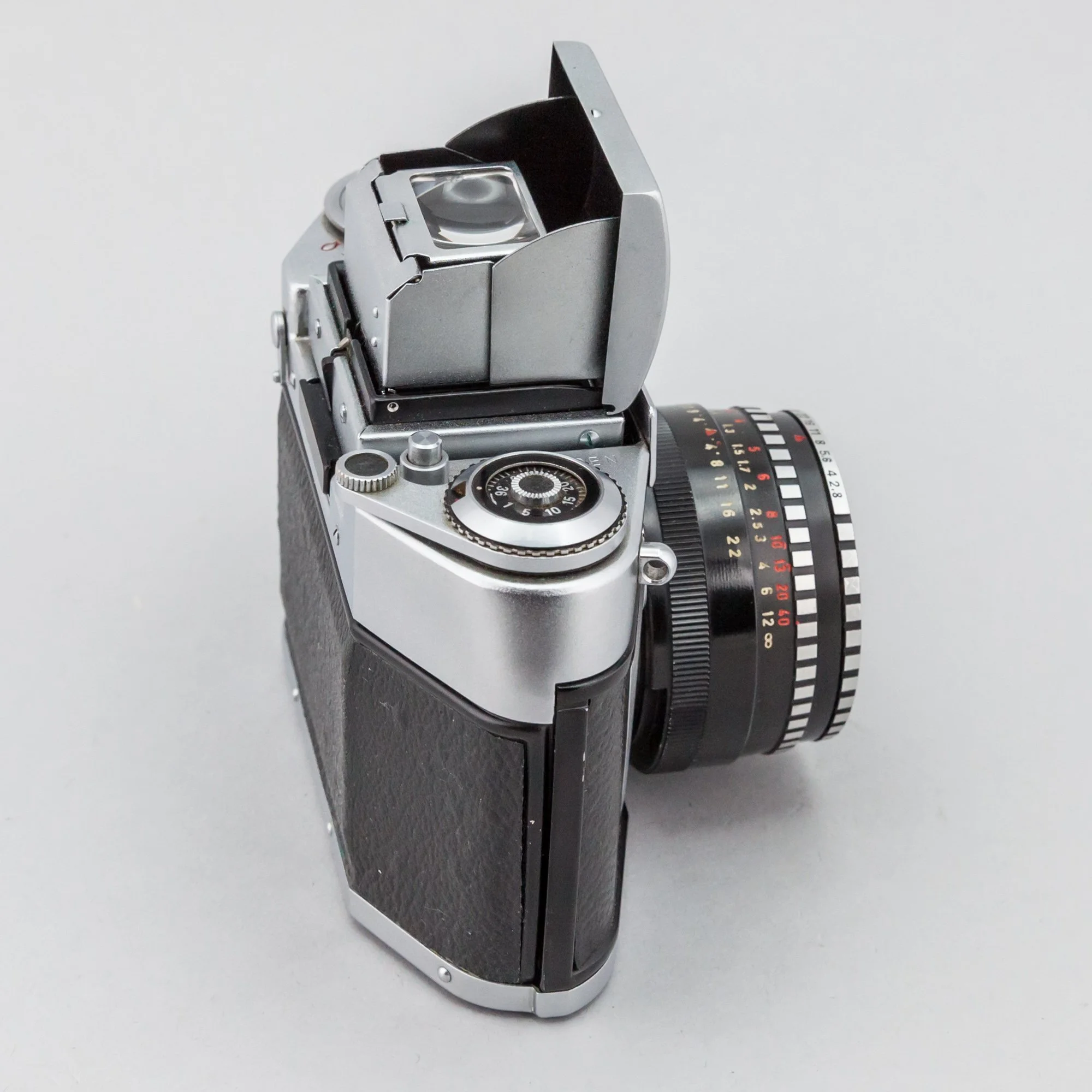

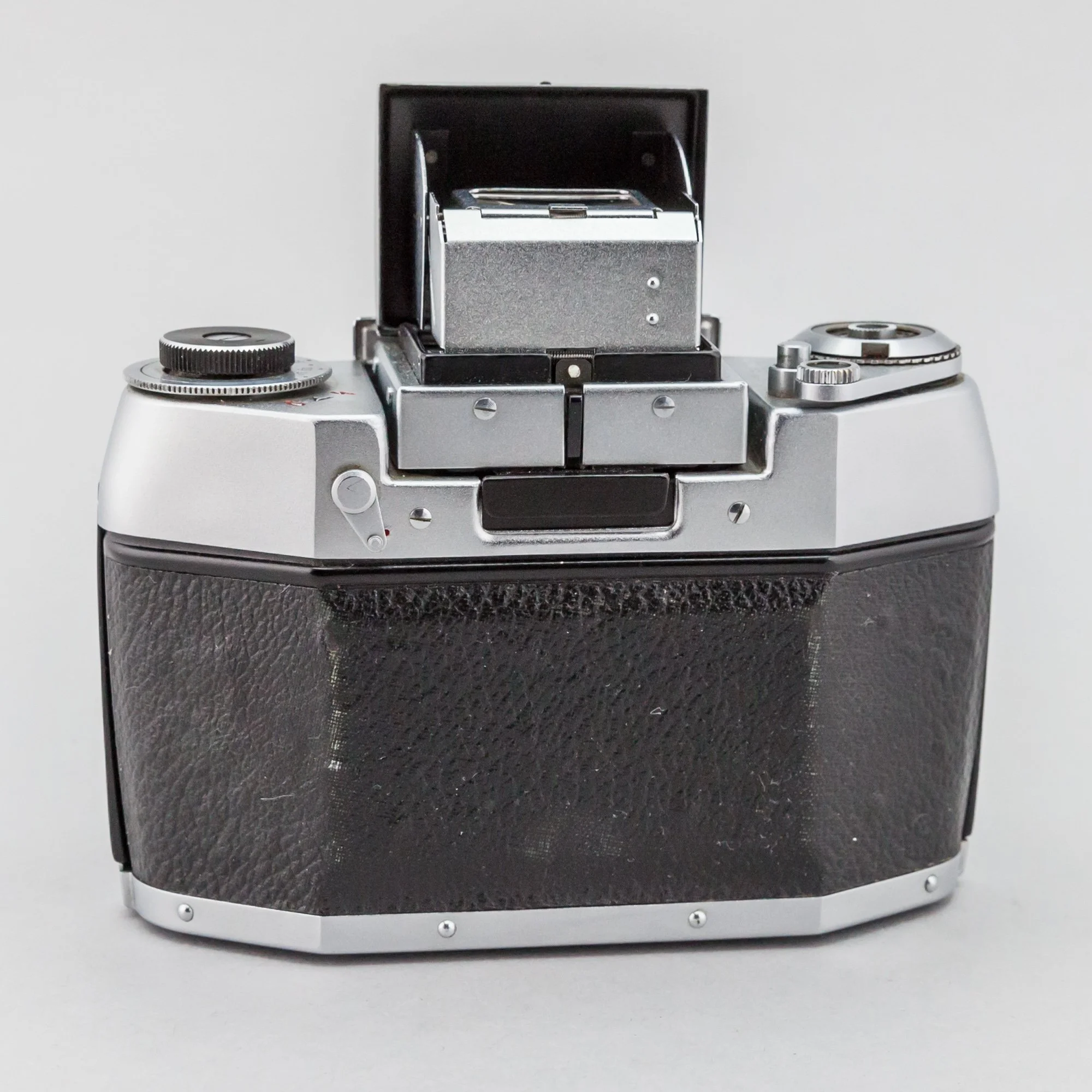

The viewfinder shows the image mirror-reversed. Full finder brightness is achieved by opening the lens's aperture. Adjusting the aperture to the appropriate value won't darken the finder image until the aperture/release lever is pressed.

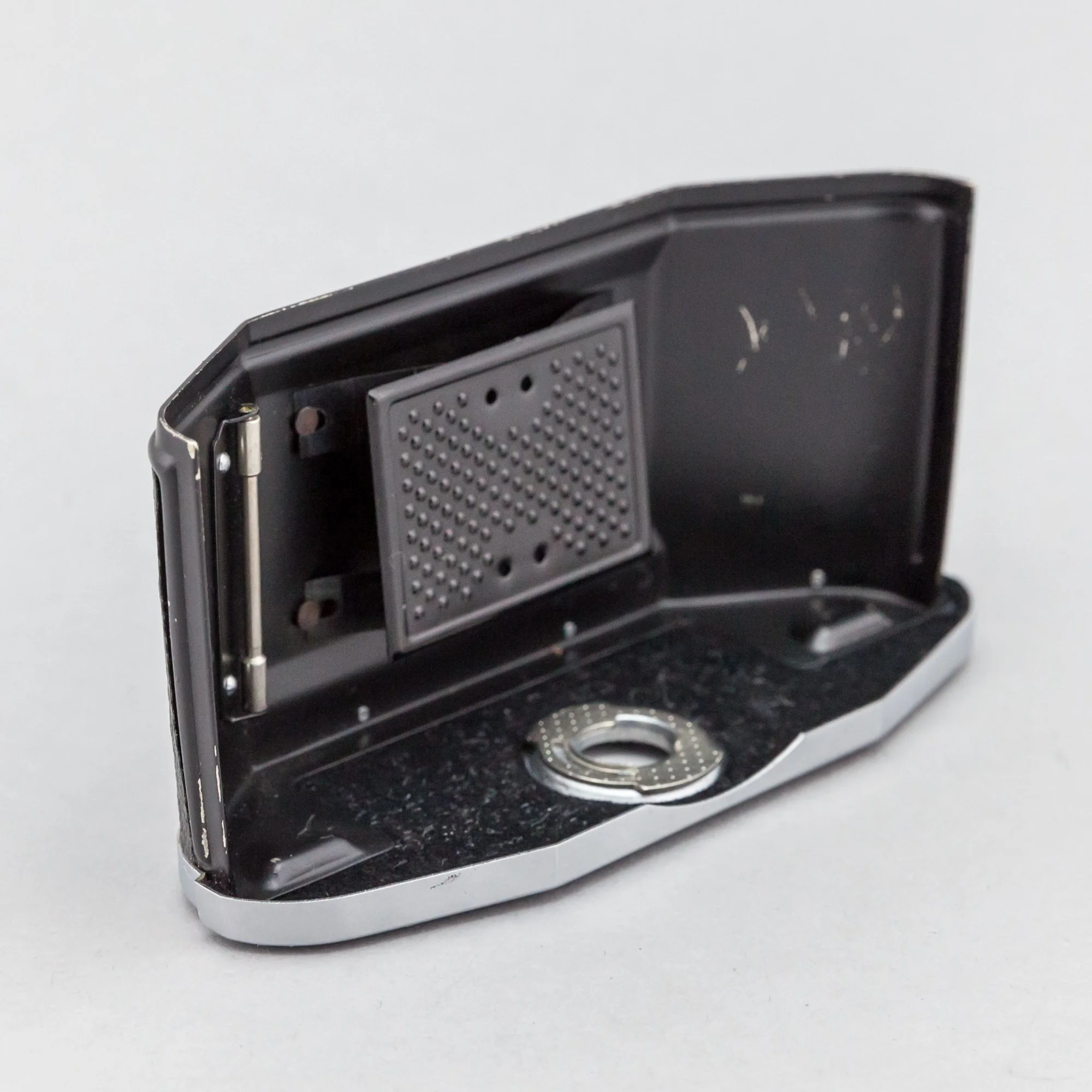

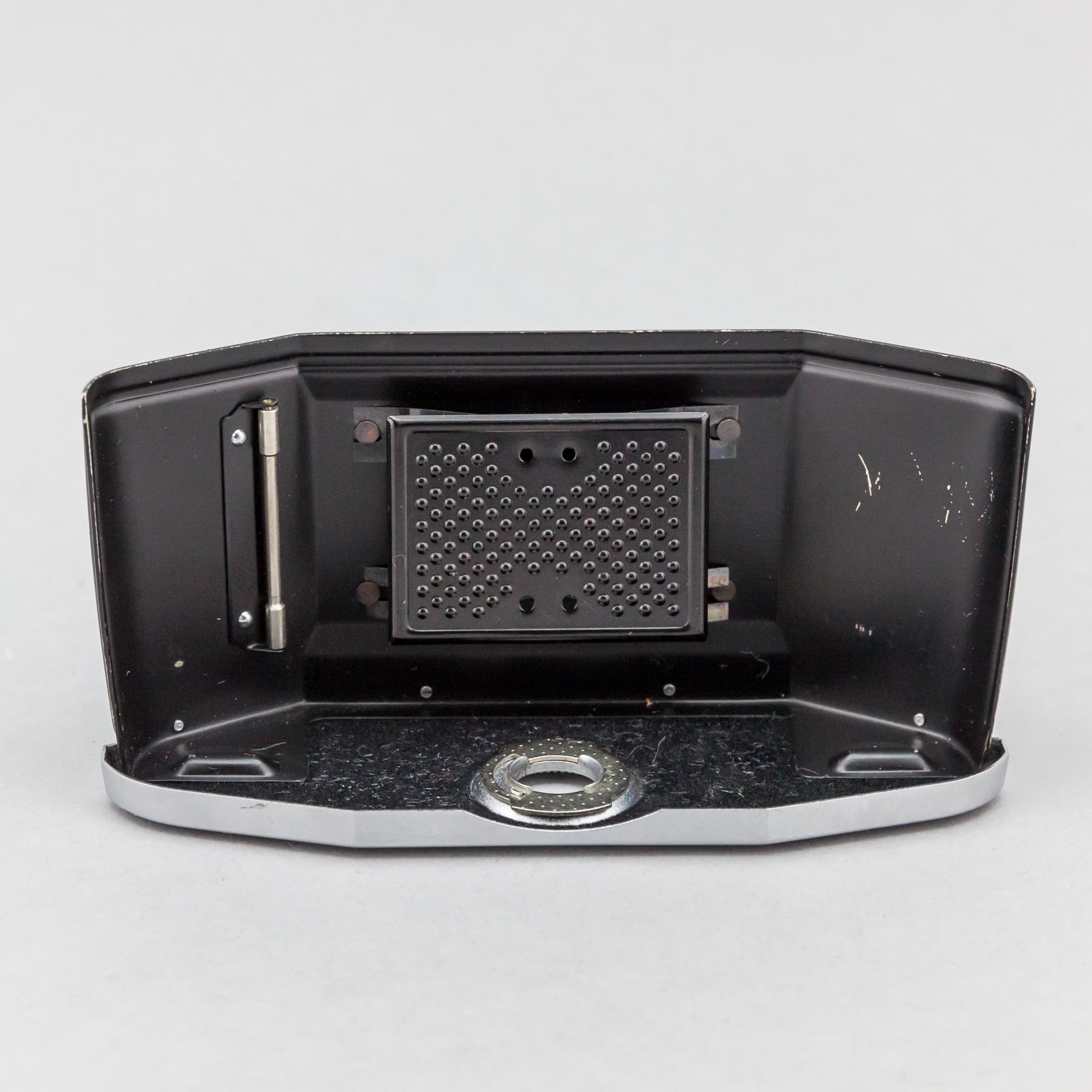

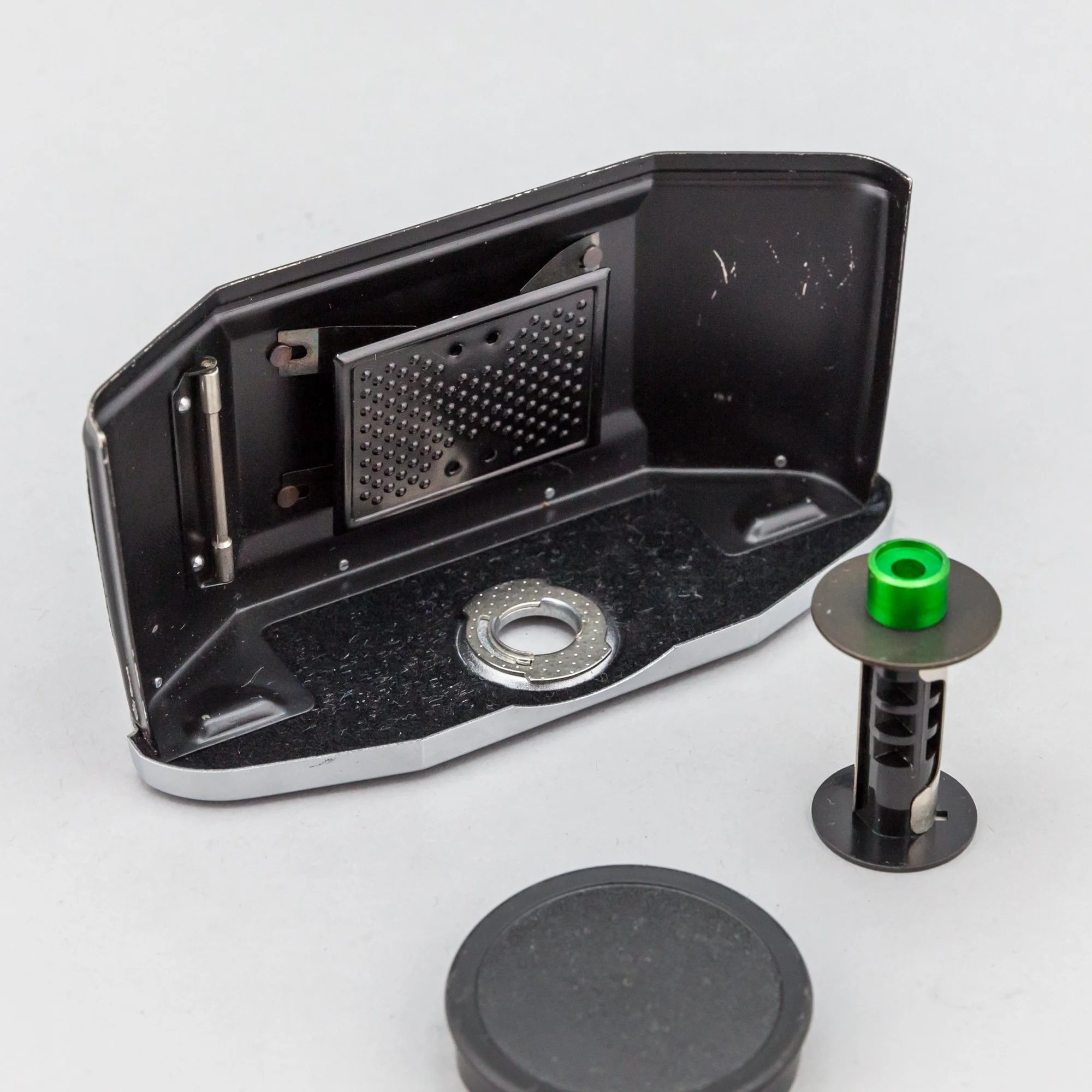

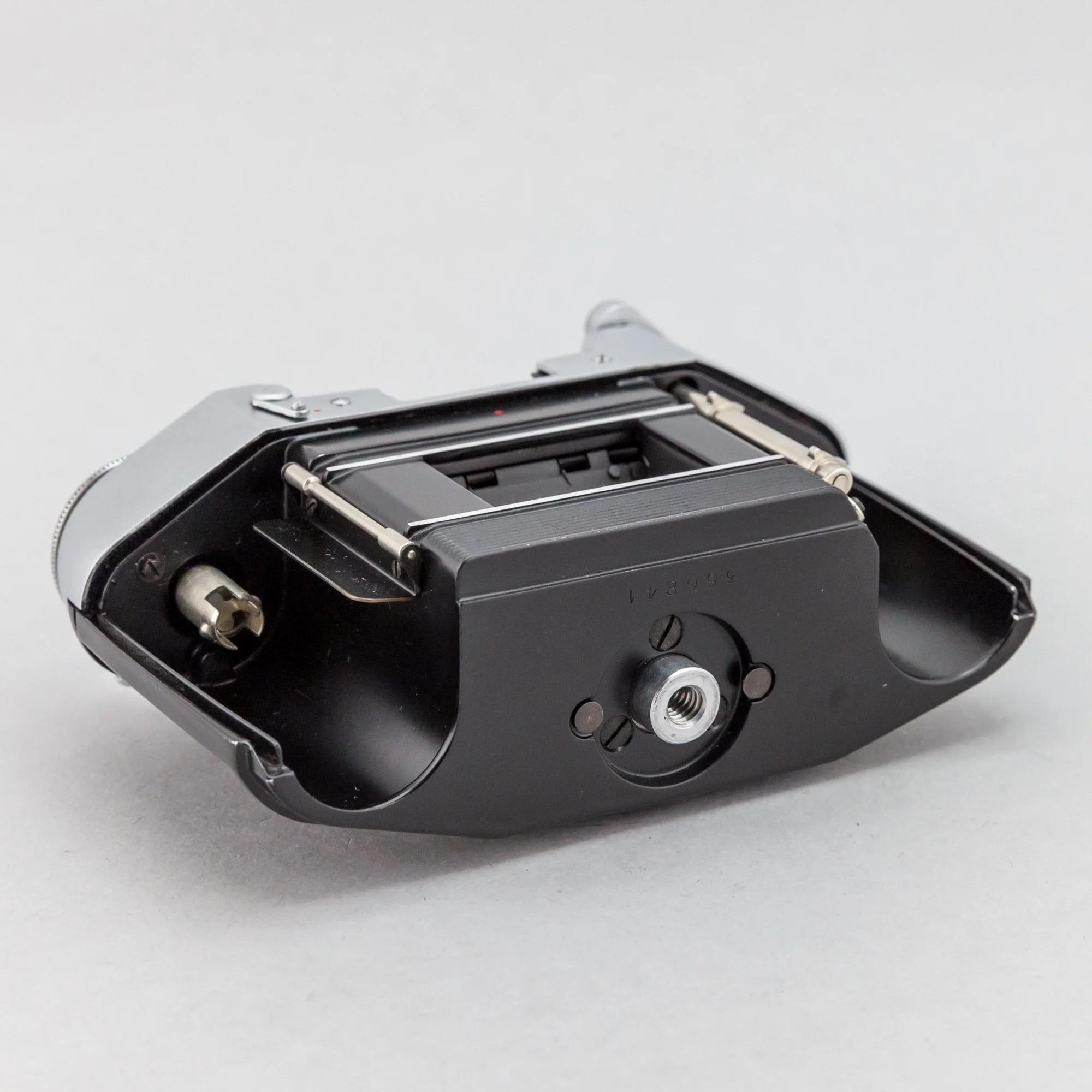

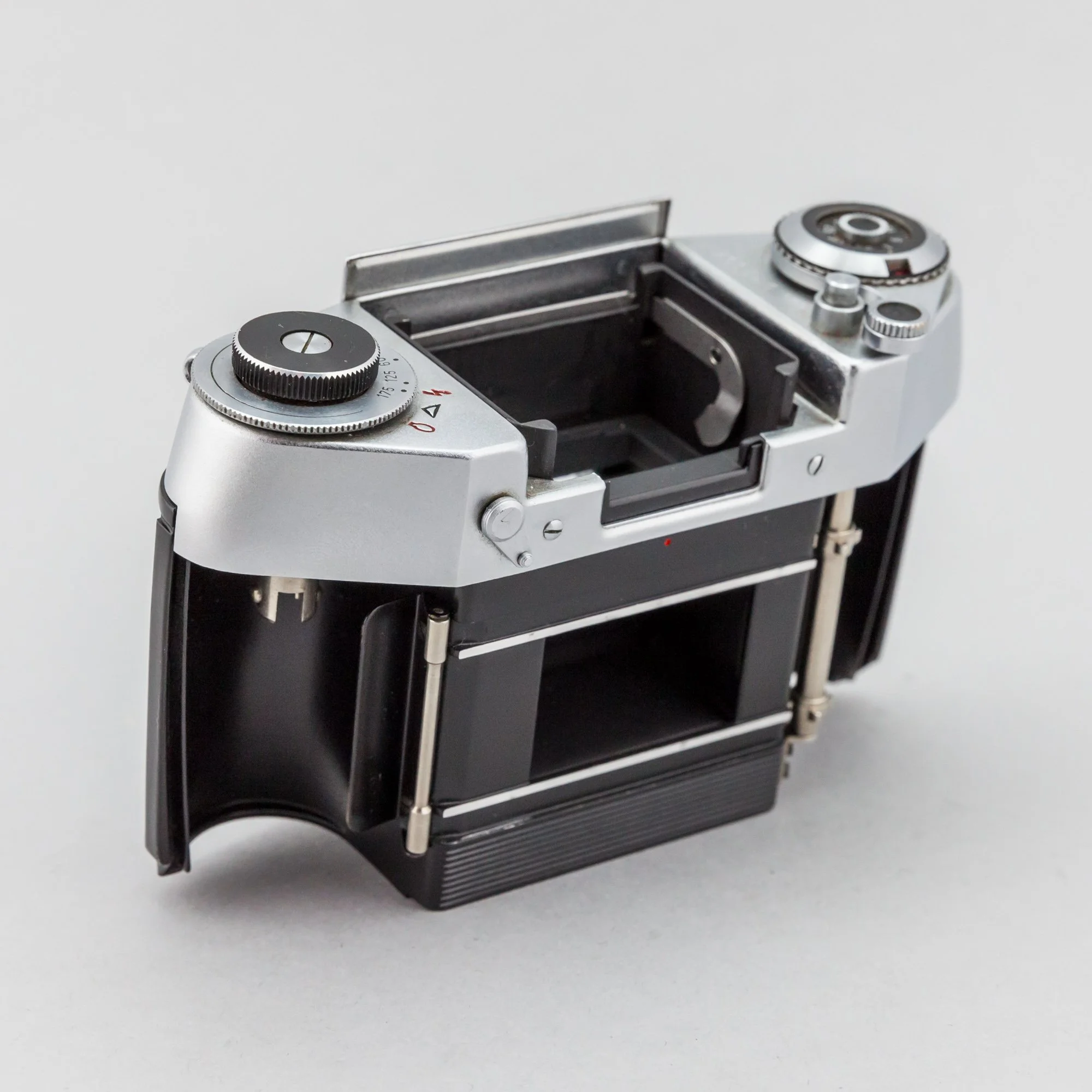

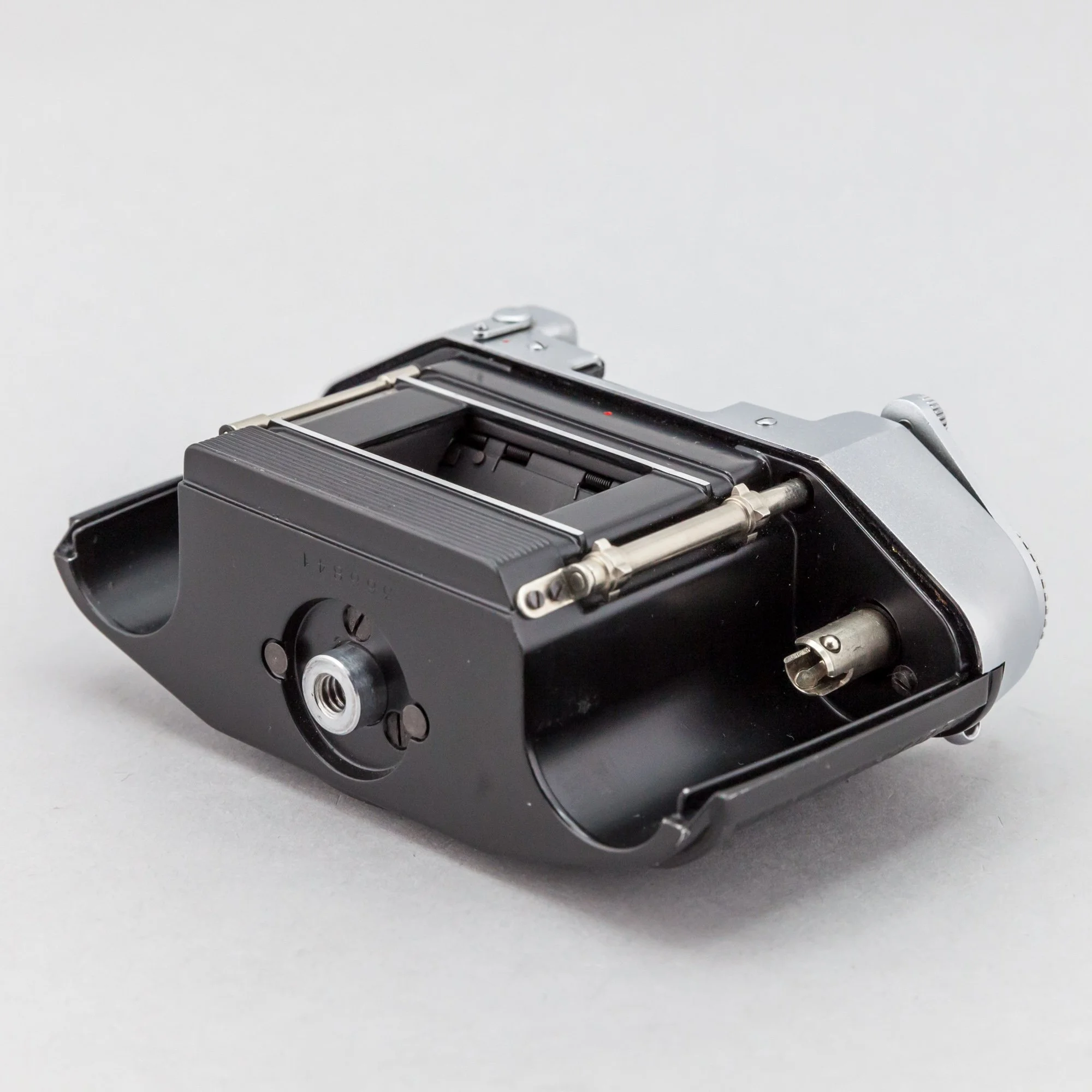

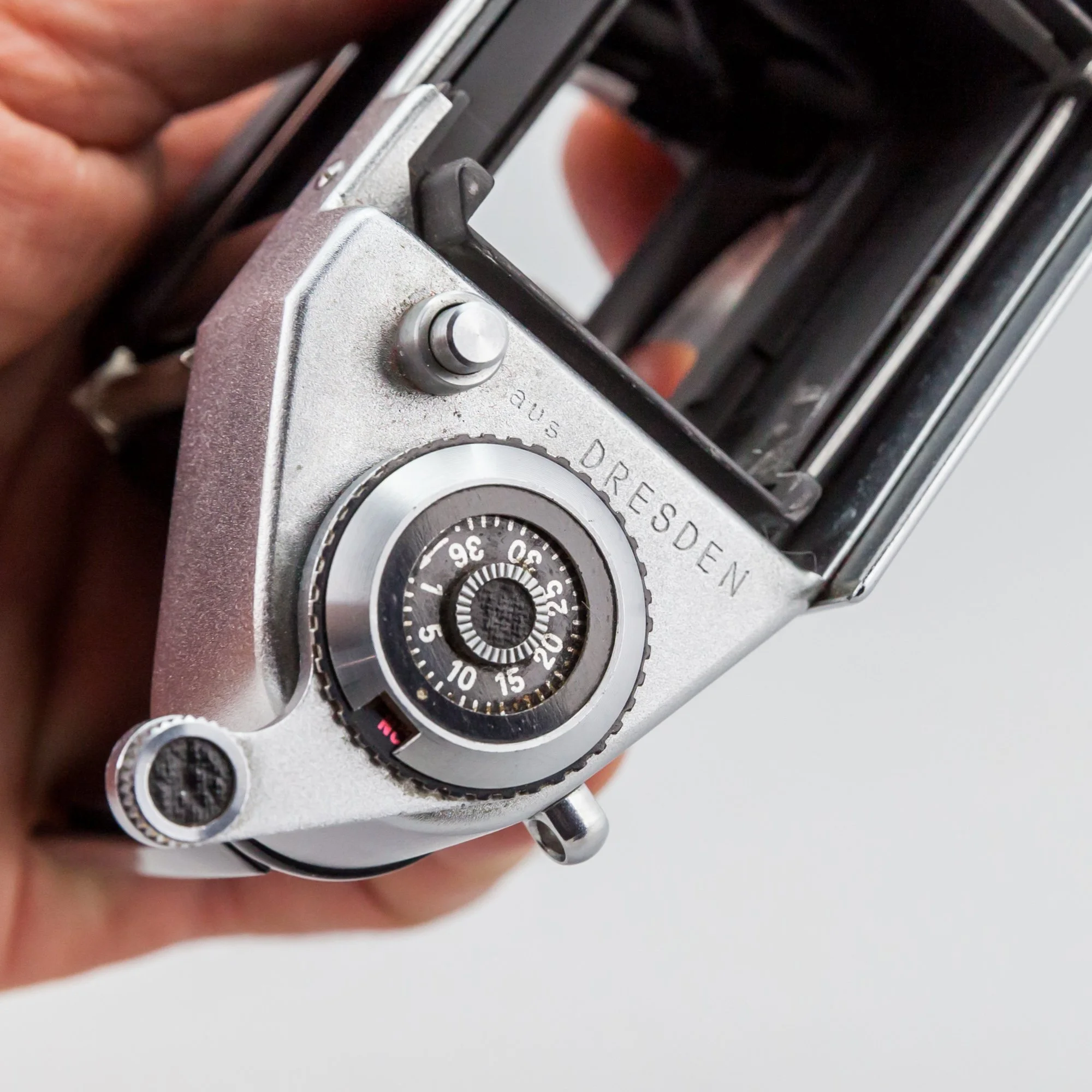

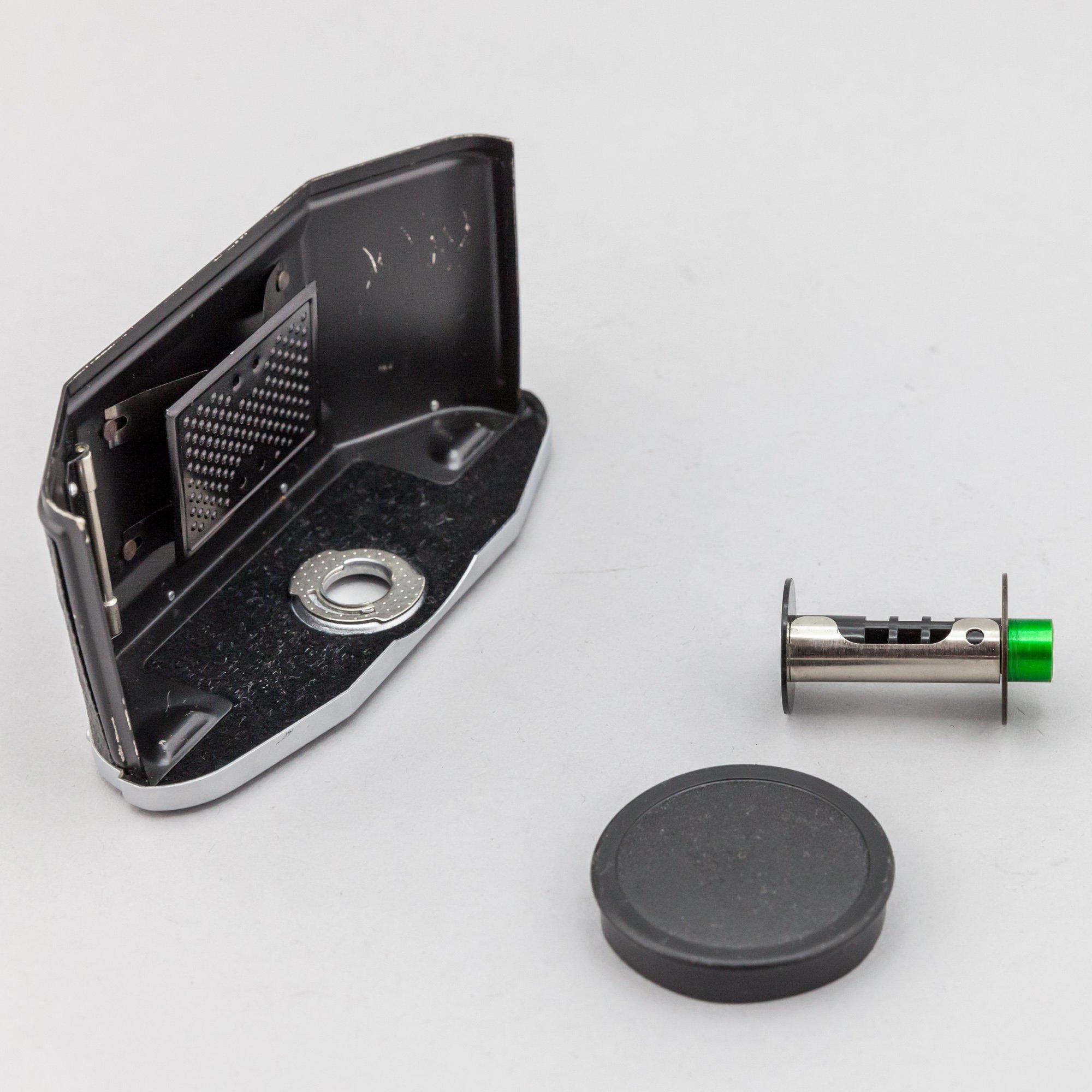

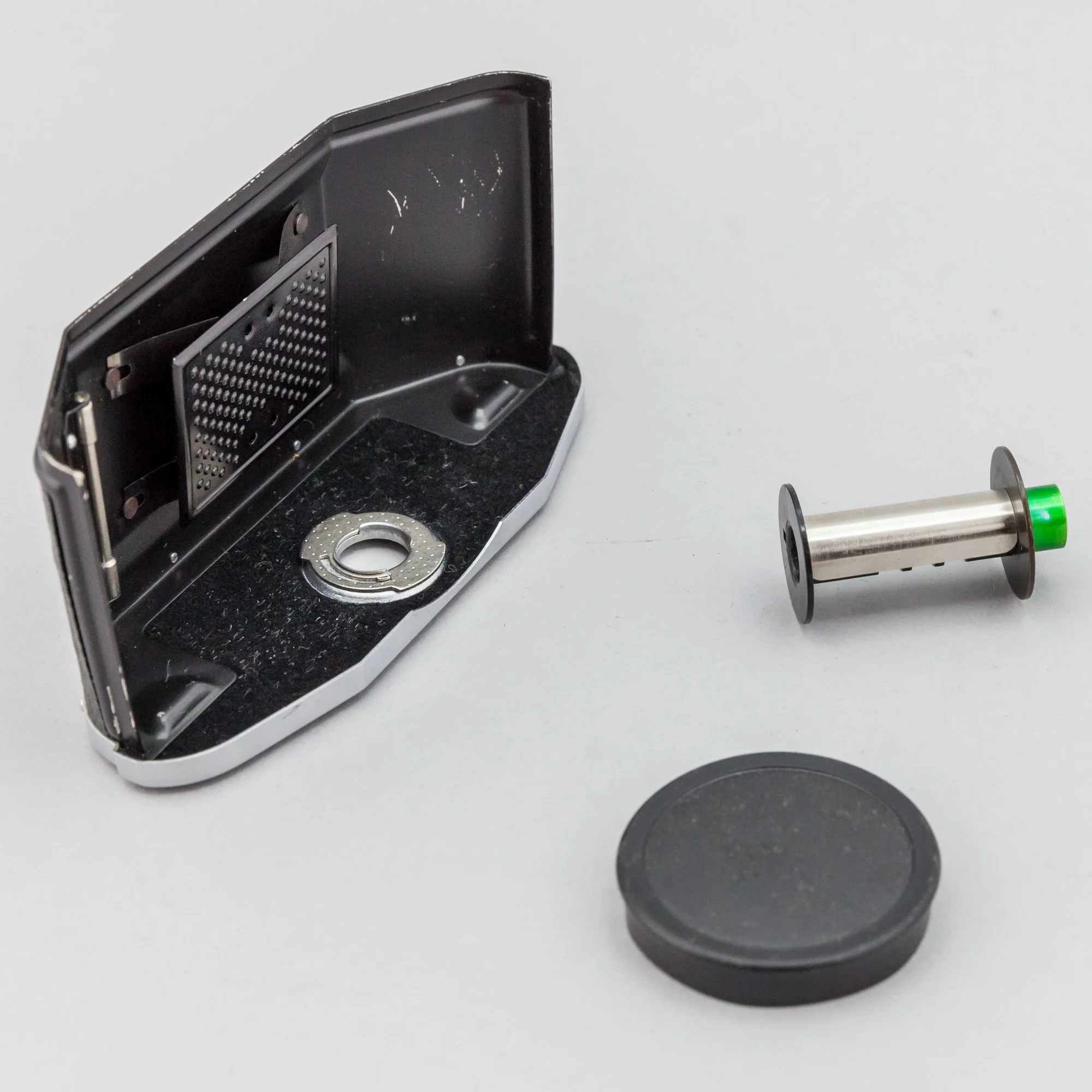

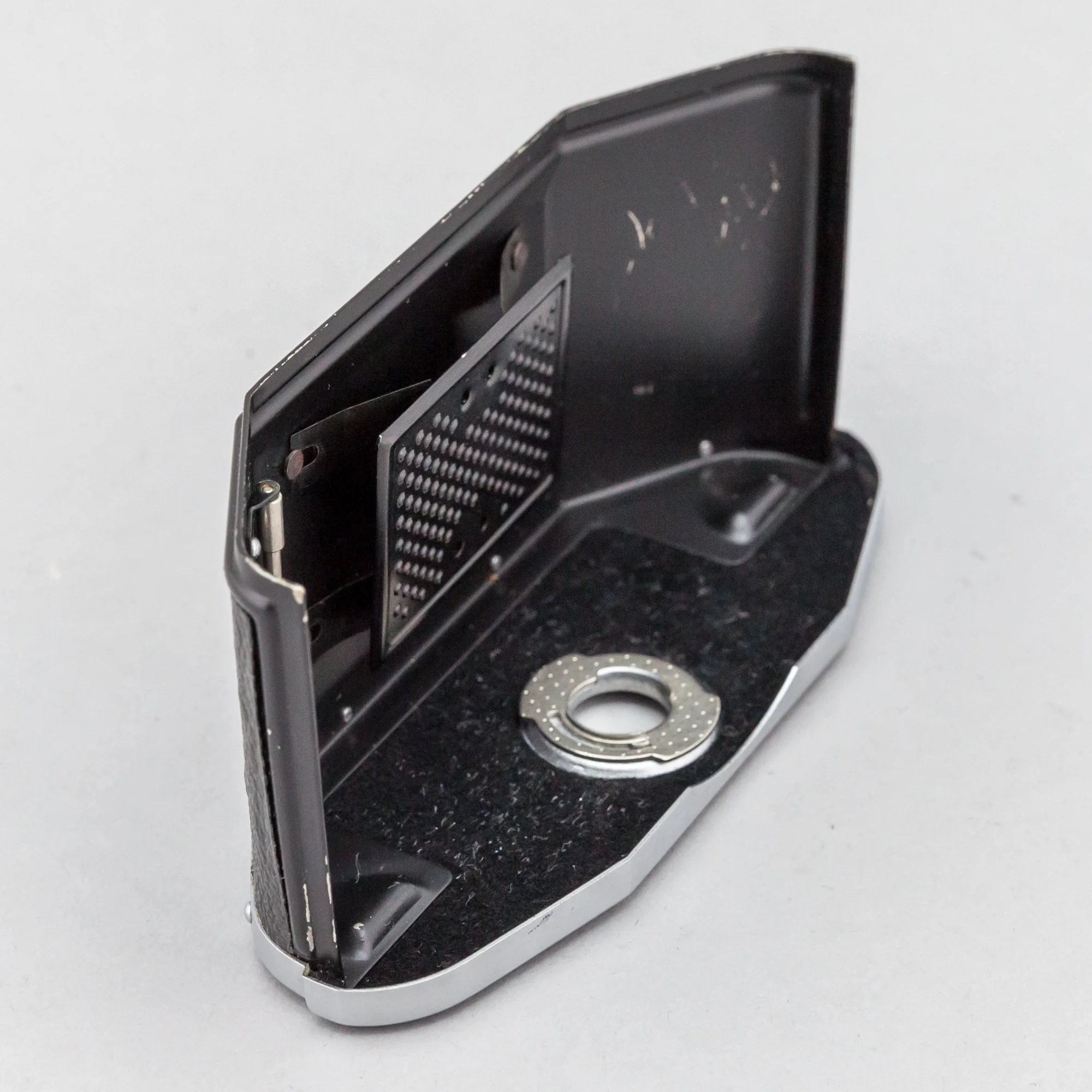

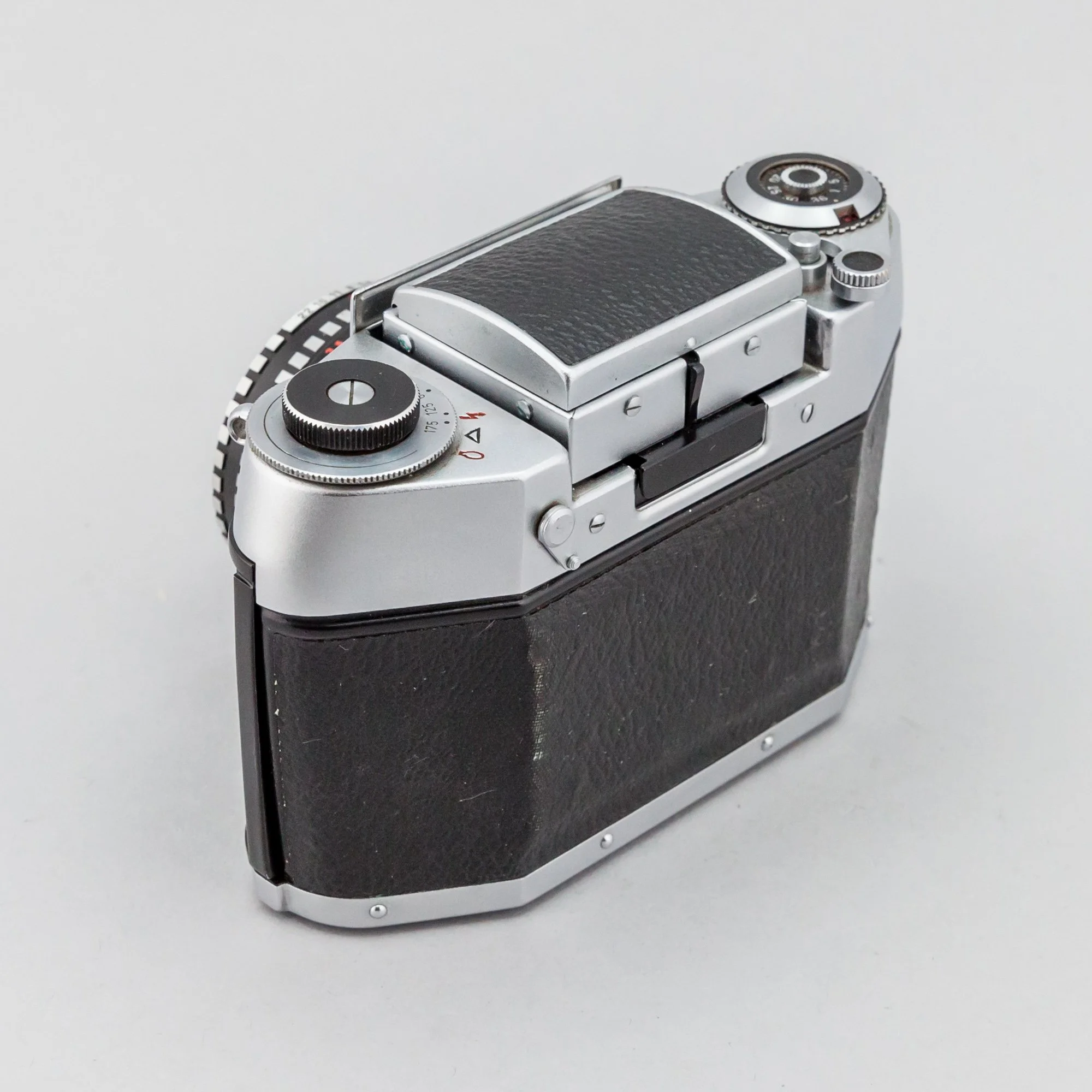

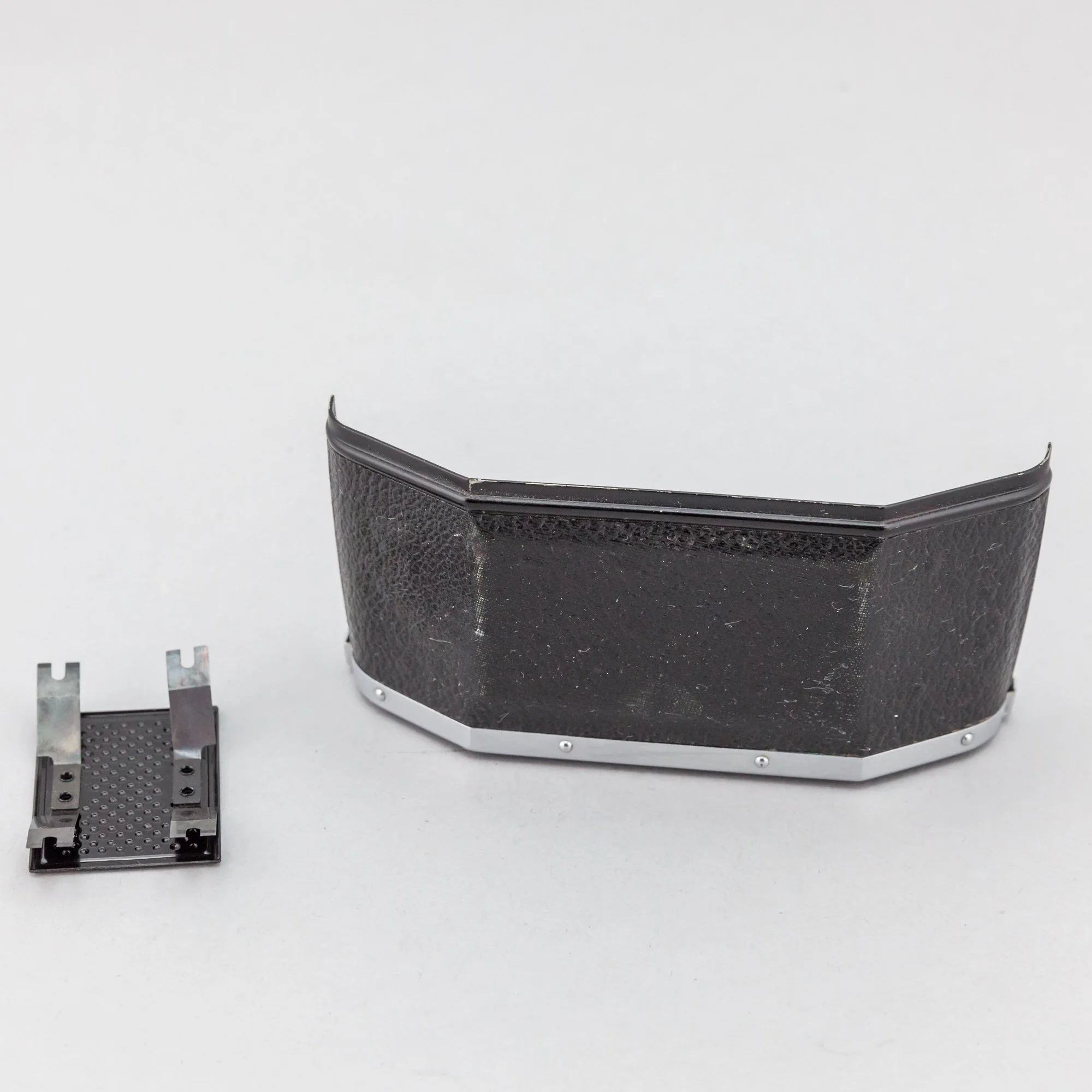

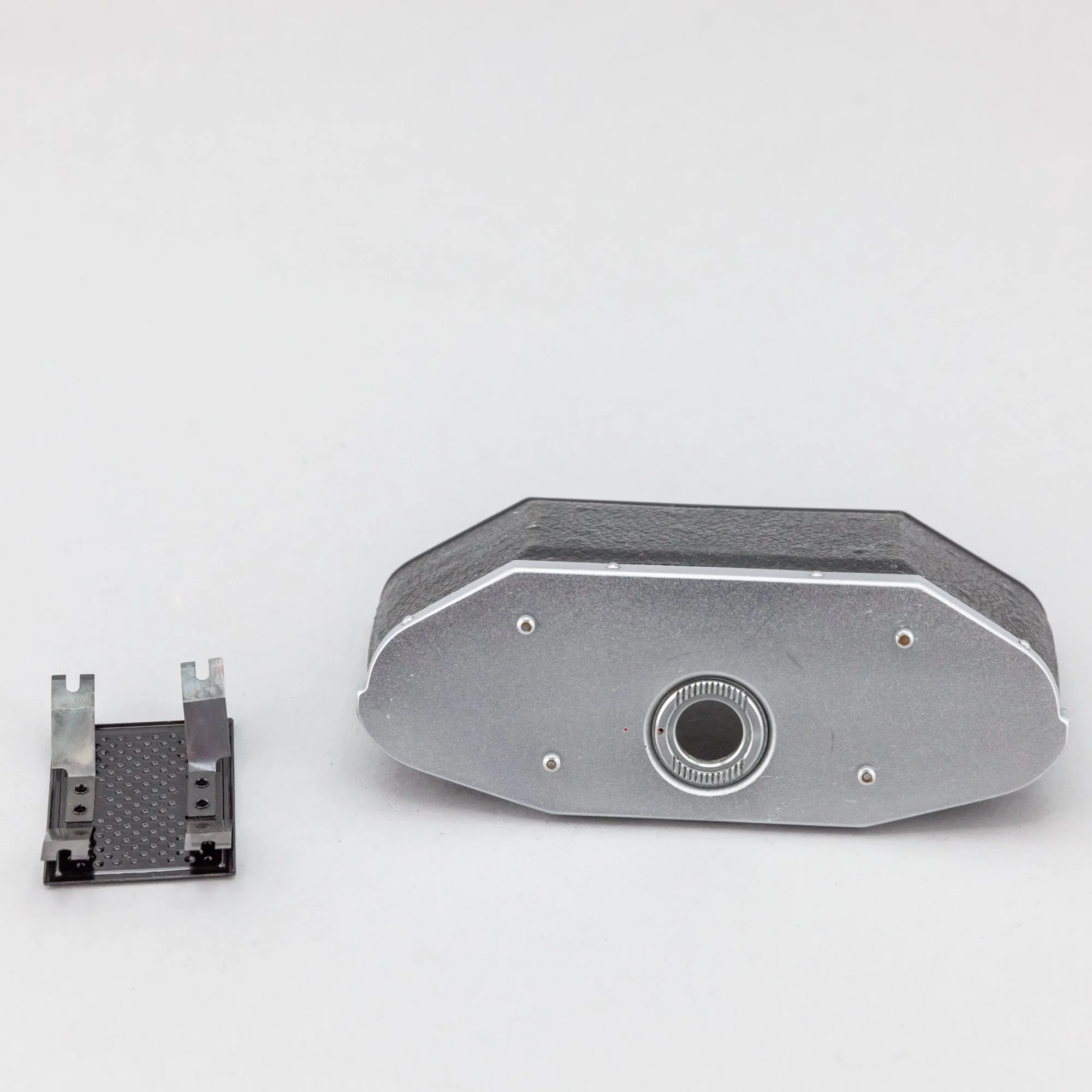

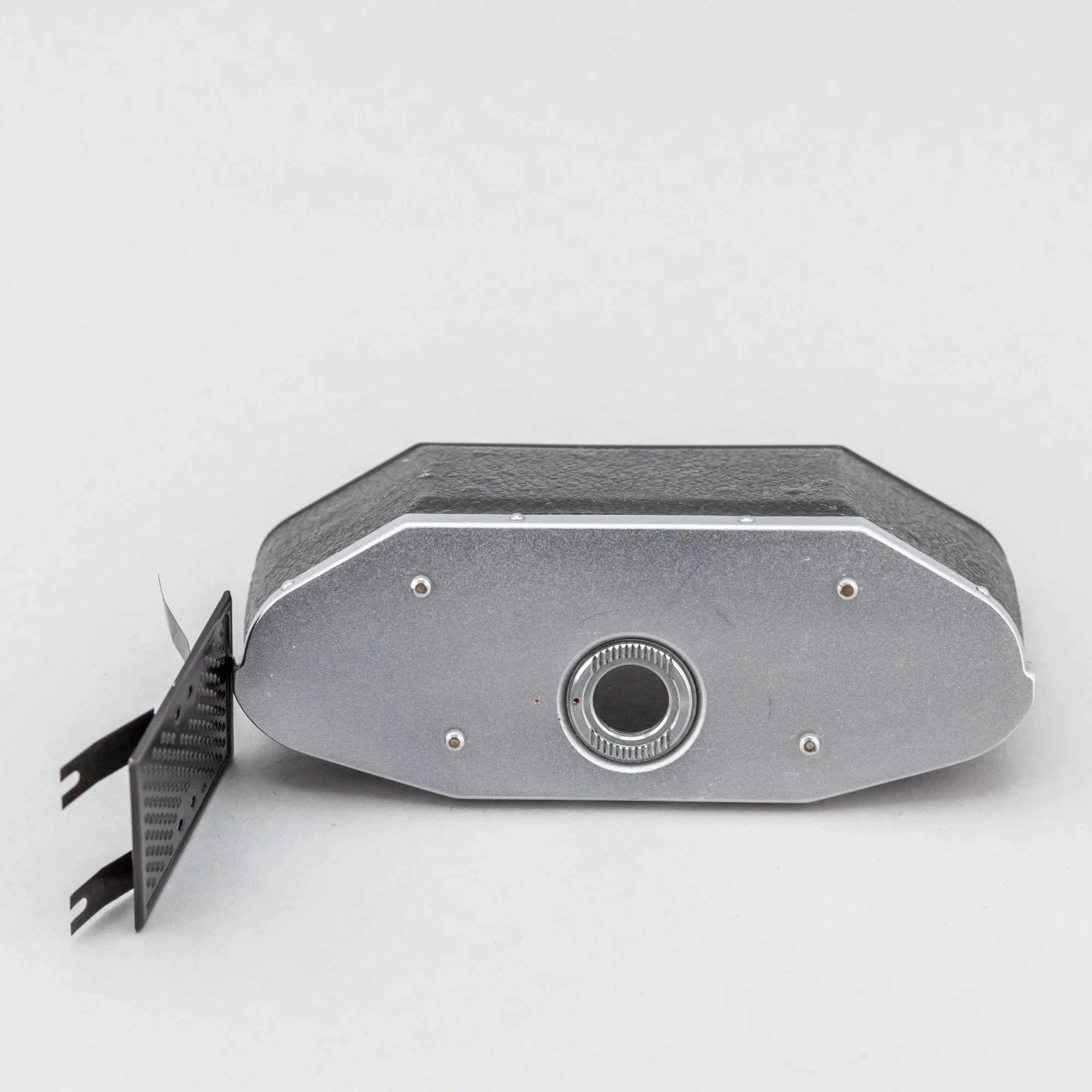

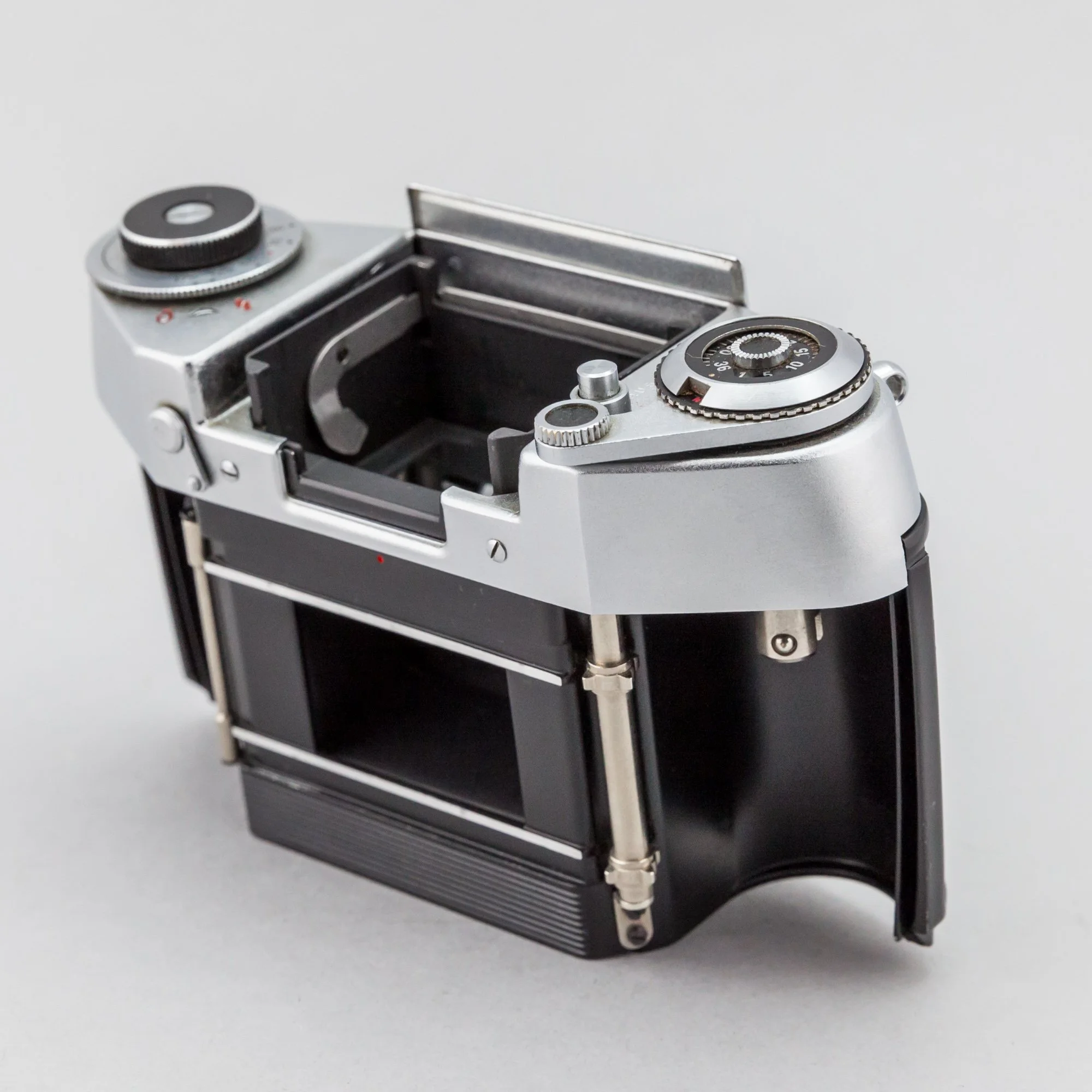

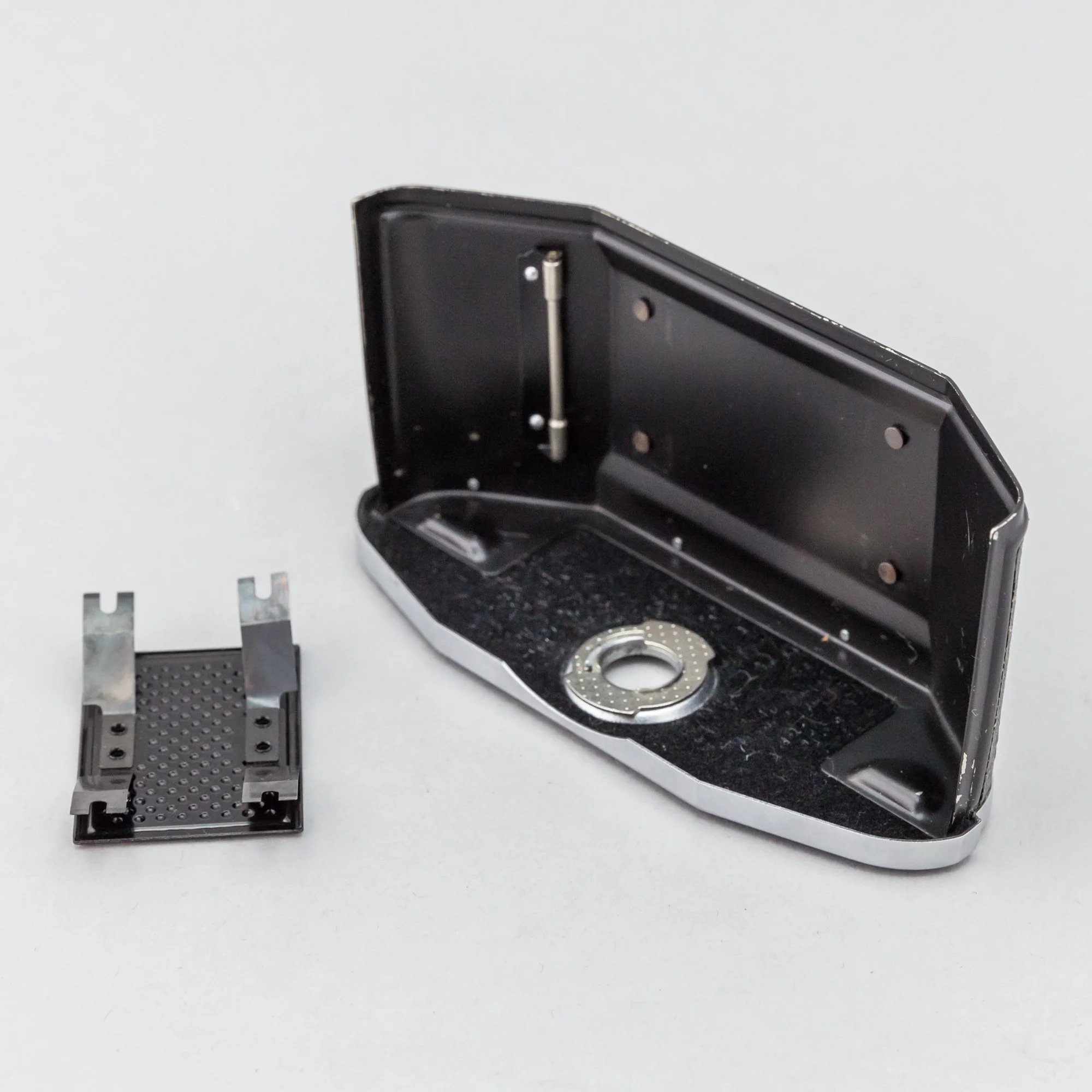

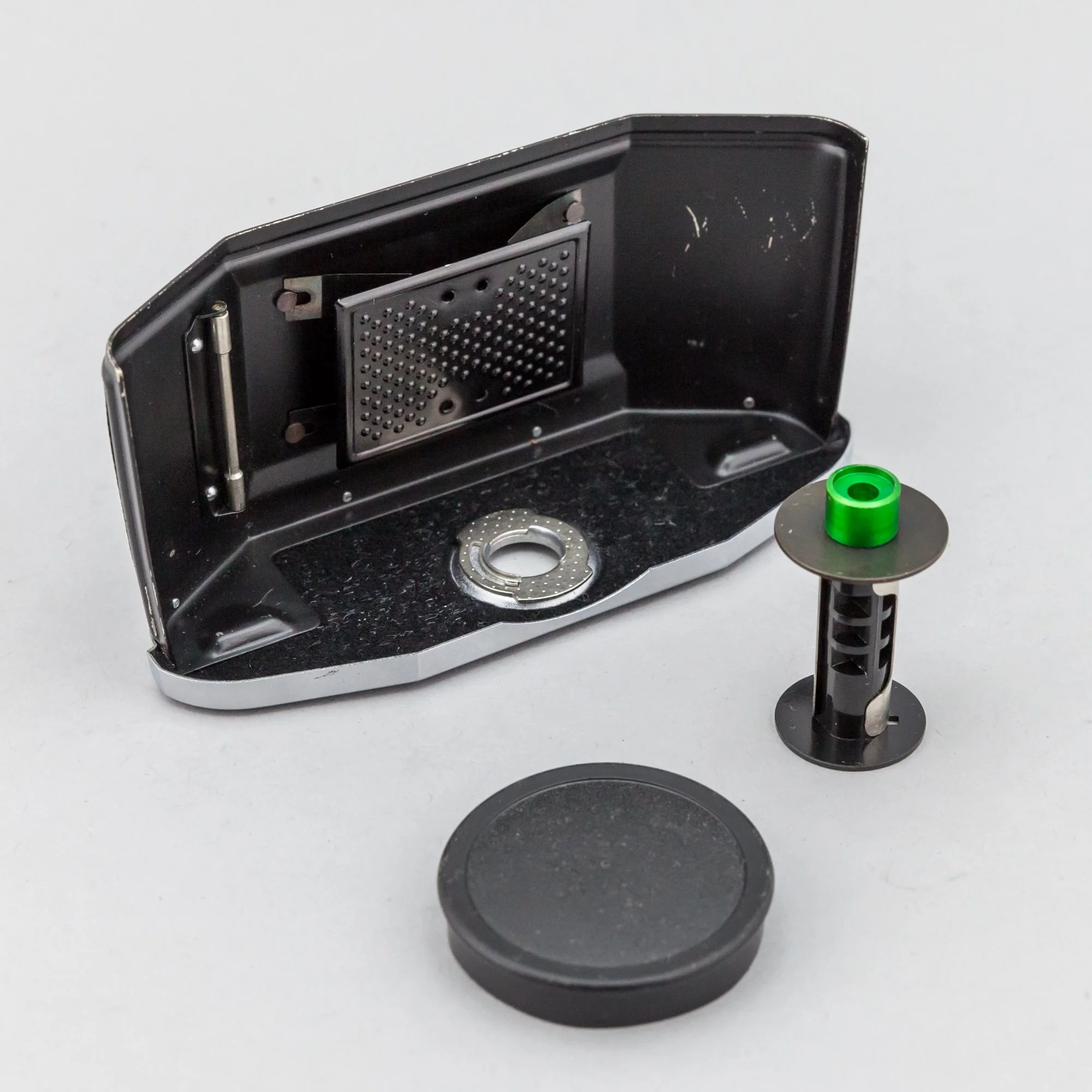

The camera has a quite short but effective film advance lever. For changing the film the camera back-and-bottom part has to be removed.

PH-02-0012 - available
